Huawei EN8012Ts-20 XGS-PON ONT terminal 1x 10GE, 1x CATV (RF), SC/APC

Huawei EN8012Ts-20 XGS-PON ONT terminal 1x 10GE, 1x CATV (RF), SC/APC

Marca: Huawei

Código de producto: HUA-EN8012TS-20

Número de catálogo: 10883

Garantía (meses):

Precio

100,33 €

123,41 € IVA incluido

favoriteAñadir a la lista de deseos

Descripción

Huawei EN8012Ts-20 is a bridge-type ONT customer terminal designed for use in XGS-PON networks. It features an SC/APC optical connector, receive sensitivity of -27 to -29 dBm, and a maximum throughput of 10 Gb/s in accordance with the standard. The ONT is equipped with 1× 10G Ethernet port and additionally with an antenna connector (RF) that supports CATV. It will work perfectly in all networks using CATV and XGS-PON, enabling the delivery of television and high-bandwidth internet to the subscriber. The offered product is a bridge-type terminal without routing support; it has all necessary functions, enables multicast transmission, and supports IGMP and MLD Snooping.

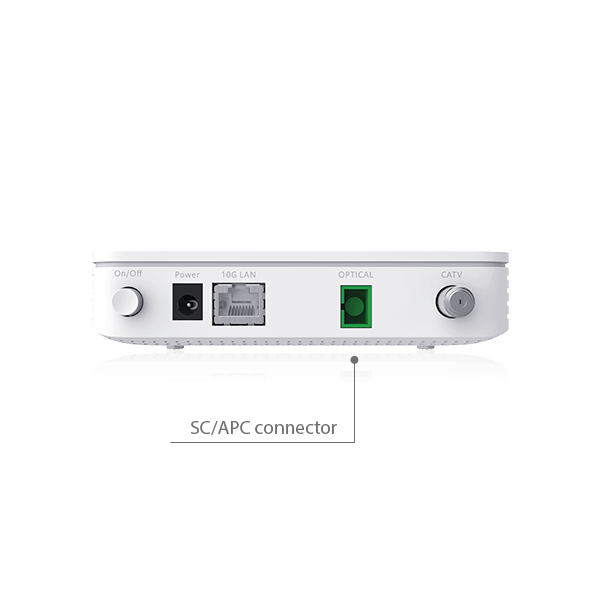

XGS-PON ONT with SC/APC connector

The offered product is a customer ONT terminal intended for use in XGS-PON networks. It features an SC/APC optical connector, and the receive sensitivity is -27 to -29 dBm. The connection throughput, according to the standard, is symmetrically 10 Gb/s for both downloading and uploading data. Transmission is carried out using wavelengths of 1260–1280 nm (upstream) and 1575–1580 nm (downstream).

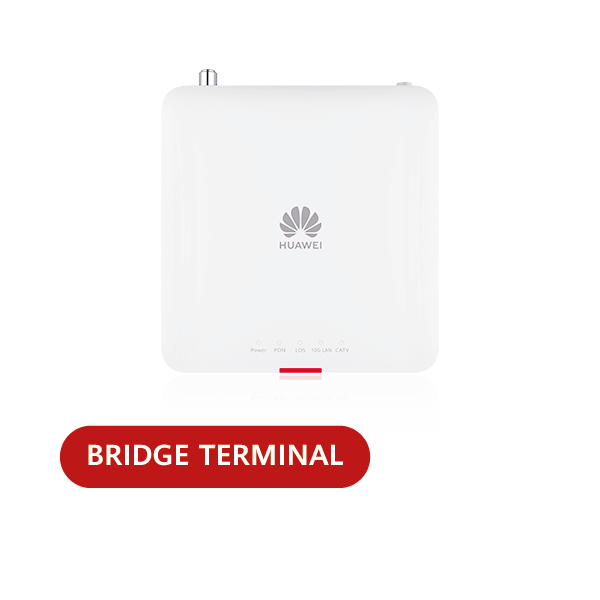

Bridge terminal

The device supports only bridge mode and does not have router functions; it is a standard, single-port ONT from Huawei. Management is possible via OMCI or through the graphical Web interface.

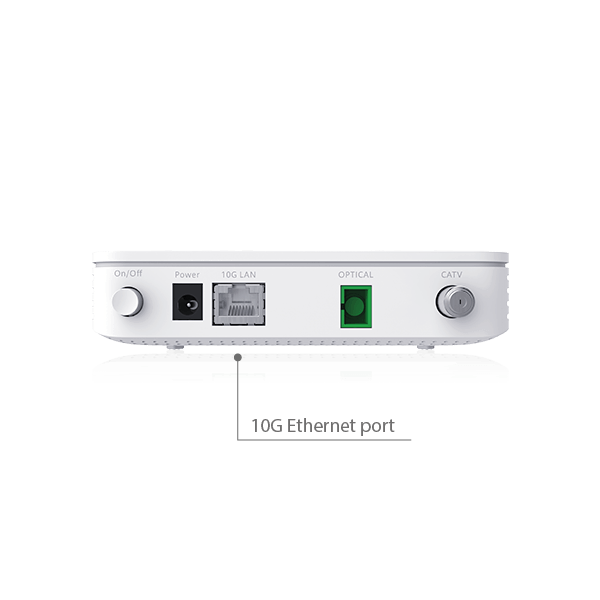

10G Ethernet port

In the ONT, the manufacturer has implemented a 10G Ethernet port, which allows full use of the bandwidth provided by the XGS-PON standard. The port supports automatic speed negotiation and can operate at 100 Mb/s, 1 Gb/s, 2.5 Gb/s, 5 Gb/s, or 10 Gb/s.

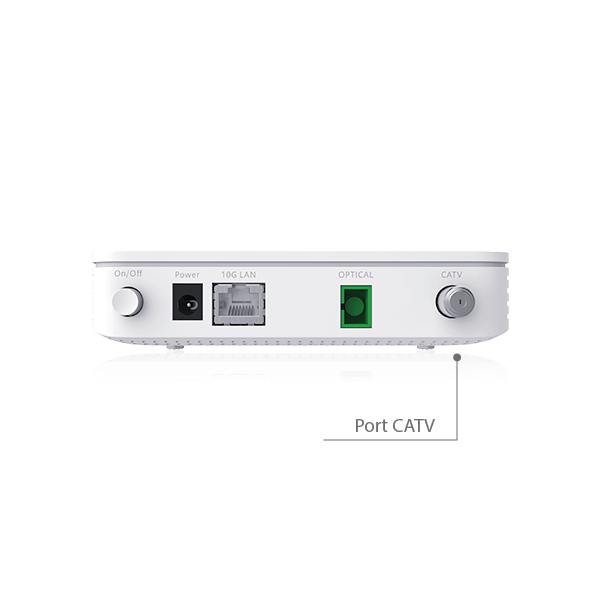

CATV port

An additional and key feature of the EN8012Ts-20 is the RF port, which can be used in CATV networks. This allows delivering television services to the customer without using IPTV.

Specifications

Device Parameters
Huawei EN8012Ts-20
Dimensions (H x W x D) (without pads)	32 mm x 135 mm x 140 mm
Weight	About 236 g
Operating temperature	0°C to 40°C
Operating humidity	5% RH to 95% RH (noncondensing)
Indicators	Power / PON / LOS / 10G LAN / CATV
System power supply	12 V DC, 1 A
Static power consumption	2.8 W
Maximum power consumption	5.5 W
NNI	XGS-PON
UNI	1x 10GE + 1x CATV
Optical connector	SC/APC
Memory	128 MB Flash 32 MB RAM
Interface Parameters
XGS-PON port	Class N1/N2/E1 Receiver sensitivity: -27 dBm ~ -29 dBm Wavelengths: 1260-1280 nm upstream, 1575-1580 nm downstream Wavelength blocking filter (WBF) Flexible mapping between GEM Port and TCONT SN/Password/SN+Password/Bi-directional authentication based on OMCI Upstream and downstream FEC SR-DBA and NSR-DBA Upstream and downstream rate: 9.953 Gbit/s upstream, 9.953 Gbit/s downstream
Ethernet port	Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning Auto-adaptive 10000Mbit/s, 5000Mbit/s, 2500Mbit/s, 1000Mbit/s, 100Mbit/s
CATV port	Frequency Range 54 MHz to 1000 MHz Output resistance 75 ohms Received average optical power: -8 dBm to +2 dBm RF output power: ≥17dBmV/Ch (With RF source analog channel power input = 20dBmV/ch, and 40 analog / 63 digital channels (4.3% OMI analog, 2.15 % digital))
Product Function
Smart O&M	Variable-length OMCI messages Rogue ONT detection and isolation from the OLT PPPoE/DHCP simulation testing
Multicast	IGMP v2/v3 snooping MLD v1/v2 snooping Fast leave VLAN tag translation, transparent transmission, and removal for downstream multicast packets IGMP/MLD protocol packet rate limitation
QoS	Ethernet port rate limitation 802.1p priority SP/WRR/SP+WRR Broadcast packet rate limitation Flow mapping based on the VLAN ID, port ID, or/and 802.1p
O&M	OMCI/Web UI Dual-system software backup and rollback 802.1ag Ethernet OAM Optical link measurement and diagnosis
Security	MAC address filtering
