Opton Fiber Distribution Box 24x SX Simplex, 20/20/8

Opton Fiber Distribution Box 24x SX Simplex, 20/20/8

Marca: Opton

Código de producto: OP-PD-24SX-20/20/8

Número de catálogo: 10907

Garantía (meses):

Precio

24,65 €

30,32 € IVA incluido

favoriteAñadir a la lista de deseos

Descripción

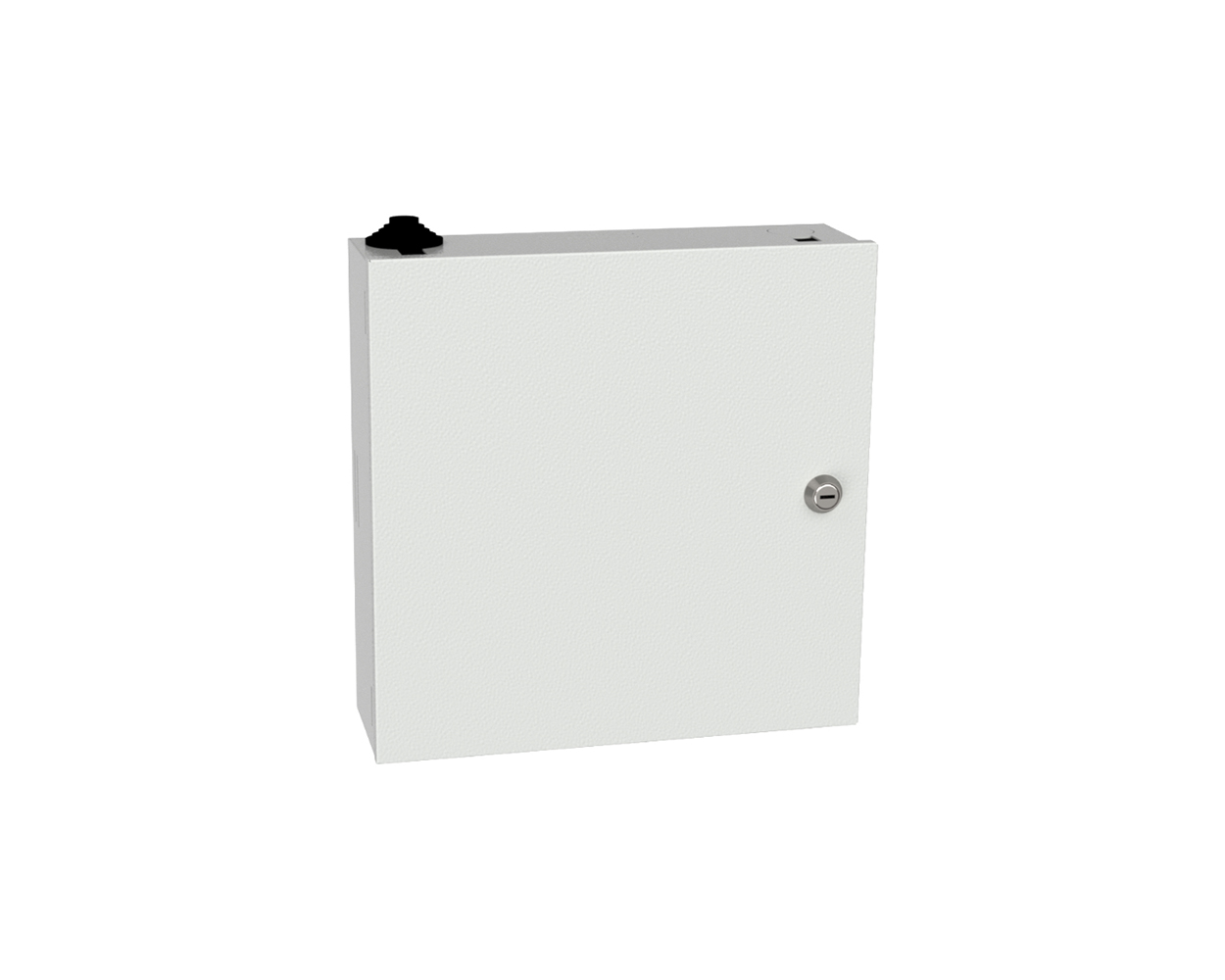

Wall-Mounted Access Distribution Box

The offered product is an access distribution box designed for wall mounting inside buildings. It is made of steel sheet coated with a Magnelis layer and painted in light gray RAL7035. The manufacturer used a solid door secured with a standard cam lock. The protection rating is IP41, and the mechanical resistance is IK10.

Frame for Mounting 24 SC Simplex Adapters

Inside the distribution box there is a module that allows the installation of a splice tray and a frame designed for connecting 24 SC Simplex / LC Duplex / E200 Simplex adapters. Integrated holders allow for securing excess cable, and perforations make it easier to fasten cabling using cable ties.

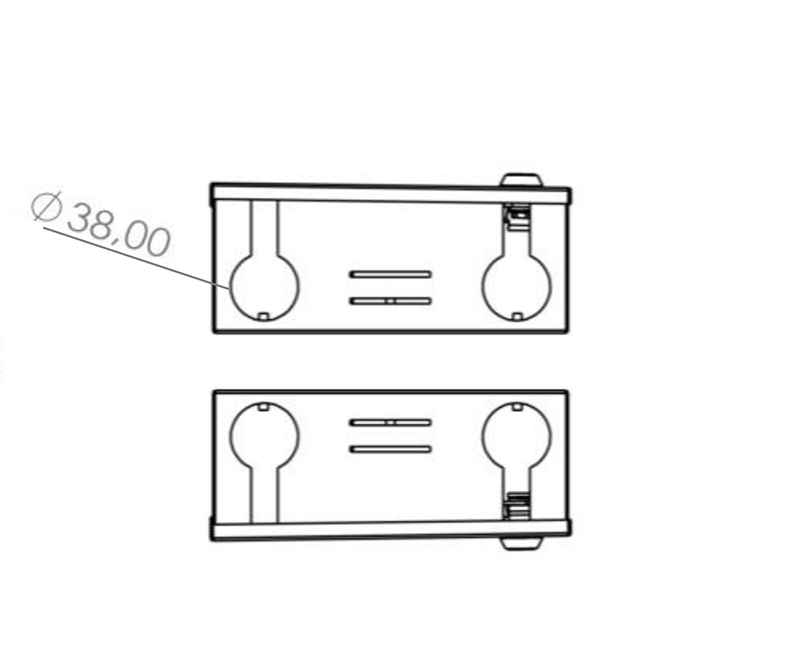

4 Cable Entry Holes

At the top and bottom there are two holes each, designed for cable entry. Thanks to this, the distribution box is perfect for multi-story buildings during vertical cable installation.

Specifications

Opton OP-PD-24SX-20/20/8
Dimensions (W x H x D)	200 x 200 x 80 mm
Number of adapter slots	24
Compatible adapters	SC Simplex, E2000 Simplex, LC Duplex
Recommended pigtail length	2 - 2.5 mm
Cable entry type	Rubber grommet
Cable entry diameter	38 mm
Number of cable entries	4 (2x top, 2x bottom)
Mid-span cable installation (mid-span splicing)	Yes
FRP strength member holde	Yes
Mounting type	Indoor, wall-mounted
Operating temperature range	-40°C to 70°C
Protection rating	IP41
Mechanical resistance	IK10
Flammability rating	V0 according to UL 94
Weight	1.3 kg
Construction	Steel sheet coated with Magnelis layer, powder-coated
Color	Light gray RAL7035
