Huawei HG8010N-10 GPON ONT terminal 1x 2.5GE

Huawei HG8010N-10 GPON ONT terminal 1x 2.5GE

Marca: Huawei

Código de producto: HUA-HG8010N-10

Número de catálogo: 10724

Garantía (meses):

Official distribution, 24 months warranty.

We ship this product only to European Union countries and Switzerland!

Precio

37,98 €

46,72 € IVA incluido

favoriteAñadir a la lista de deseos

Descripción

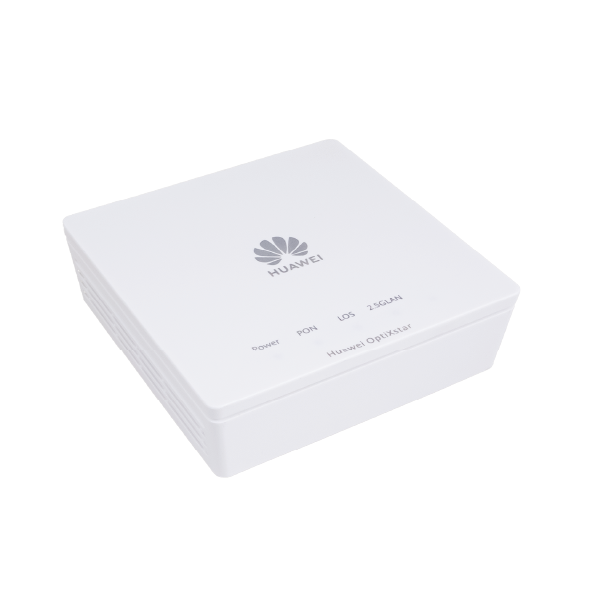

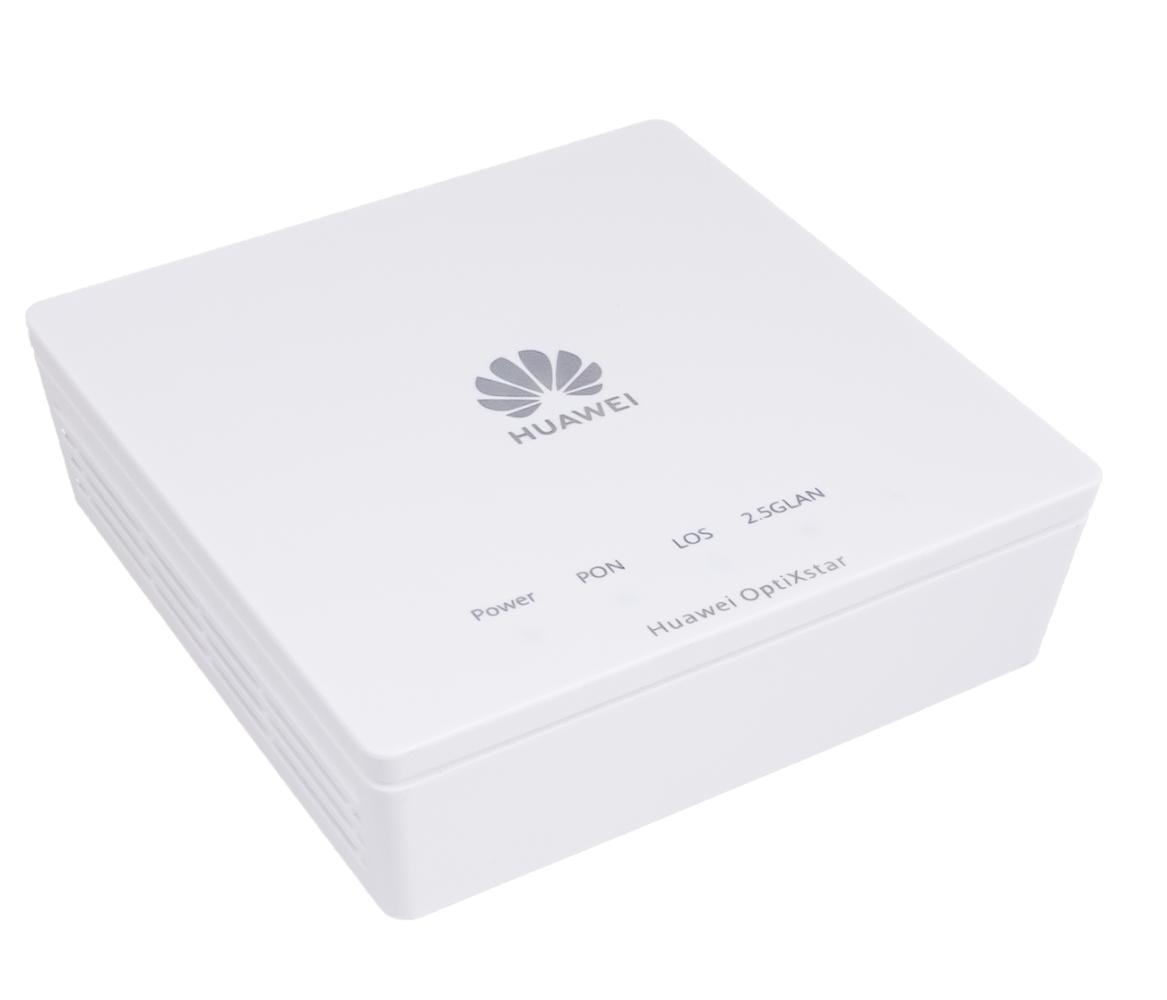

The Huawei HG8010N-10 is a bridge-type ONT client terminal equipped with one 2.5G Ethernet port. Designed for use in GPON networks, it features an SC/APC optical port with a Class B+ laser. The most significant feature of the HG8010N-10 is its 2.5 Gb/s Ethernet port (10/100/1000/2500), which allows operators to offer subscribers data packages exceeding 1 Gb/s. This also enables full utilization of the bandwidth provided by the GPON standard (2.5 Gb/s downstream / 1.25 Gb/s upstream). This product is a bridge terminal without routing functions, featuring all necessary capabilities such as multicast transmission support, IGMP, and MLD Snooping.

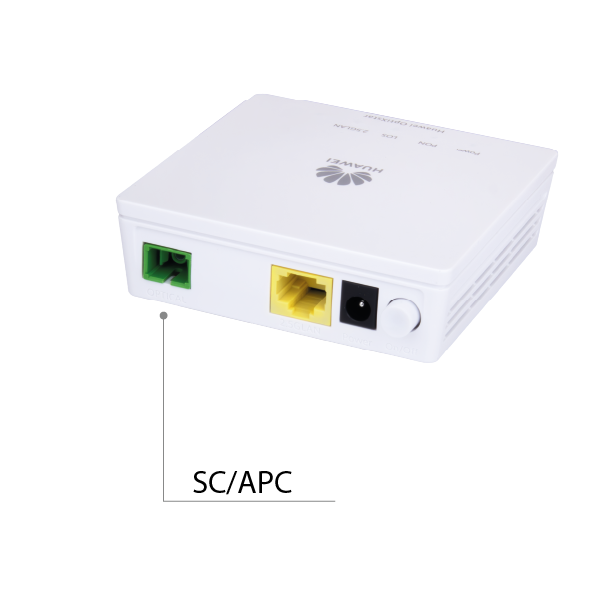

GPON ONT with SC/APC Connector

This ONT client terminal is designed for GPON networks. The device features an SC/APC optical connector with a Class B+ laser and a receiver sensitivity of -27 dBm. Transmission is conducted according to the standard using 1310 nm (upstream) and 1490 nm (downstream) wavelengths. The HG8010N-10 supports authentication via Serial Number (SN) or password.

Bridge Terminal

The device operates in bridge mode and does not include router functions, serving as a standard single-port ONT. It fully supports multicast transmission, including IGMP and MLD Snooping as well as Fast Leave. It features QoS functionality, MAC address filtering, and can be managed via OMCI or a graphical Web UI.

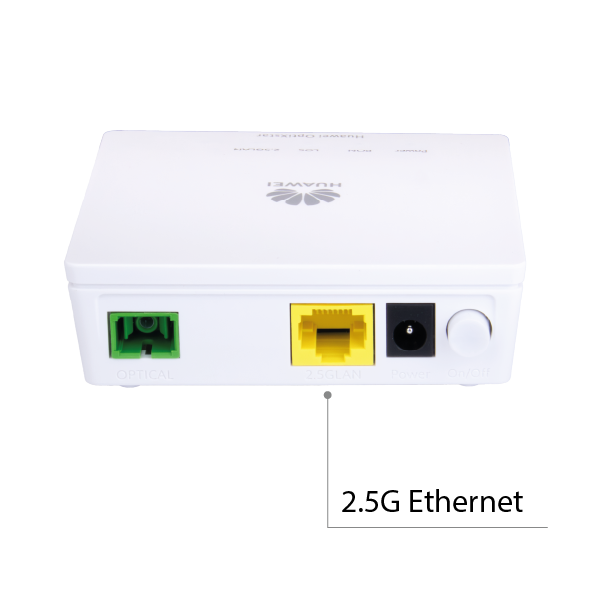

2.5G Ethernet Port

The primary advantage of the HG8010N-10 is the 2.5G Ethernet port, which allows you to take full advantage of the capabilities offered by the GPON standard. This enables you to provide subscribers with packages over 1 Gb/s without the immediate need to switch to XG-PON/XGS-PON standards. The Ethernet port supports auto-negotiation for 10/100/1000/2500 Mb/s speeds.

Specification

Device Characteristics
Huawei HG8010N-10
Dimensions	26 mm x 88 mm x 88 mm
Weight	Approx. 90 g
Operating Temperature	0°C to 40°C
Operating Humidity	5%-95% RH non-condensing
Memory	128 MB Flash 128 MB RAM
Optical Connector	SC/APC
Power Adapter Input Voltage	100–240 V AC, 50/60 Hz
Power Adapter Output	12 V DC, 1 A
Static Power Consumption	4.3 W
Maximum Power Consumption	5 W
NNI	GPON
UNI	2.5GE
LED Indicators	POWER / PON / LOS / 2.5GLAN
Interface Characteristics
GPON Port	Class B+ Receiver sensitivity: -27 dBm Wavelengths: 1310 nm (upstream) / 1490 nm (downstream) WBF (Wavelength blocking filter) Mapping between GEM Port and TCONT Authentication via SN or password (G.984.3) Bi-directional FEC SR-DBA and NSR-DBA
Ethernet Port	VLAN tag stripping and tagging based on port 1:1 VLAN, N:1 VLAN, transparent VLAN QinQ VLAN MAC address learning limit MAC address learning Transparent transmission of IPv6 packets at Layer 2 2.5G Ethernet, supports: 10 / 100 / 1000 / 2500 Mb/s, auto-negotiation
Software Features
Smart O&M	Variable-length OMCI messages Active and passive detection and isolation of rogue ONTs PPPoE / DHCP simulation and testing
QoS	Ethernet bandwidth limit 802.1p priority SP / WRR / SP+WRR Broadcast packet limit Flow mapping based on VLAN ID, port ID and/or 802.1p
Security	MAC address filtering
O&M	OMCI / Web UI System backup and restore 802.1ag Ethernet OAM Optical link measurement and diagnosis Loop check
Multicast	IGMP v2/v3 snooping MLD v1/v2 snooping Fast leave VLAN: tag translation, transparent and stripping for downstream multicast packets IGMP/MLD protocol packet limit
