TP-Link SM6110-SR SFP28 transceiver 25 Gb/s, MM LC, 850nm, 300m
Precio
44,70 €
54,98 € IVA incluido
favoriteAñadir a la lista de deseos

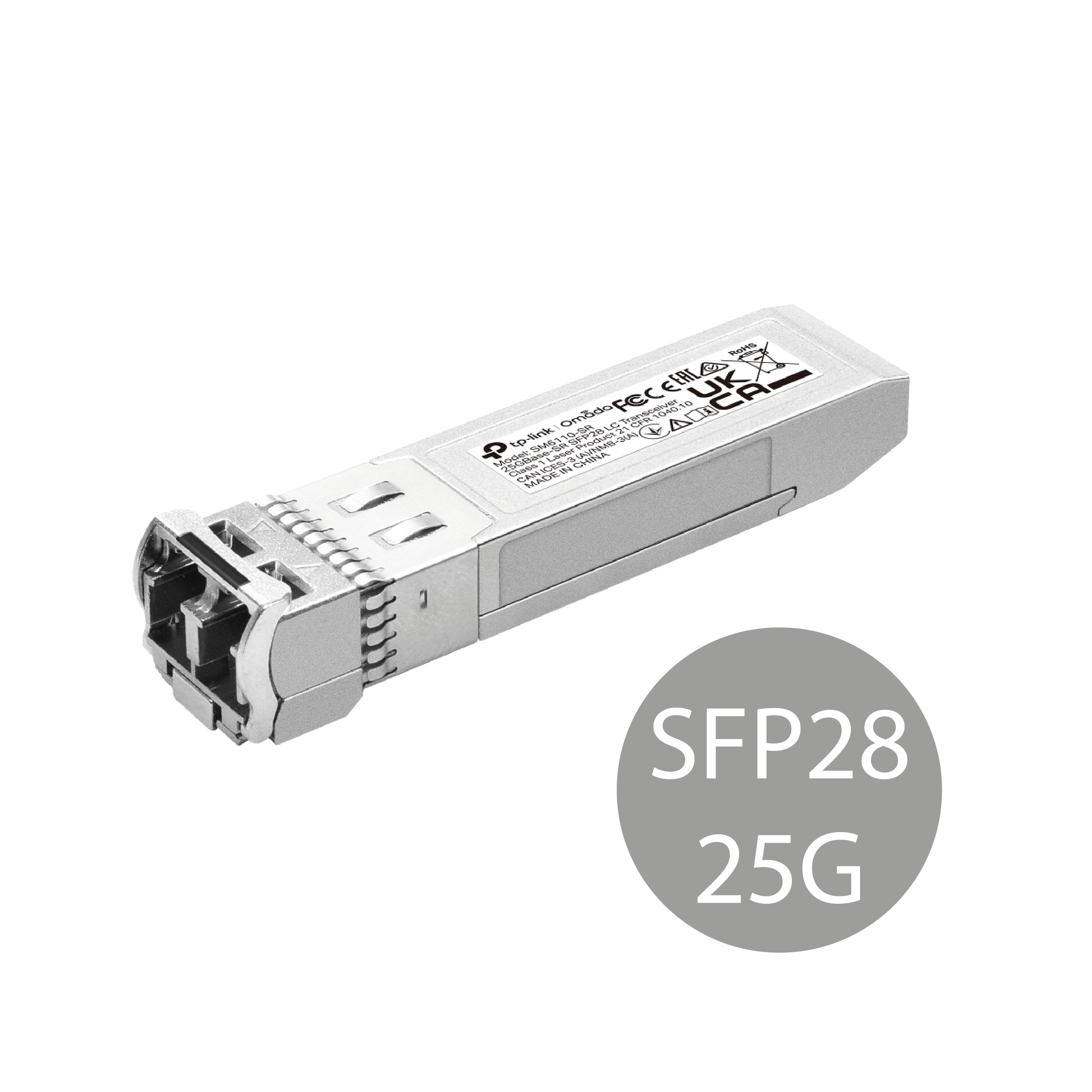

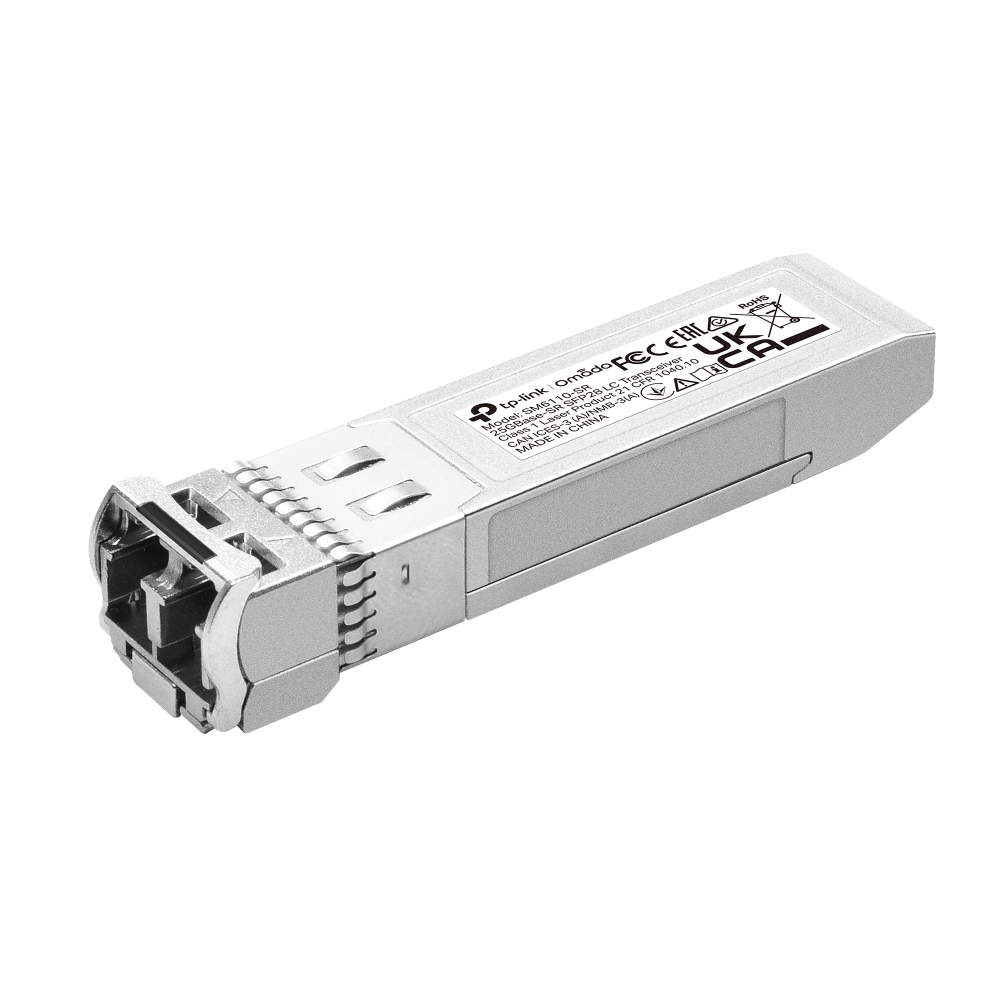

Omada SFP28 25G Transceiver
The offered product is an optical transceiver in the SFP28 standard, providing a throughput of up to 25 Gbps. It is designed for use with TP-Link Omada branded devices to ensure the best possible compatibility. The SFP28 module is a key component for modernizing networks to higher speeds (25G Ethernet).

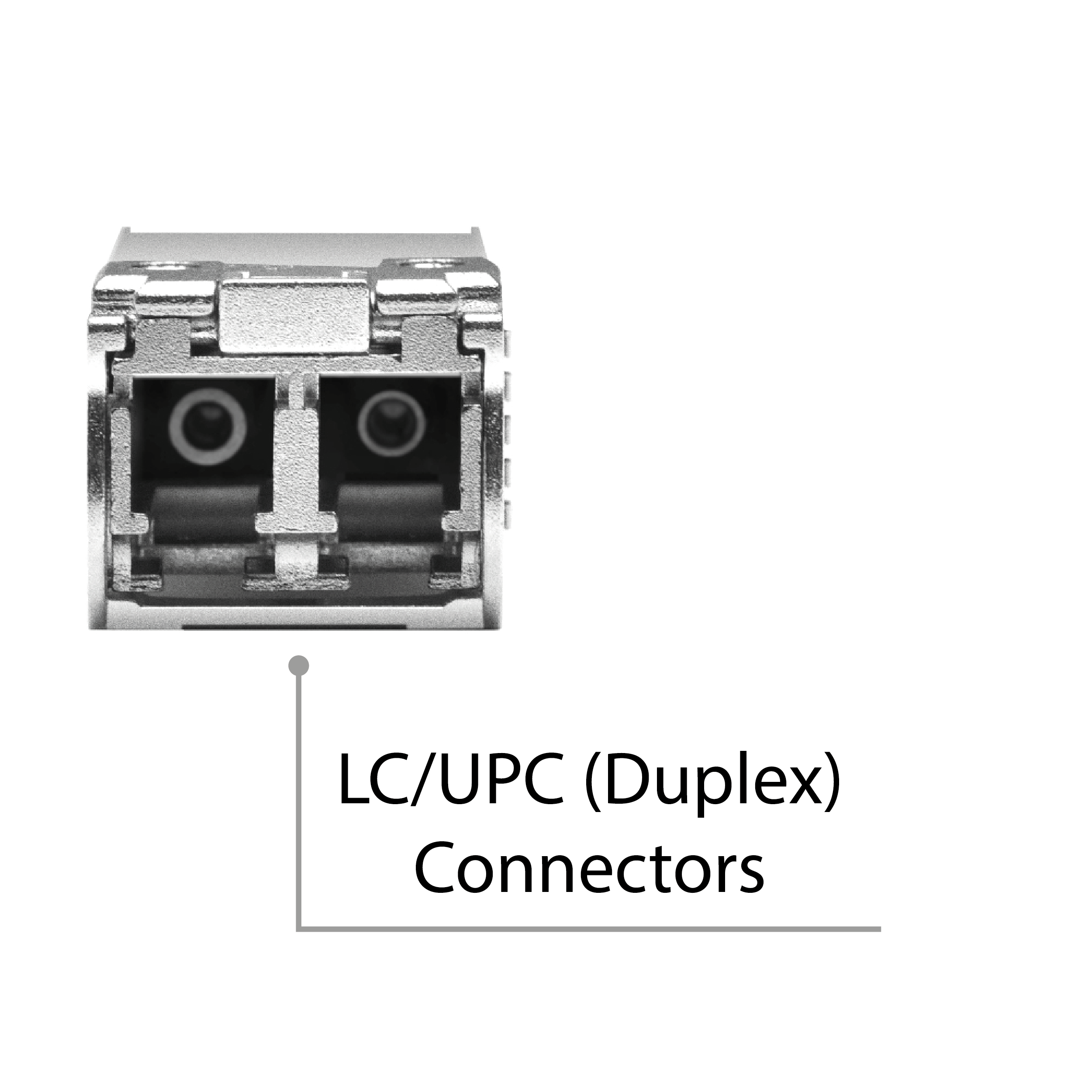

Multi-Mode, LC/UPC Connectors (Duplex)
The transceiver is adapted for operation with Multi-Mode Fiber (MMF) optic cables, which is standard for short-distance transmission in data centers and server racks. Transmission is carried out at a wavelength of 850 nm. The maximum range is typically up to 100 meters (when using OM4 fibers), and the manufacturer has used standard LC/UPC Duplex connectors.
Specifications
| Tp-Link SM6110-SR | |
| Transceiver | |
|---|---|
| Standards and Protocols | IEEE 802.3ae, 802.3by SFF-8402, SFF-8431, SFF-8432, SFF-8472 eCPRI, CPRI TCP/IP |
| Wavelength | 850nm |
| Power Supply | 3.3V |
| Fiber Type | Multi-mode 50/125um or 62.5/125um |
| Cable Length | 70m (OM3) @25.78Gbps 100m (OM4) @25.78Gbps 300m (OM3) @10.31Gbps |
| Connector | LC/UPC Duplex Connector |
| Environment | Operating Temperature: 0?~70? (32?~158?) Storage Temperature: -40?~85? (-40?~185?) Operating Humidity: 10%~90% RH, non-condensing Storage Humidity: 5%~90% RH, non-condensing |
