Ubiquiti 100G LR4 QSFP28 transceiver 100Gb/s, SM LC/UPC 1295/1300/1304/1309nm, 10 km

Ubiquiti 100G LR4 QSFP28 transceiver 100Gb/s, SM LC/UPC 1295/1300/1304/1309nm, 10 km

Marca: Ubiquiti Networks

Código de producto: UQ-UA-OM-QSFP28-LR4

Número de catálogo: 10669

Garantía (meses):

Precio

235,35 €

289,48 € IVA incluido

favoriteAñadir a la lista de deseos

Descripción

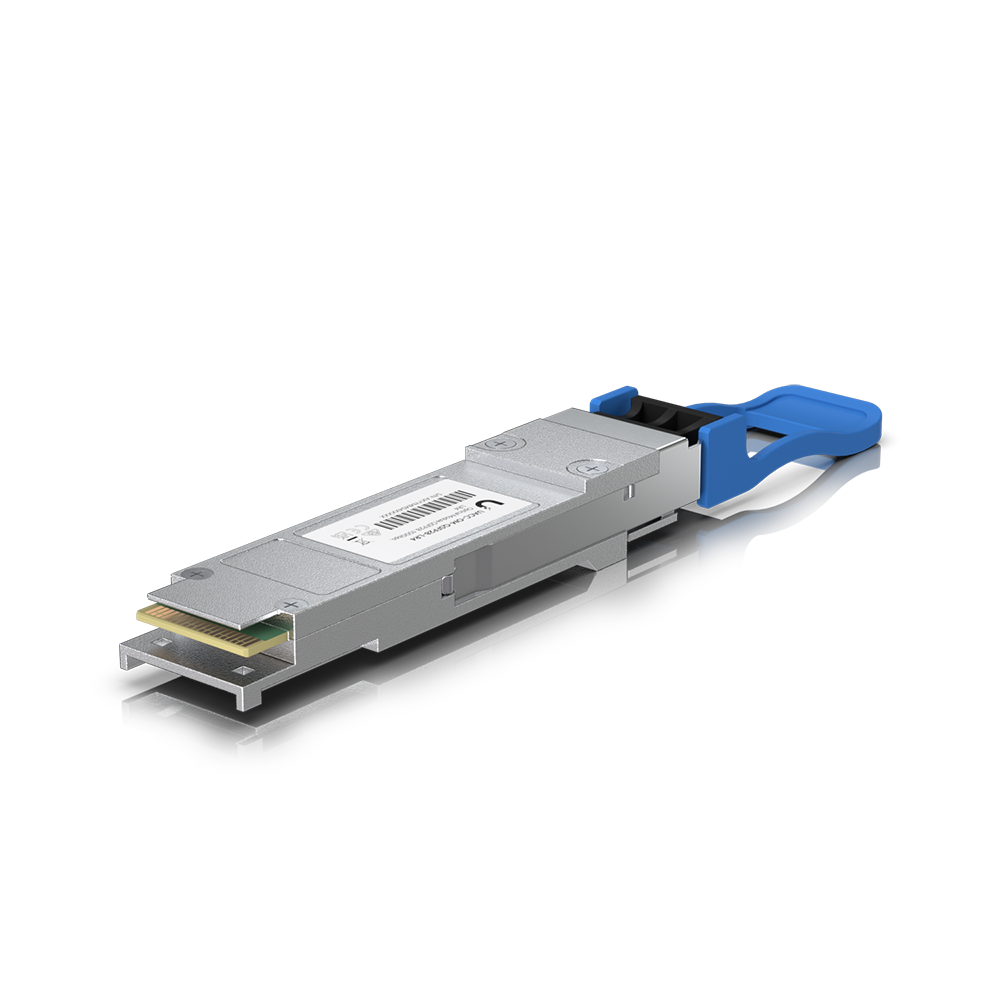

QSFP28 100G Transceiver

The offered product is an optical transceiver in the QSFP28 standard, providing bandwidth of up to 100 Gb/s. It has been designed for use with Ubiquiti devices to ensure the best possible compatibility. It can also be used in QSFP+ slots, which greatly simplifies the upgrade of an existing network.

Singlemode, LC/UPC (Duplex) Connectors

The transceiver is designed to operate with Singlemode fiber optic cables, with transmission carried out using four wavelengths: 1295, 1300, 1304, and 1309 nm. The maximum range is 10 km, and the manufacturer has implemented standard LC/UPC Duplex connectors.

Specifications

Overview
Ubiquiti UACC-OM-QSFP28-LR4
Connectors	2x LC/UPC
Supported Media	Singlemode
TX Wavelength	1295, 1300, 1304, 1309 nm
RX Wavelength	1295, 1300, 1304, 1309 nm
Max. Power Consumption	4 W
Supported Cable Distance	10 km (6.2 mi)
Ambient Operating Temperature	0 to 70° C (32 to 158° F)
