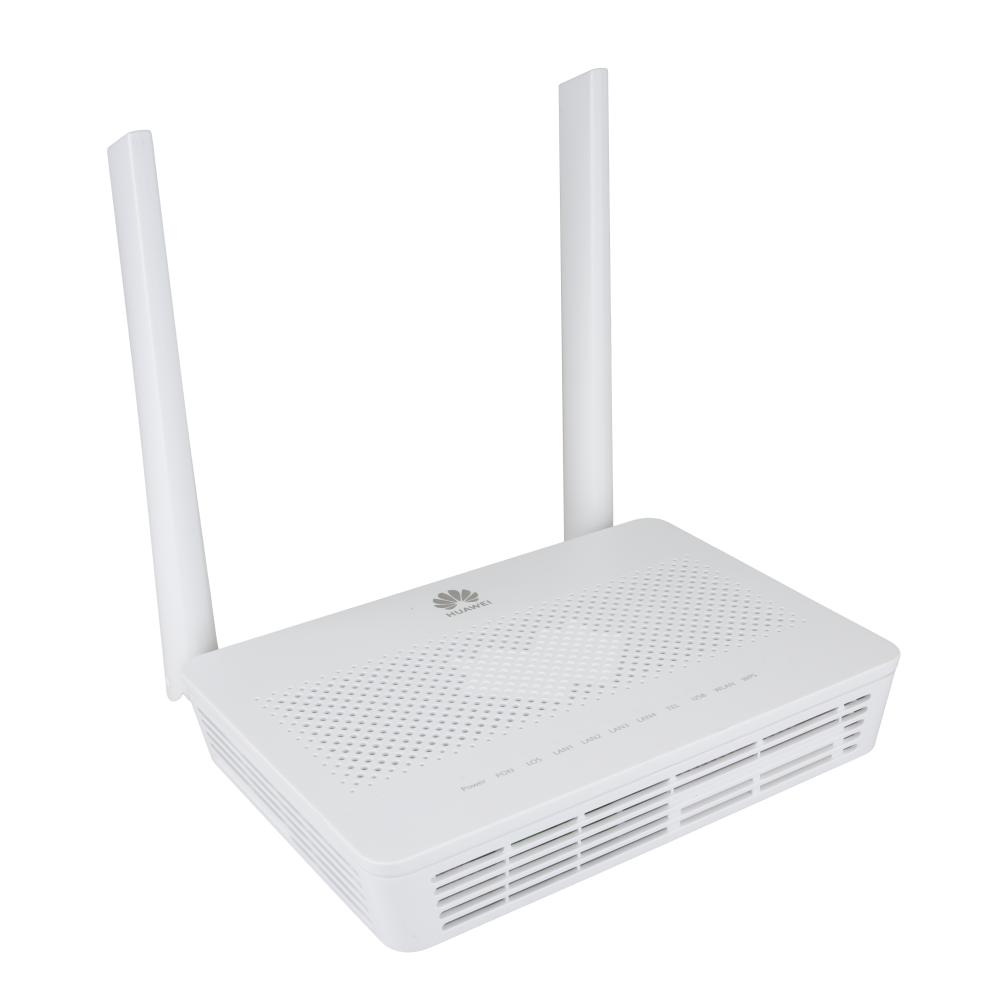

Huawei HG8145V6 GPON ONT terminal Wi-Fi 5 AC1200, 4x GE, 1x RJ11 (POTS), 1x USB

Huawei HG8145V6 GPON ONT terminal Wi-Fi 5 AC1200, 4x GE, 1x RJ11 (POTS), 1x USB

Marca: Huawei

Código de producto: HUA-HG8145V6

Número de catálogo: 10109

Garantía (meses):

Precio

38,83 €

47,76 € IVA incluido

favoriteAñadir a la lista de deseos

Descripción

Administrator account login data:
telecomadmin / admin@ user password from the sticker

The Huawei HG8145V6 is an ONT client terminal designed for use in GPON networks. It supports wireless transmission over Wi-Fi 5, using IEEE 802.11 b/g/n protocols on the 2.4 GHz band and IEEE 802.11 a/n/ac on the 5 GHz band. The maximum theoretical throughput is 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz. The terminal features 4 gigabit Ethernet ports (10/100/1000 Mbps), allowing you to connect high-demand devices via cable. Additionally, it includes 1 RJ11 POTS port for VoIP services, to which a standard analog phone can be connected. Another advantage is the USB port, which can be used to set up an FTP server or share files/printers using the SAMBA protocol.

The device is equipped with an SC/APC optical port with a Class B+ laser, offering a reception sensitivity of -27 dBm. According to the GPON standard, the maximum supported transmission rate is 2.5 Gbps downstream and 1.25 Gbps upstream.

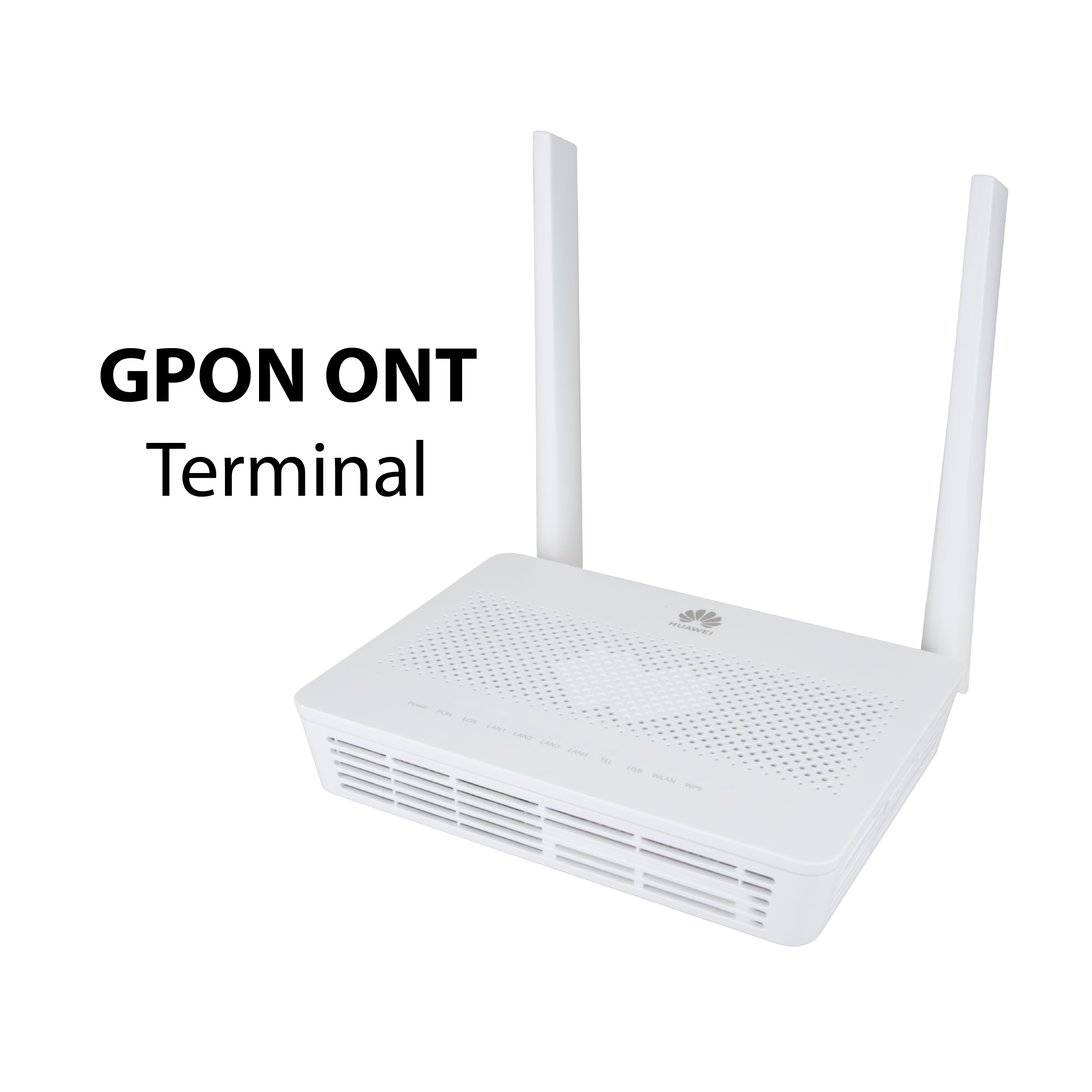

GPON ONT Terminal

The offered product is designed to operate as an ONT client terminal in GPON networks. It is equipped with an SC/APC optical port with a Class B+ laser. The reception sensitivity is -27 dBm.

According to the GPON standard, the transmission throughput is 2.5 Gbps for downstream and 1.25 Gbps for upstream data.

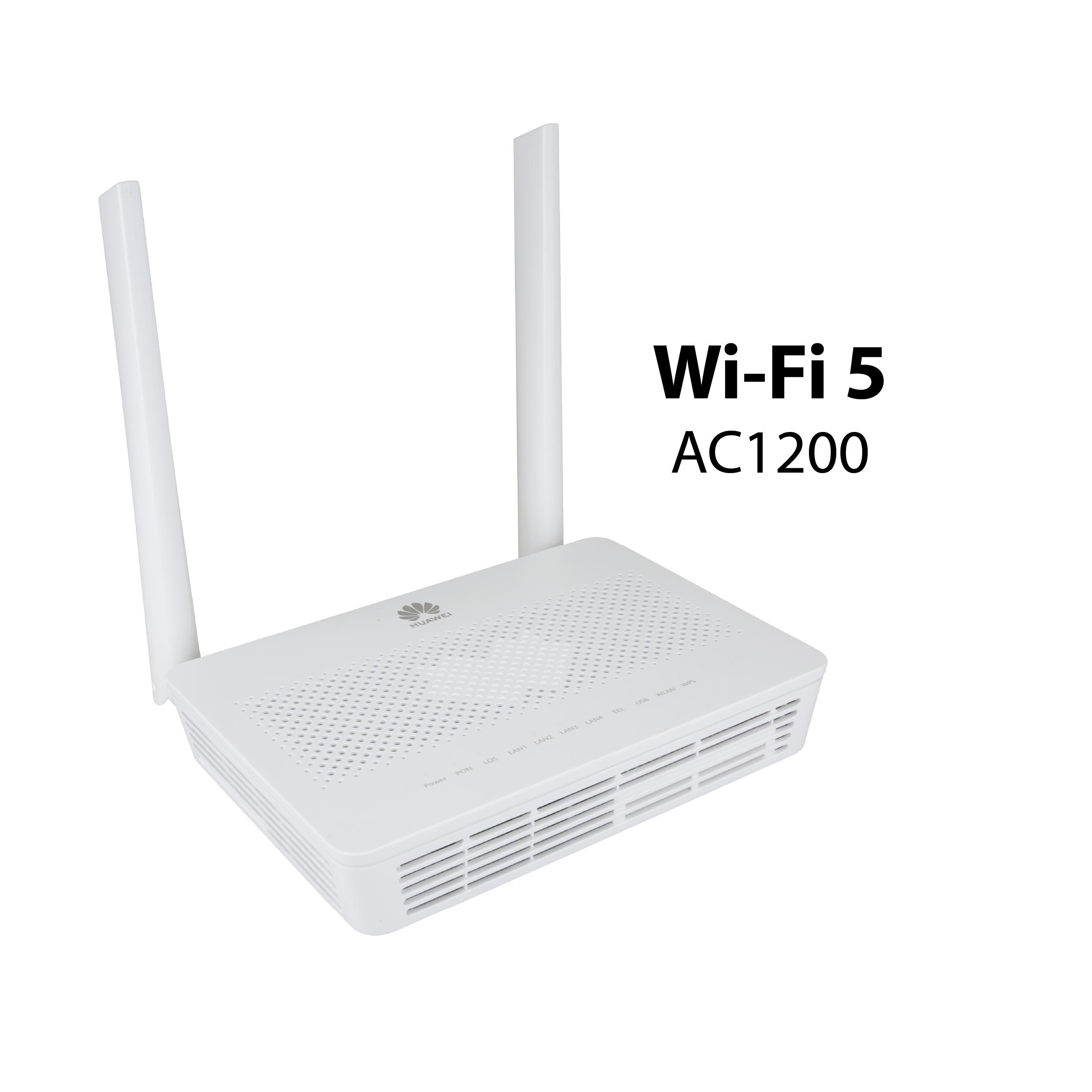

Wi-Fi 5 AC1200

The device can transmit a Wi-Fi 5 wireless network and supports IEEE 802.11 b/g/n protocols on the 2.4 GHz band and IEEE 802.11 a/n/ac on the 5 GHz band. The maximum theoretical throughput is 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz. This speed is more than sufficient for most applications and the basic internet packages offered to subscribers.

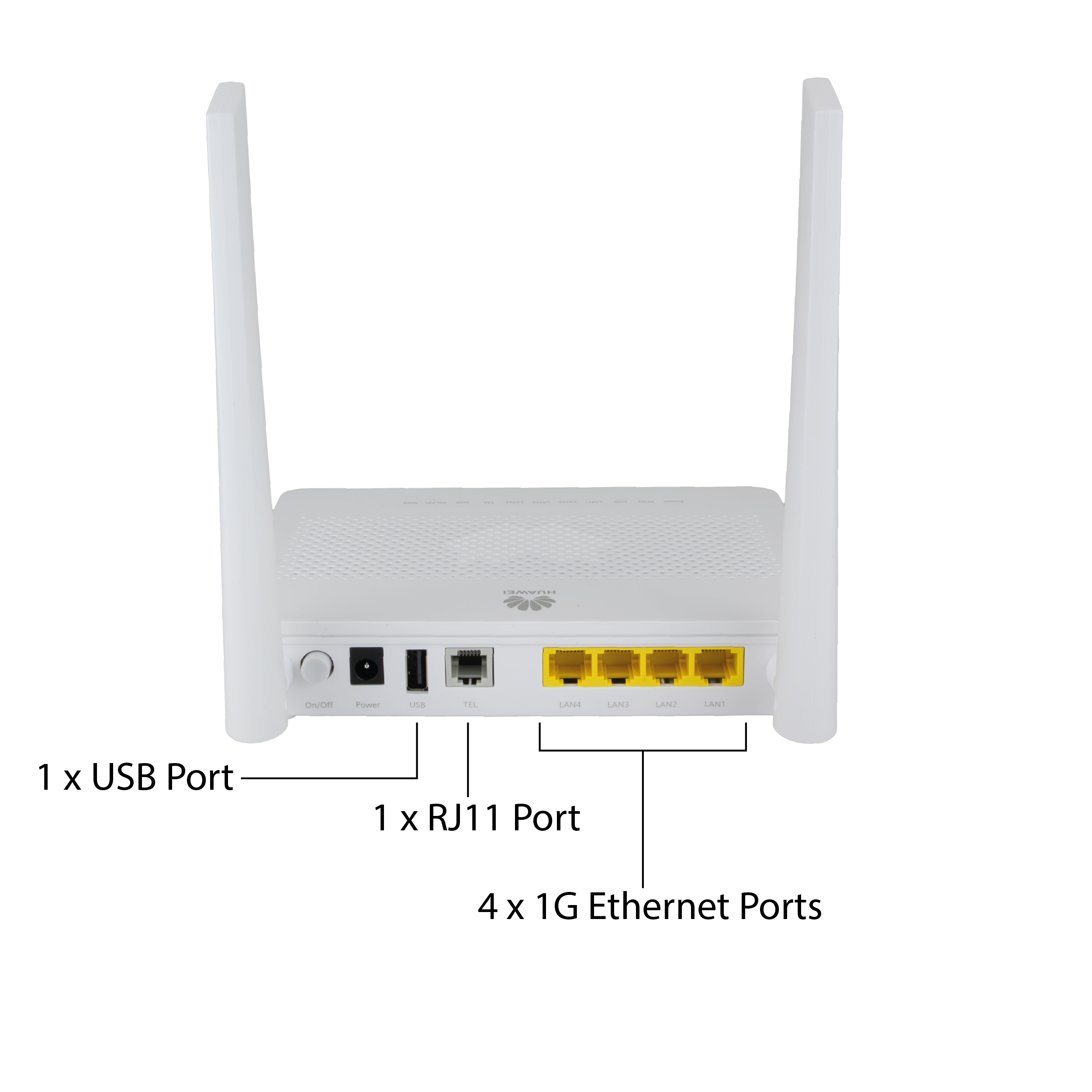

4 1G Ethernet Ports, 1 RJ11 Port, 1 USB Port

The ONT features 4 1G Ethernet ports (10/100/1000 Mbps), allowing subscribers to fully utilize packages up to 1 Gbps. Additionally, it includes an RJ11 port for offering VoIP telephony and a USB port that can be used to set up an FTP server or a file/printer sharing server using the SAMBA protocol.

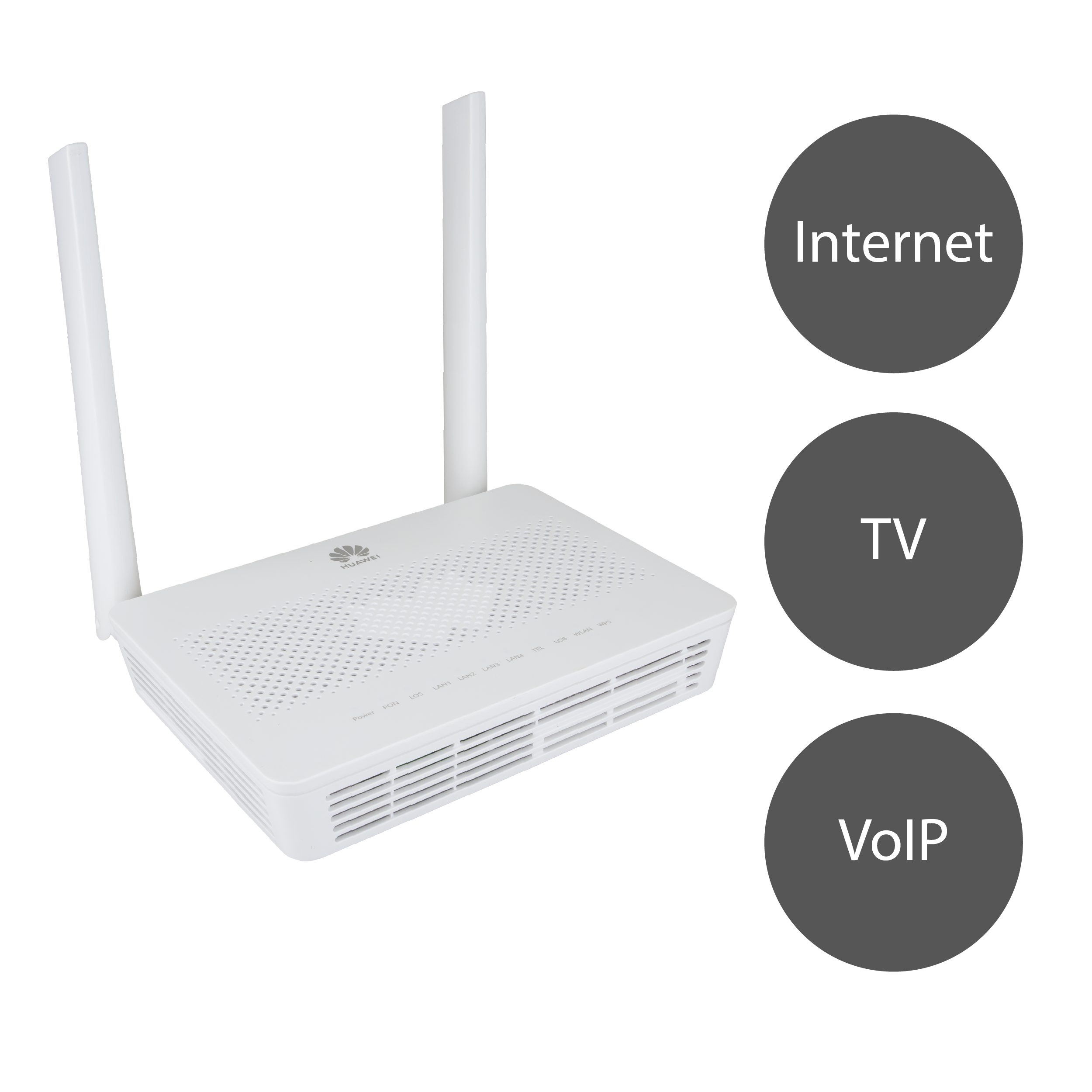

Use Case

The HG8145V6 is one of the basic ONT terminals enabling the delivery of triple play services—Internet, TV, and VoIP. It stands out for its excellent price-to-performance ratio and is an ideal solution for most subscribers who do not require next-generation Wi-Fi or who use smaller data packages.

Specifications

General features
Huawei HG8145V6
Dimensions (H x W x D) (without external antenna and pads)	30 mm x 173 mm x 120 mm
Weight	About 300 g
Operating temperature	0°C to 40°C
Operating humidity	5% RH to 95% RH (non-condensing)
Power adapter input	100 - 240 V AC, 50/60 Hz
System power supply	12 V DC, 1 A
Memory	128 MB Flash 256 MB RAM
Static power consumption	6 W
Maximum power consumption	12 W
NNI	GPON
UNI	1x POTS 4x GE 1x USB WI-Fi 5 AC1200
Optical connector	SC/APC
Indicators	Power/PON/LOS/LAN1/LAN2/LAN3/LAN4/TEL/USB/WLAN/WPS
Interface Parameters
GPON port	Class B+ Receiver sensitivity: -27 dBm Overload optical power: -8 dBm Wavelengths: US 1310 nm, DS 1490 nm Wavelength blocking filter (WBF) of G.984.5 Flexible mapping between GEM Port and TCONT GPON: consistent with the SN or password authentication defined in G.984.3 Bi-directional FEC SR-DBA and NSR-DBA
WLAN	IEEE 802.11 b/g/n (2.4GHz) IEEE 802.11 a/n/ac (5GHz) 2 × 2 MIMO (2.4GHz&5GHz) Antenna gain: 5 dBi WMM/Multiple SSIDs/WPS Air interface rate: 300 Mbit/s (2.4GHz), 867 Mbit/s (5GHz)
POTS port	Maximum REN: 4 G.711A/μ, G.729a/b and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (with the SIP protocol)
USB port	USB2.0 FTP-based network storage File/Print sharing based on SAMBA DLNA function
Ethernet port	Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
Product Function
Smart Interconnection	Smart Wi-Fi coverage SIP/H.248 auto-negotiation Any port any service Parental control L2/L3(IPv4) forwarding: 1G uplink, 2G downlink
Multicast	IGMP v2/v3 proxy/snooping MLD v1/v2 snooping
Smart O&M	IPTV video quality diagnosis eMDI Rogue ONT detection and isolation from the OLT Call emulation, and circuit test and loop-line test PPPoE/DHCP simulation testing WLAN emulation
Security	SPI firewall Filtering based on MAC/IP/URL addresses
Layer 3 features	PPPoE/Static IP/DHCP NAT/NAPT Port forwarding ALG, UPnP DDNS/DNS server/DNS client IPv6/IPv4 dual stack, DS-Lite and IPv6 SPI Static/Default routes Multiple services on one WAN port
Common O&M	OMCI/Web UI/TR069 Variable-length OMCI messages Dual-system software backup and rollback
Smart service	Scheduled Wi-Fi shutdown Smart Wi-Fi sharing: Portal/802.1x authentication; SoftGRE- based sharing
QoS	Ethernet port rate limitation 802.1p priority SP/WRR/SP+WRR Broadcast packet rate limitation
