Opton Fiber Distribution Box 18x SC Duplex (removable insert), 30/30/10

Opton Fiber Distribution Box 18x SC Duplex (removable insert), 30/30/10

Marca: Opton

Código de producto: OP-PDW-18DX-30/30/10

Número de catálogo: 10911

Garantía (meses):

Precio

39,77 €

48,92 € IVA incluido

favoriteAñadir a la lista de deseos

Descripción

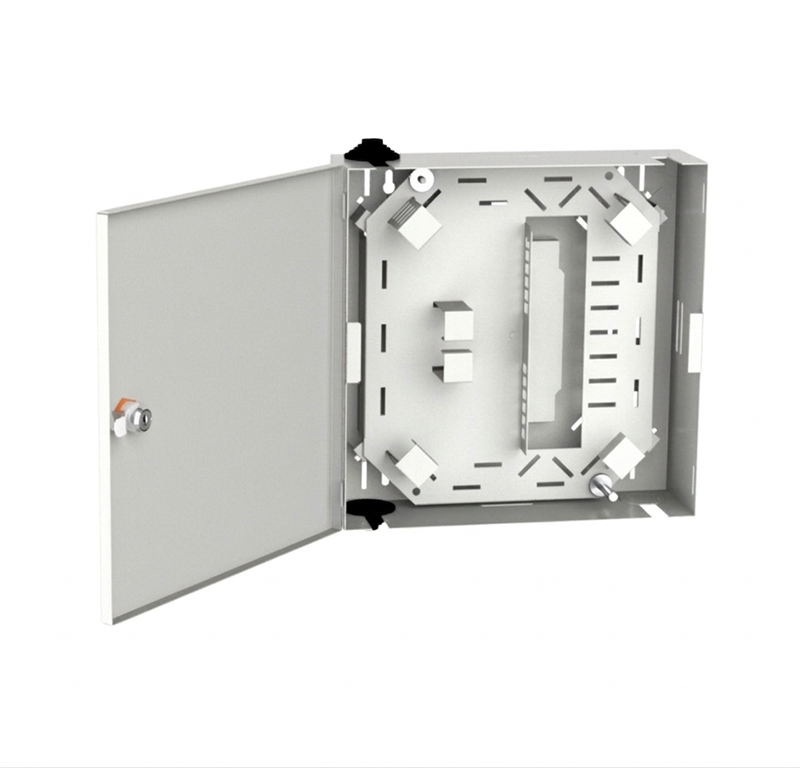

Wall-mounted access distribution box

The offered product is an access distribution box designed for wall-mounted installation inside buildings. It is made of steel sheet coated with a Magnelis layer and painted in light gray color RAL7035. The manufacturer has used solid doors secured with a standard key lock. The protection rating is IP41, and the mechanical resistance is IK10.

Pull-out tray with space for 18 SC Duplex adapters

Inside the distribution box, there is a tray with a frame designed for mounting 18 SC Duplex / LC Quad adapters. The tray can be removed from the interior, which significantly facilitates later work during splicing or connecting additional fiber. Integrated holders allow for securing excess cable, and perforations make it easier to fasten the cabling using cable ties.

4 cable entry holes

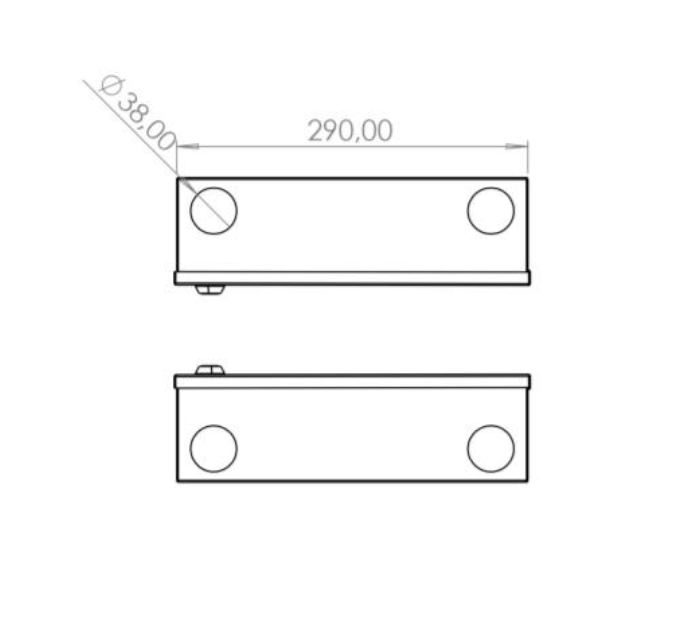

There are two holes each at the top and bottom, designed for cable entry, with a diameter of 38 mm. This makes the distribution box ideal for multi-story buildings when installing vertical cabling.

Specifications

Opton PDW-18DX-30/30/10
Dimensions (W x H x D)	300 x 300 x 100 mm
Number of adapter slots	18
Compatible adapters	SC Duplex, LC Quad
Recommended pigtail length	2 - 2.5 mm
Cable entry type	Rubber grommet
Cable entry diameter	38 mm
Number of cable entries	4 (2x top, 2x bottom)
Mid-span cable installation (mid-span splicing)	Yes
FRP strength member holde	Yes
Mouting type	Indoor, wall-mounted
Operating temperature range	-40°C to 70°C
Protection rating	IP41
Mechanical resistance	IK10
Flammability rating	V0 according to UL 94
Weight	3.5 kg
Construction	Steel sheet coated with Magnelis layer, powder-coated
Color	Light gray RAL7035
