Opton 10G-SM-WDM27-S20 SFP+ 10 Gb/s transceiver, SM, WDM, SC/UPC TX 1270 nm, 20 km
Marca: CDR
Código de producto: CDR10G-SM-WDM33-S20
Número de catálogo: 10460
Garantía (meses):
Precio
18,21
22,40IVA incluido
Cantidad
-
+
favoriteAñadir a la lista de deseos
Descripción

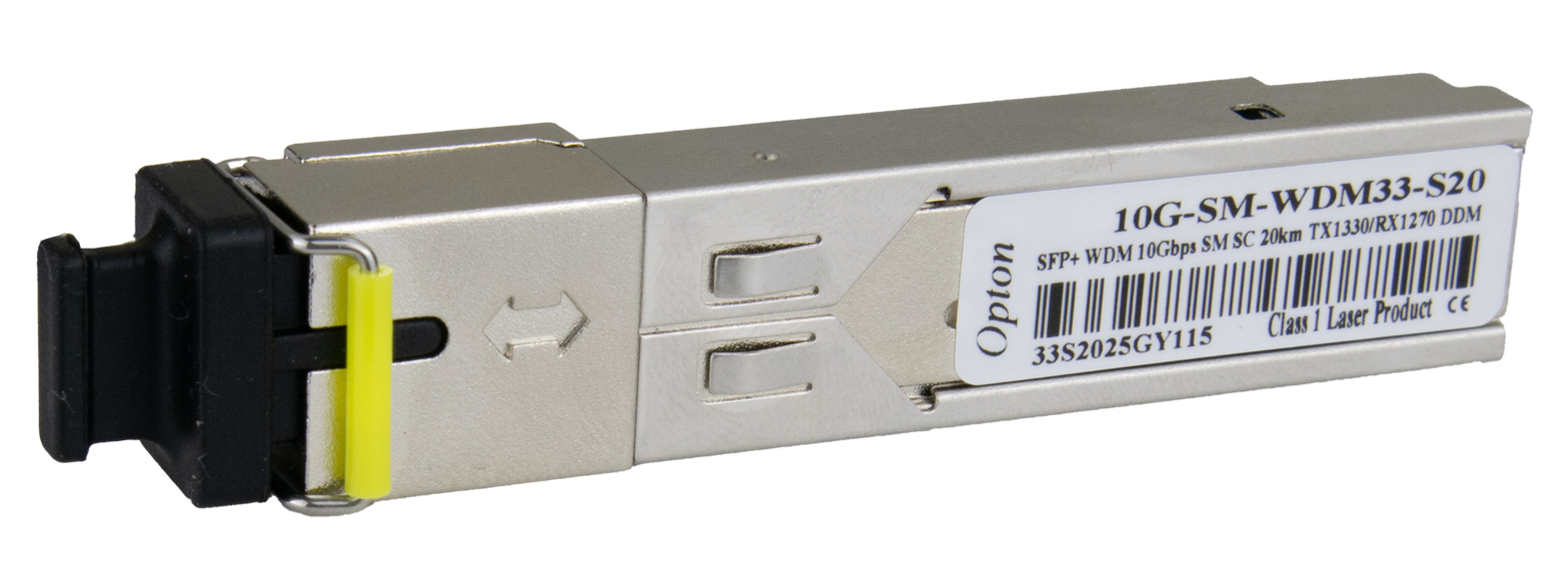

The Opton 10G-SM-WDM33-S20 is an optical transceiver designed for use with singlemode fiber. It features one SC/UPC connector and uses only a single fiber for data transmission (WDM). The connection is established using two wavelengths: the transceiver transmits (Tx) at 1330 nm and receives (Rx) at 1270 nm. To establish a transmission link, a complementary module with Tx at 1270 nm and Rx at 1330 nm is required on the other end (you can find it in the related products section below the specifications). The offered product is an SFP+ module with a maximum supported data rate of 10 Gbps. The transmitter power range is -6 to 3 dBm, and the receiver sensitivity is -14.4 dBm. The maximum connection range is 20 km. The transceiver is factory-programmed for Cisco and should be compatible with all devices that do not block third-party modules (D-Link, TP-Link, Planet, MikroTik, and others). Upon request, we can program optical modules to work with solutions from other manufacturers.

SFP+ Transceiver

This device is a fiber optic transceiver of the SFP+ type, supporting data rates of up to 10 Gbps. This standard is widely used among many products available on the market. It enables speeds ten times higher than an SFP module or a standard 1G Ethernet port. It is an excellent choice for connecting two locations or for transmitting data between network devices, such as between two switches or between a router and a switch.

Singlemode Fiber, Range up to 20 km

The offered product is compatible with fiber optic cables equipped with singlemode fiber, allowing for long-distance data transmission.

The 10G-SM-WDM33-S20 transceiver features an optical output power range of -6 to 3 dBm and a receiver sensitivity of up to -14.4 dBm. The maximum connection range is 20 km, making this module suitable for transmission between distant locations. Additionally, thanks to its wide power range, it can also be used for shorter distances—even within a single rack cabinet.

SC/UPC Connector

The transceiver uses a standard SC/UPC-type connector.

WDM (BIDI) Transceiver

The transceiver transmits data using a single optical fiber by utilizing two different channels (Tx at 1330 nm, Rx at 1270 nm). This is especially useful in locations where fiber availability is limited or when leasing fiber.

It's important to note that to establish a complete transmission link, a second transceiver is required—one that transmits at 1270 nm and receives at 1330 nm. The appropriate module can be found in the "Related Products" section.

Wide Compatibility

Opton SFP+ modules are factory-programmed for Cisco but can operate with devices from all manufacturers that do not restrict third-party transceivers. These include, for example: MikroTik, Ubiquiti, TP-Link, D-Link, and Planet.

For systems where the manufacturer enforces restrictions on third-party modules (e.g., HP, Extreme Networks, Aruba), it is possible to have the SFP+ module programmed by our service department. If you have any doubts before purchasing, feel free to contact us.

Specifications

Opton 10G-SM-WDM33-S20
Form factor SFP+
Throughput 10 Gb/s
Wavelength

Tx: 1330 nm

Rx: 1270 nm

Maximum range 20 km
Connector SC/UPC
Media Singlemode
Transmitter type DFB
Receiver type PIN
TX Power -6 ~ 3 dBm
Receiver sensitivity < -14,4 dBm
Power budget 6,2 dB
Receiver overload 0,5 dBm
Typical power consumption < 1 W
Extinction ratio > 3,5 dB
DDM/DOM Yes
Operating temperature 0°C to 70°C
