Ubiquiti Door Hub for UniFi Access (for single door)

Ubiquiti Door Hub for UniFi Access (for single door)

Marca: Ubiquiti Networks

Código de producto: UQ-UA-HUB-DOOR

Número de catálogo: 10561

Garantía (meses):

Precio

158,47 €

194,92 € IVA incluido

favoriteAñadir a la lista de deseos

Descripción

The Ubiquiti Door Hub is a hub designed for use within the UniFi Access network, allowing you to control the open/closed status of a single pair of doors. To operate, it requires the use of appropriate locks and compatible readers. It features the necessary connectors for connecting an alarm control panel, which, in the event of an alarm (e.g., fire), will send a request to open all doors. The device is equipped with 5 gigabit Ethernet ports. The first port serves as the PoE++ (802.3bt) power input, while the remaining four provide PoE (802.3af) outputs. The Door Hub is designed to allow you to connect two readers and, optionally, additional IP cameras. The enclosure is adapted for DIN rail mounting, and the set includes mounting dowels that allow you to attach the rail to a wall if you prefer not to use a cabinet.

Hub with support for 1 pair of doors, for the UniFi Access system

The offered product is a hub designed for use in the UniFi Access system, without the ability to operate in stand-alone mode. The device is used to control the open/closed status of doors and requires connection to a compatible lock and reader(s). You can use one of the locks offered by Ubiquiti or a solution from another manufacturer.

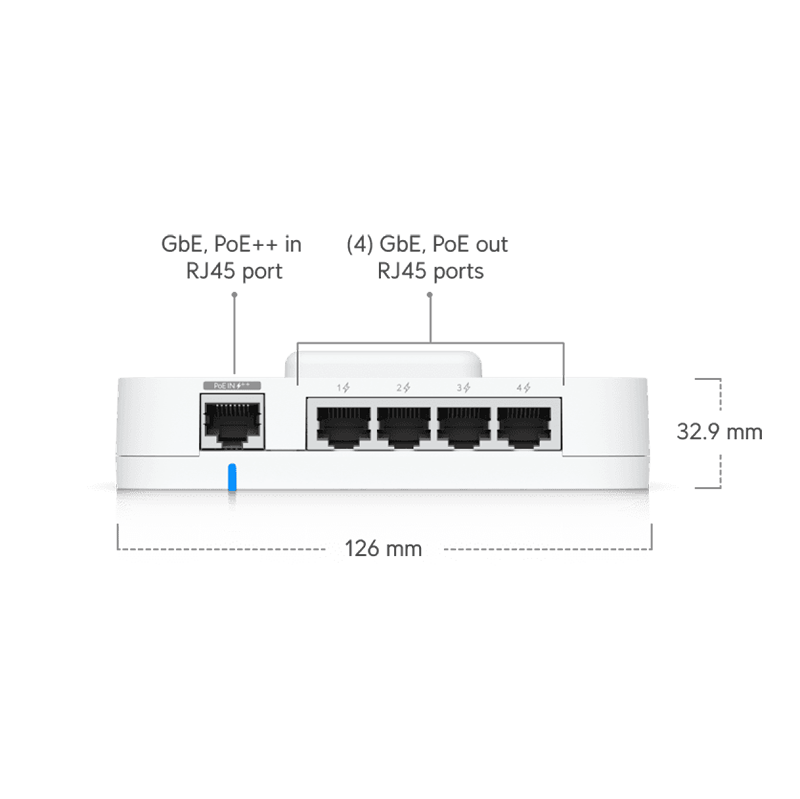

5 1G Ethernet ports, 1 PoE++ input, 4 PoE outputs

The device uses 5 gigabit Ethernet ports (10/100/1000 Mbps) for communication. The first port serves as a PoE++ (802.3bt) power input. The remaining 4 ports provide PoE (802.3af) outputs, which can be used to connect and simultaneously power readers or IP cameras. The maximum output power per port is 15.4 W, and the maximum total power budget (across all ports) is 28 W.

Application

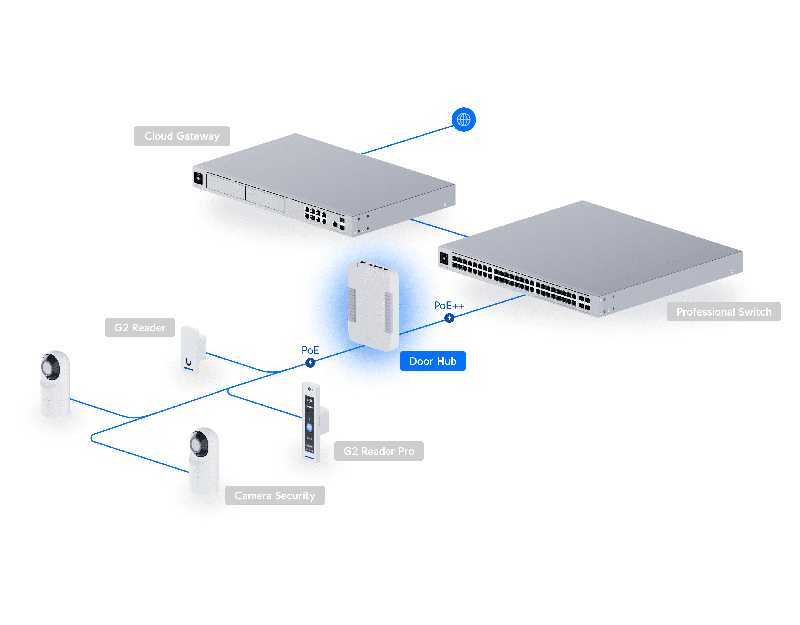

The Door Hub allows you to control the open/closed status of doors. The lock and appropriate readers/buttons that send open requests are connected directly to the hub. You can also connect a signal from the alarm control panel, which, in the event of a fire alarm, will cause the doors connected to the hub to open. The offered product is ideal for offices, hotels, restaurants, and many other locations where you want to separate public areas from private ones. When combined with the appropriate accessories, it enables you to control access to a given room.

Specifications

Overview
Ubiquiti UA-Hub-Door
Dimensions	174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
UniFi Application Suite	UniFi Access
Supported Doors	1
Input Terminals	(2) Door exit request (1) Door position (1) Emergency
Power Method	PoE++ (802.3bt)
NDAA Compliant	Yes
UL 294 Level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Mechanical
Weight	363 g (12.8 oz)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
Mounting	DIN-rail (Included)
Hardware
Digital Input	Request to exit, request to enter, remote release, door position sensor
Dry Output Relay	Lock: 30V DC, 1A Aux: 30V DC, 1A
Powered Output Relay	Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A
Indoor and Outdoor Use	Indoor only
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
Networking Interface	(5) 10/100/1000 Base-T
PoE Interface	(1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 15.4W per port (Max. 28W aggregated)
Max. Power Consumption	30W (Without PoE output) 50W (With PoE output)
LEDs	W/B
Buttons	(1) Factory-reset
Recommend Max. Cable Length	UA-Lock-Electric (400 mA) 24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) UA-Lock-Magnetic-540kg (500 mA) 24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) UA-Lock-Magnetic-270kg (800 mA) 24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (98 ft) 20 AWG length: 30 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) Other locks (1 A) 24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements	Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
Software
Management Appliaction	UniFi Access
