Ubiquiti Access Button

Ubiquiti Access Button

Marca: Ubiquiti Networks

Código de producto: UQ-UA-BUTTON

Número de catálogo: 10447

Garantía (meses):

Precio

32,73 €

40,26 € IVA incluido

favoriteAñadir a la lista de deseos

Descripción

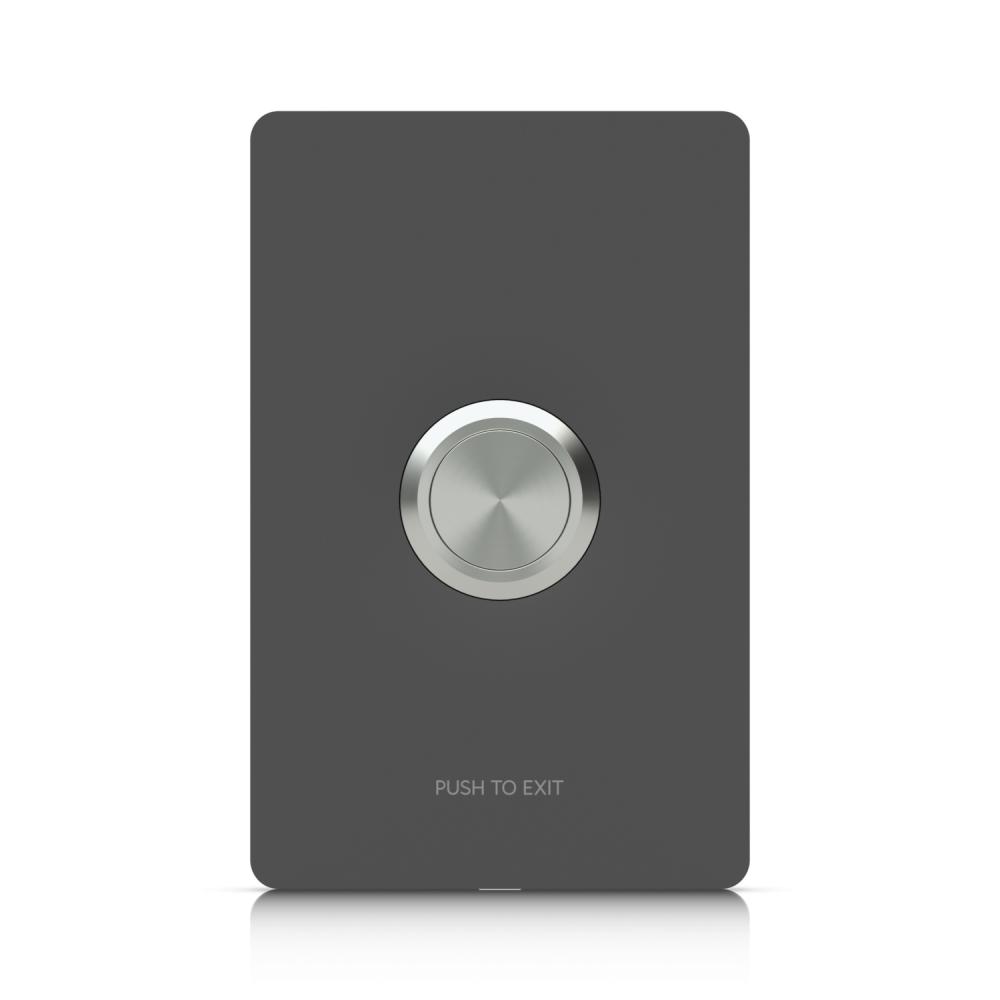

Exit Button for UniFi Access

The offered product is an exit button dedicated to the UniFi Access system. When connected to a Hub, it allows users to exit a room without requiring authorization. By using the UA-Button, you don't need to install readers on both sides of the door—just one reader at the entrance and the button at the exit.

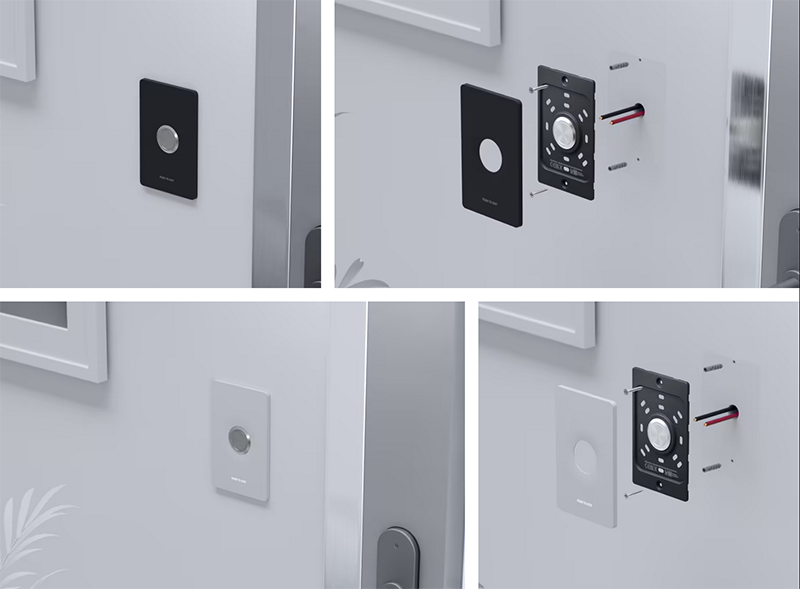

The set includes both white and black housings, allowing you to match the product to the design of the specific location. Compatible Hubs: UA-G2-SK-Pro, UA-G2-SK, UA-G3-SK-Pro, UA-G3-SK, UA-Hub-Door, EAH-8, UA-Hub-Door-Mini, UA-Ultra.

Specifications

Mechanical
Ubiquiti UA-Button
Dimensions	137 x 88 x 38.1 mm (5.4 x 3.5 x 1.5")
Weight	180 g (6.3 oz)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate, SGCC steel
Available Colors	Black, white
Indoor and Outdoor Use	Indoor only
Hardware
Mechanical Life	1,000,000 clicks
Power Method	UniFi Access Hubs UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Contact Type	(1) Normal open
Contact Rating	30 V DC, 2 A
UL 294 Level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 Statement	Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade	Grade assignment: 1
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Storage Temperature	-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity	5 to 90% noncondensing
NDAA Compliant	Yes
