Ubiquiti DIN Ethernet Surge Protection 20 kA, up to 10 Gb/s

Ubiquiti DIN Ethernet Surge Protection 20 kA, up to 10 Gb/s

Marca: Ubiquiti Networks

Código de producto: UQ-UACC-ETH-SP-DIN

Número de catálogo: 10790

Garantía (meses):

Precio

22,60 €

27,80 € IVA incluido

favoriteAñadir a la lista de deseos

Descripción

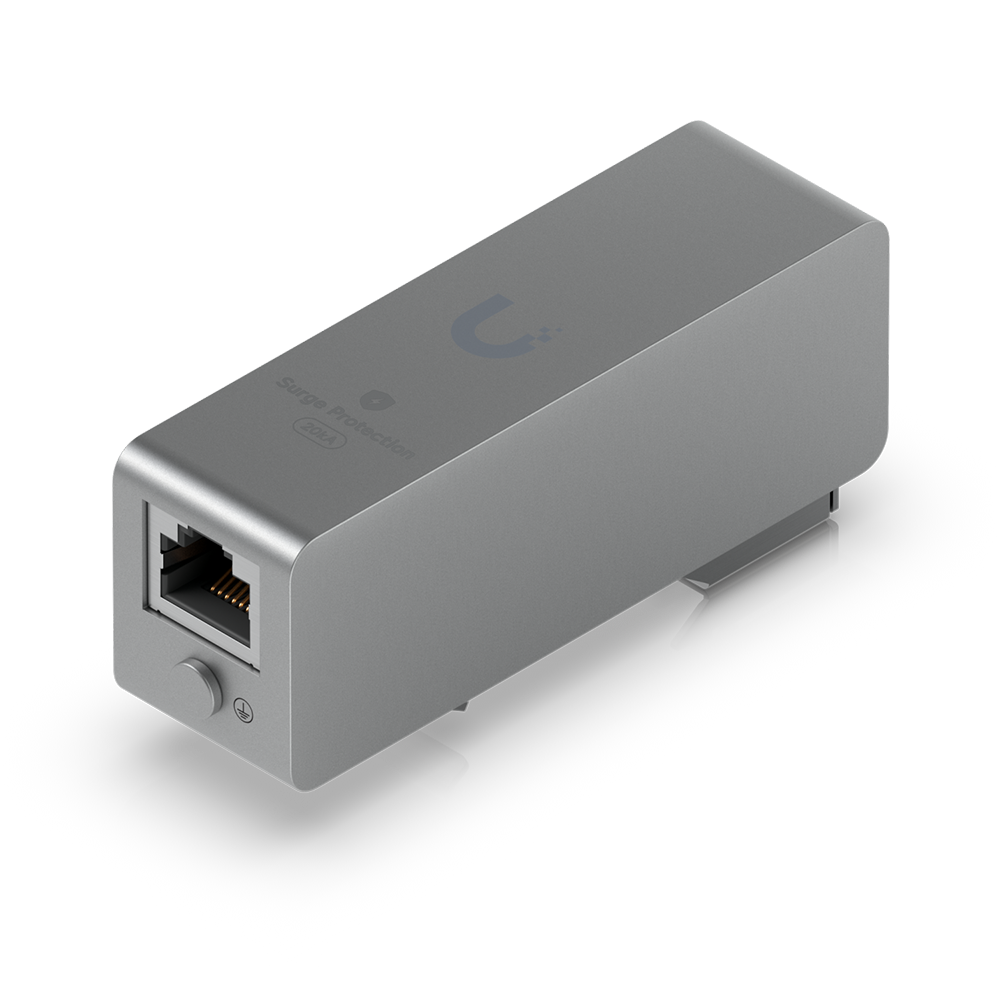

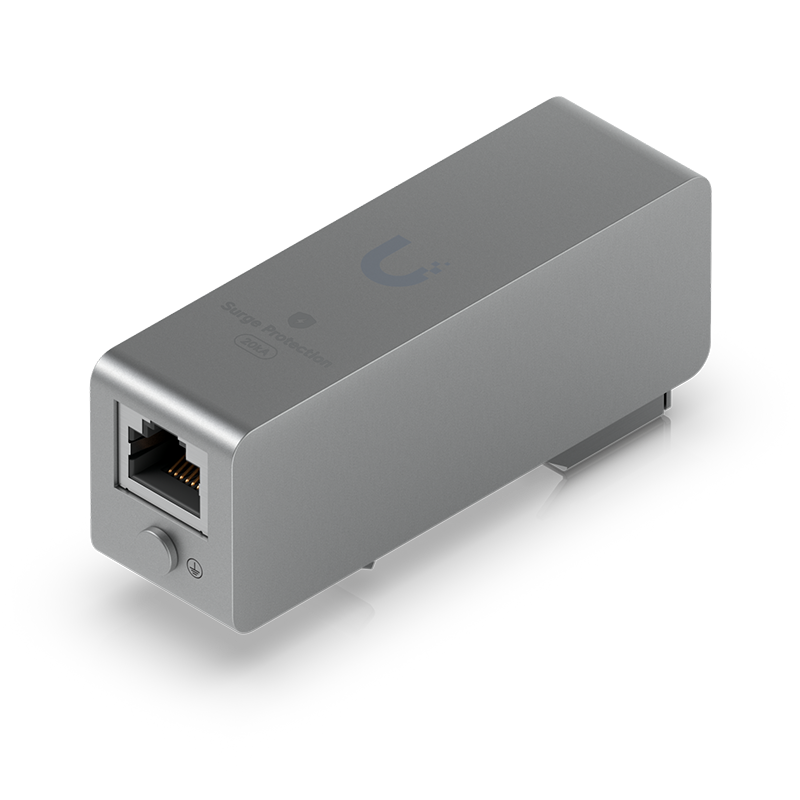

The Ubiquiti UACC-ETH-SP-DIN is designed for surge protection of connected devices and can also be used to safeguard PoE connections. It features 2 Ethernet ports and an enclosure suitable for wall or DIN rail mounting. It supports data throughput up to 10 Gb/s, with a maximum discharge current of 20 kA.

Surge Protection for a Single Device, PoE Support, Up to 10 Gb/s Throughput

The offered product provides surge protection for a single device. It is equipped with two Ethernet ports and supports a maximum data throughput of 10 Gb/s. It offers surge protection up to 20 kA, safeguarding the connected device from various types of electrical surges.

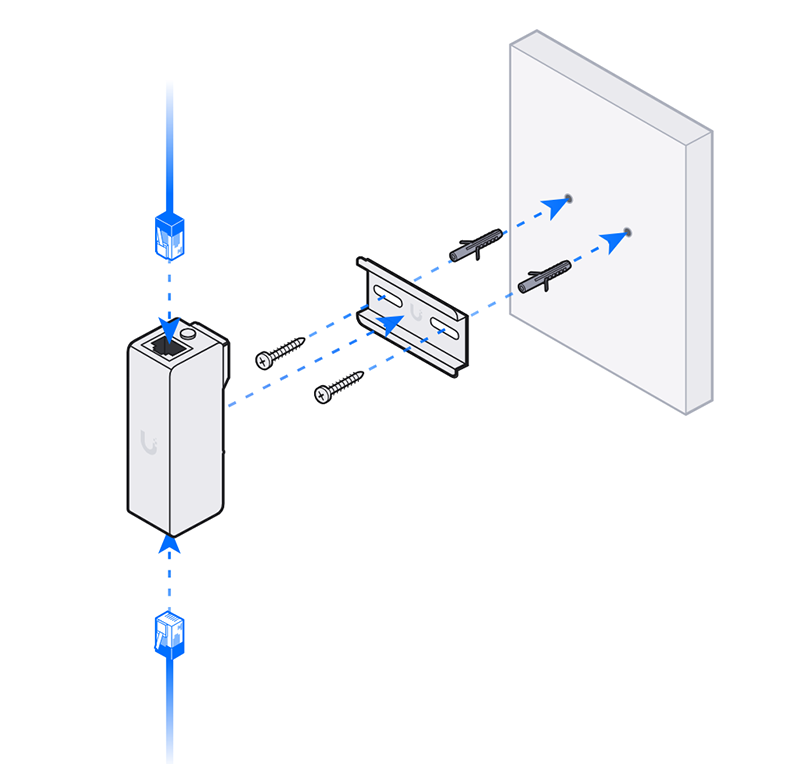

For DIN Rail Mounting

The enclosure is designed for DIN rail installation, and the UACC-ETH-SP-DIN features a compact form factor. Using the included accessories, the device can also be mounted on a wall. Proper grounding must be ensured during installation.

Specifications

Mechanical
Ubiquiti UACC-ETH-SP-DIN
Dimensions	89 x 25,5 x 37.4 mm (3.5 x 1 x 1.5")
Weight	74 g
Enclosure Material	Polycarbonate, SGCC steel
Hardware
Networking Interface	(2) RJ45 female connectors
DC Spark-Over Voltage	90V @ 100V/s
Max. Impulse Spark-Over Voltage	600V @ 1kV/µs
Discharge Current	20 kA
Insulation	Max. Resistance: 1G ohm @ 50V
Max. Capacitance	1.0 pF @ 1 MHz
Data Line Protection	10 Gb/s
PoE Support	Yes (up to PoE++)
ESD/EMP Protection	Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
Ambient Operating Temperature	-40°C to 80°C
Ambient Operating Humidity	10 to 90% noncondensing
