Ubiquiti Fail-Safe Bolt Lock

Ubiquiti Fail-Safe Bolt Lock

Marca: Ubiquiti Networks

Código de producto: UQ-UA-LOCK-BOLT-SAFE

Número de catálogo: 11134

Garantía (meses):

Precio

81,87 €

100,70 € IVA incluido

favoriteAñadir a la lista de deseos

Descripción

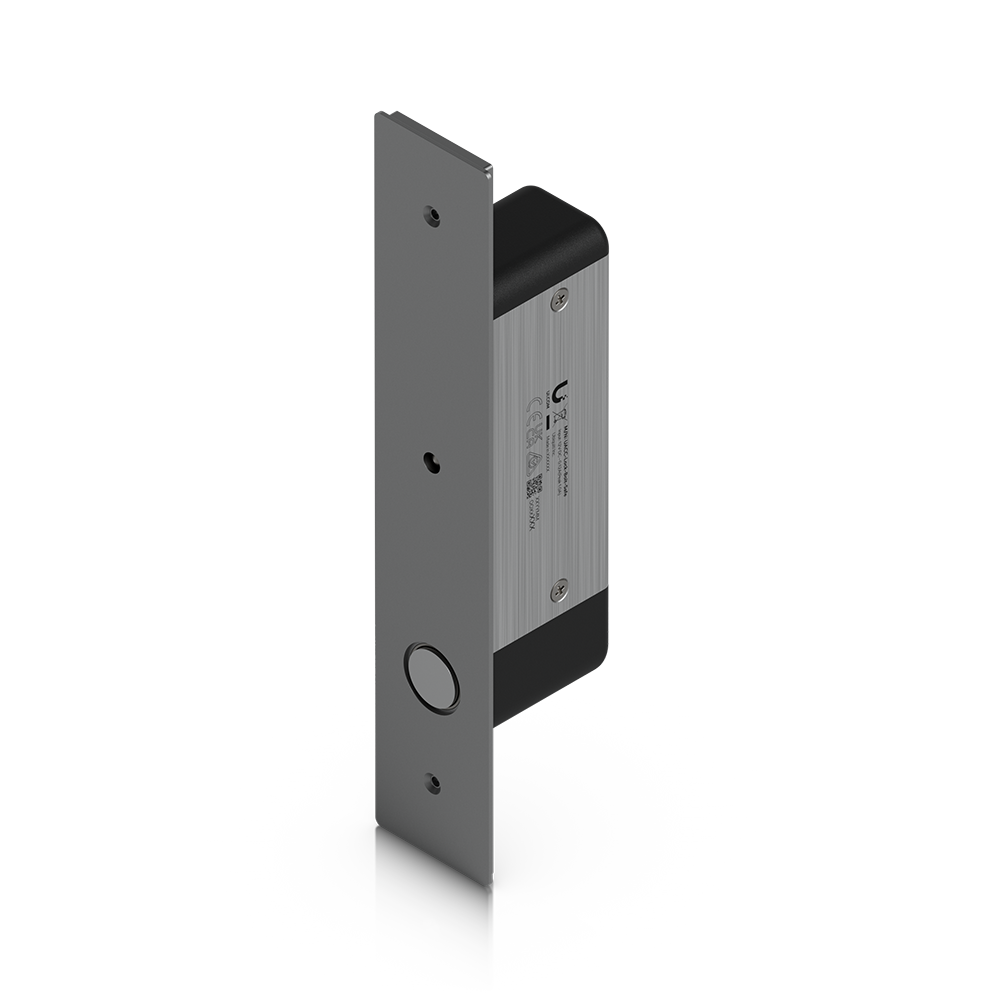

Electric Bolt Lock (Reversible / Fail-Safe)

The Ubiquiti UACC-Lock-Bolt-Secure is an electric bolt lock. It is designed for installation at the top of the door frame; when the door is closed, the bolt extends from the lock and secures the door. The device can be used with wooden or metal doors, and the necessary mounting accessories are included in the set.

It is a fail-safe lock – it unlocks in the event of a power failure, making it suitable for use on emergency exit routes.

Specifications

Overview
Ubiquiti UACC-Lock-Bolt-Safe
Dimensions	Lock body: 132 x 30 x 42 mm (5.2 x 1.2 x 1.7") Door frame plate: 82 x 32 x 3 mm (3.2 x 1.3 x 0.1") Door plate: plate: 204 x 33 x 3 mm (8 x 1.3 x 0.1")
Weight	Lock body: 350 g (12.3 oz) Door frame plate: 22 g (0.7 oz) Door plate: 46 g (1.6 oz)
Enclosure Material	Lock body: aluminum alloy Door frame plate/Door plate: aluminum alloy
Lock Type	Fail safe
Support Door Type	Single door (Wooden/metal)
DPS	Embedded
Current Power	Max. 900mA
Support Voltage Range	12 V DC ±10%
Wiring	(1) Lock 12V/NC (red) (1) Lock 12V/COM (black) (1) DPS/- (white) (1) DPS/+ (orange)
Mounting	Door frame recess mount
LED Indicator	Red: locked Green: unlocked & power indicator
Type	Dry contact
Logic	Door Open: DPS/+ & DPS/- = Open Door Close: DPS/+ & DPS/- = Short
Rating	Max. 30V DC, 0.5A
Ambient Storage Temperature	-20 to 70° C (-4 to 158° F)
Ambient Operating Temperature	-10 to 60° C (14 to 140° F)
Ambient Operating Humidity	5 to 90% noncondensing
NDAA Compliant	Yes
