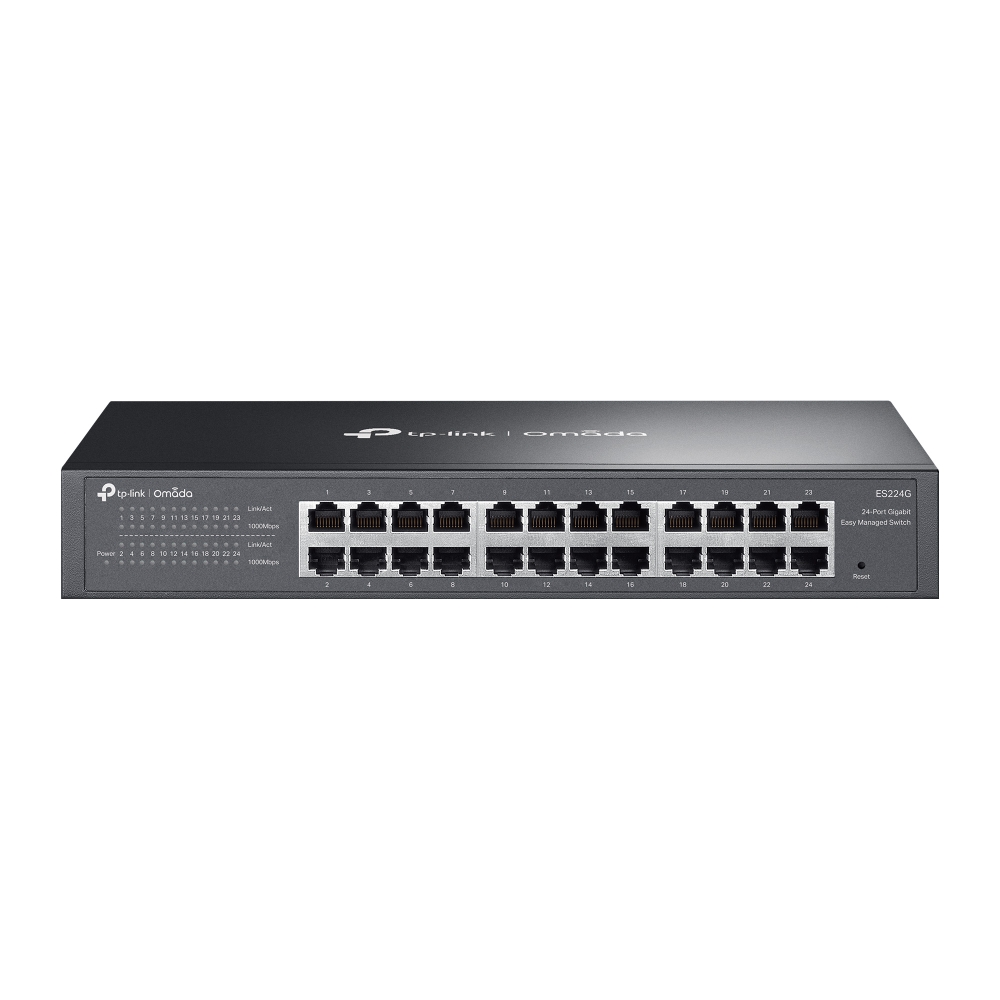

TP-Link ES224G Omada switch L2, 24x GE

TP-Link ES224G Omada switch L2, 24x GE

Marca: TP-Link

Código de producto: TL-ES224G

Número de catálogo: 10898

Garantía (meses):

Precio

89,22 €

109,74 € IVA incluido

favoriteAñadir a la lista de deseos

Descripción

The TP-Link ES224G switch is an Easy Managed class device equipped with twenty-four Gigabit RJ-45 ports, designed for efficient traffic handling in expanded local networks. The switch fully integrates with the Omada SDN ecosystem, allowing for centralized parameter configuration, port status monitoring, and remote network management from the cloud. The device architecture supports key Layer 2 functions, such as 802.1Q VLAN segmentation, loop prevention, IGMP snooping, and QoS traffic prioritization (802.1p/DSCP), ensuring the stability of delay-sensitive data transmissions. A durable metal casing suitable for rack mounting and a fanless design guarantee silent operation and high reliability, maintaining efficient and secure data flow in an office environment.

SDN Platform with Cloud Access

Remotely manage your Access Points, Switches, and Gateways located across multiple sites from a single interface.

Lifetime free Cloud with no additional costs

Exists entirely in the Cloud.
No additional hardware or software controllers required

Centralized Cloud management for multiple locations

Access anytime via the Omada app or Web page

Easy configuration, usage, and maintenance

Unlimited management scale

Zero-Touch Provisioning
(ZTP) without unboxing

Seamless transition to
Omada Cloud Standard
via subscription

Multiple Features for
Surveillance Network Reliability

Secure traffic separation

Guaranteed video
quality priority

Safer camera network based on Port Isolation

- Simplified maintenance
  through cable diagnostics

Specification

Hardware Features
TP-Link ES224G
Ports	24× 10/100/1000 Mbps RJ45 Ports Auto-Negotiation / Auto MDI/MDIX
Fan Quantity	Fanless
Mounting	Tabletop Rack Mountable
Physical Security Lock	Yes
Power Supply	100-240 V~50/60 Hz
Dimensions (W x D x H)	294 × 140 × 44 mm (11.6 × 5.5 × 1.7 in)
Surge Protection	±6kV
Performance
Switching Capacity	48 Gbps
Packet Forwarding Rate	35.7 Mpps
MAC Address Table	8K
Packet Buffer	4 Mb
Jumbo Frame	15 KB
Software Features
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 priority queues • Priority Schedule Mode: WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control: Port-based rate limiting • Storm Control: Multiple modes (kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control: 802.3x • Mirroring: Port Mirroring (One-to-One, Many-to-One, Ingress/Egress/Both) • Port Statistics: Mirroring status, Traffic statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping (v1/v2/v3), Fast Leave
VLAN	• MTU VLAN, Port-based VLAN, 802.1Q Tag VLAN (Max 32 groups, 4K VIDs)
Transmission Method	Store-And-Forward
Management
Omada App	Yes. Requires Omada Hardware, Cloud-Based, or Software Controller.
Centralized Management	Omada Cloud-Based Controller, Hardware Controller, or Software Controller
Cloud Access	Yes (via Omada Controllers)
Zero-Touch Provisioning	Yes (Requires Omada Cloud-Based Controller)
Management Features	Web-based GUI, DHCP Client, Cable Diagnostics, Auto Device Discovery, Batch Configuration, Batch Firmware Upgrading, Unified Configuration
Others
Package Contents	ES224G, Power Cord, Rubber Feet, Rackmount Brackets, Screws, Installation Guide
Environment	Operating Temp: -5?~50?; Storage Temp: -40?~70? Operating Humidity: 10%~90% non-condensing
