Ubiquiti Panic Bar
Marca: Ubiquiti Networks
Código de producto: UQ-UACC-PANICBAR
Número de catálogo: 10842
Garantía (meses):
Precio
321,71 €
395,70 € IVA incluido
favoriteAñadir a la lista de deseos

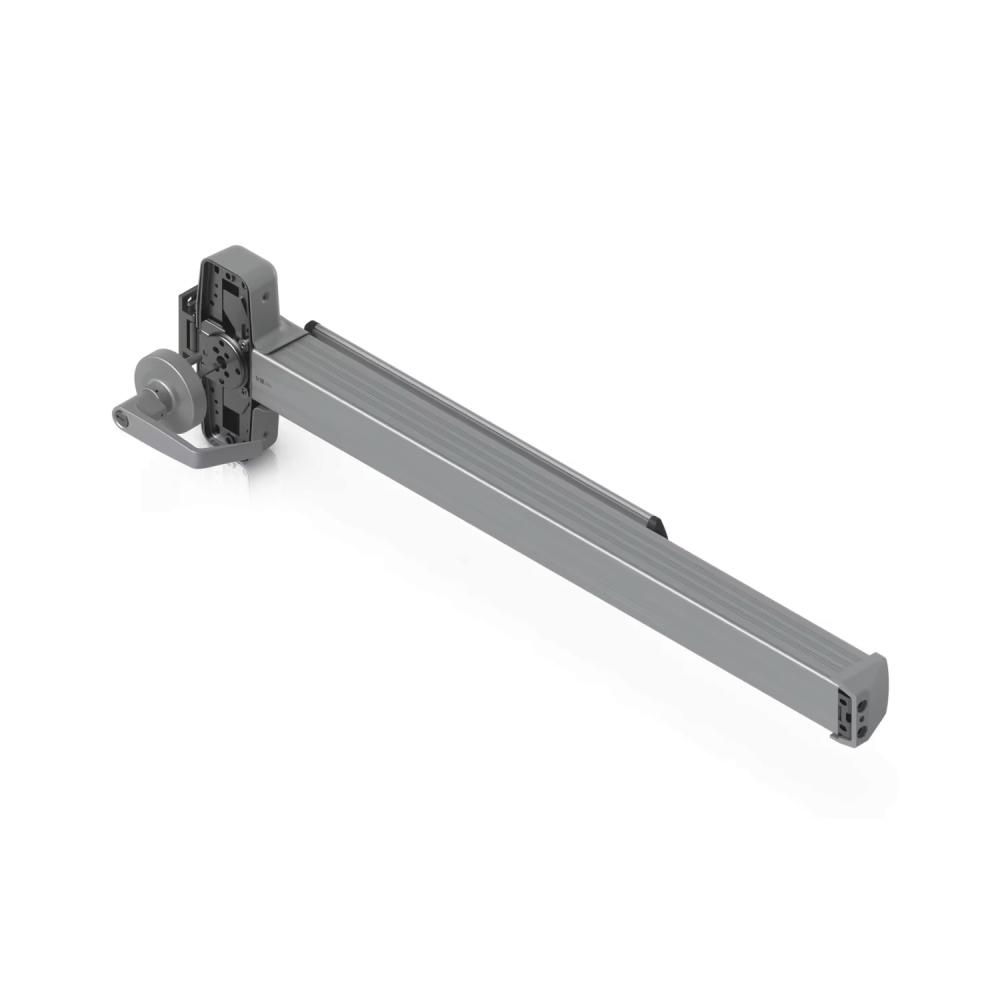

Panic bar
The offered product is a panic bar, perfectly suited for emergency exit doors. It allows opening in a simple way by pressing, which makes it effective during evacuation in situations where a crowd may push against the door.
Specifications
| Ubiquiti UACC-PanicBar | |
| Dimensions | 838 x 294 x 94 mm (33 x 11.6 x 3.7") |
| Weight | 5,8 kg (12.8 lb) |
| Enclosure Material | Aluminum, stainless steel |
| Supported Door Width | 3′ standard for door width of 2′4″ to 3′ (711 to 914 mm) |
| Supported Door Thickness | 1-3/4” (44 mm) and 2” (51 mm) thick of metal or wood door |
| Strike | For 3/4” (19 mm) stop |
| Reversible | Non-handed, reversible for all functions and trims |
| Stiley | 4-1/4” (108 mm) minimum |
| Connection | 2 lines for dry relay |
| Wiring Connection |
Dry output Contact rating: 30V DC, 1A Push = Short/Release = Open |
