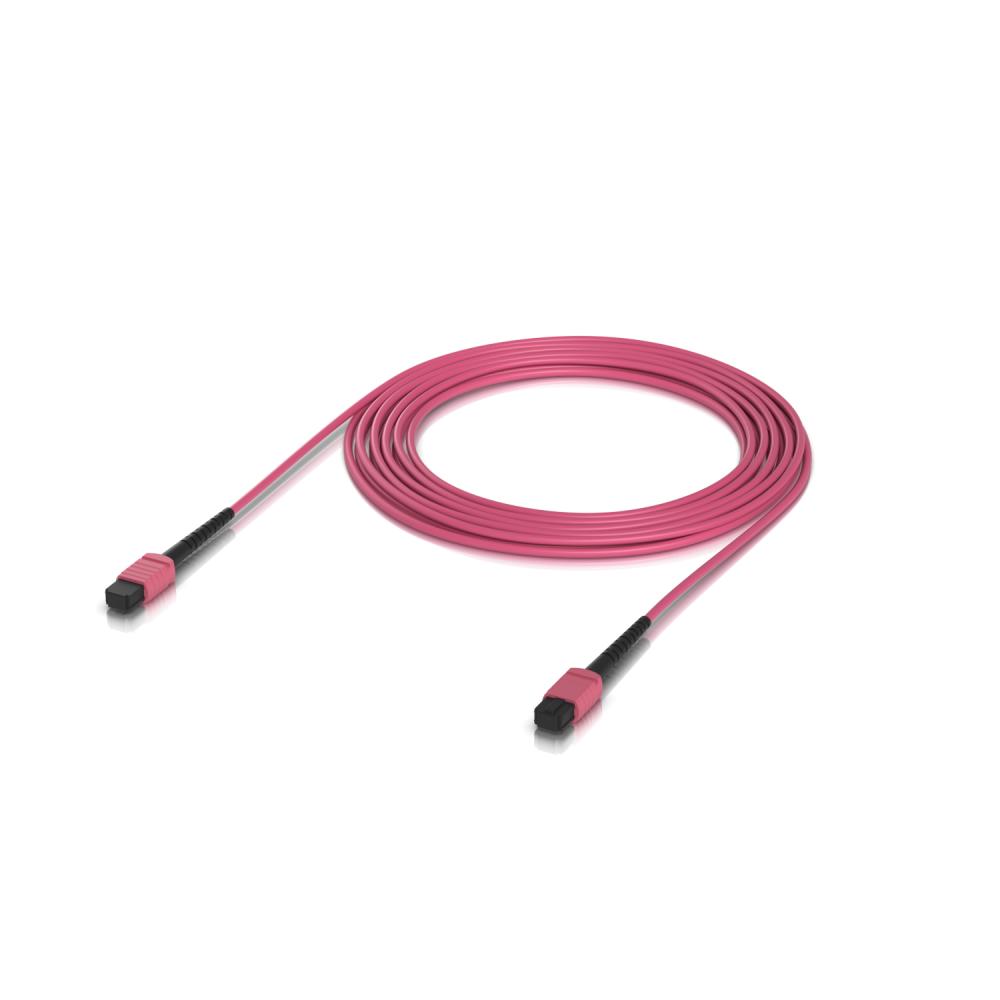

Ubiquiti Fiber Patch Cord MPO-12 UPC, OM4, MM, 5m
Marca: Ubiquiti Networks
Código de producto: UQ-UOFC-MA-MPMP-5M
Número de catálogo: 10794
Garantía (meses):
Precio
54,07 €
66,51 € IVA incluido
favoriteAñadir a la lista de deseos

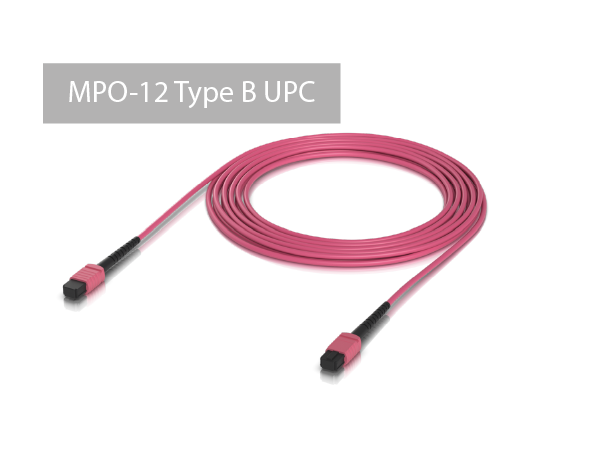

MPO-12 UPC Patch Cord
The offered product is a duplex fiber optic patch cord terminated on both ends with MPO-12 Type B UPC connectors. This is a standard widely used in various QSFP modules.

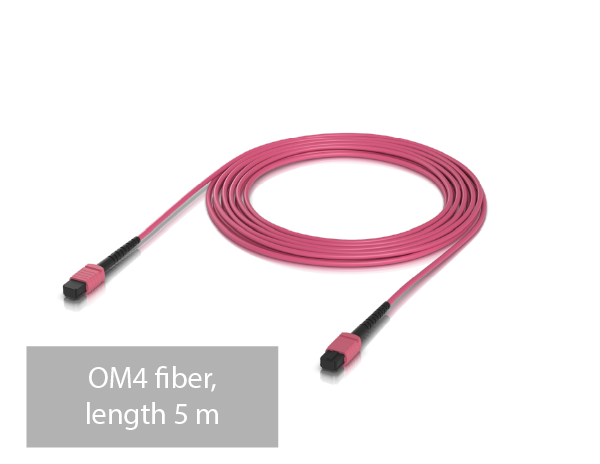

OM4 Fiber, Length 5 m
The patch cord is equipped with OM4 fiber, allowing it to be used for 100 Gb/s transmissions without issue. The total cable length is 5 m, with an outer diameter of 3 mm. The jacket is made of LSZH material, and the product is intended for indoor use.
Specifications
| Ubiquiti UACC-OFC-MA-MPMP-5M | |
| Overview | |
|---|---|
| Length | 5 m (16.4 ft.) |
| Connector | 2x MPO-12 Type B UPC |
| Operating Environment | Indoor |
| Fiber Mode | OM4 |
| Jacket Diameter | 3 mm (0.12") |
| Jacket Material | Low smoke zero halogen (LSZH) |
| Jacket Color | Rose |
| Wavelength | 850 nm |
| Insertion Loss | ≤ 0.6 dB |
| Return Loss | ≥ 20 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Ambient Operating Temperature | -40 to 75° C (-40 to 167° F) |
