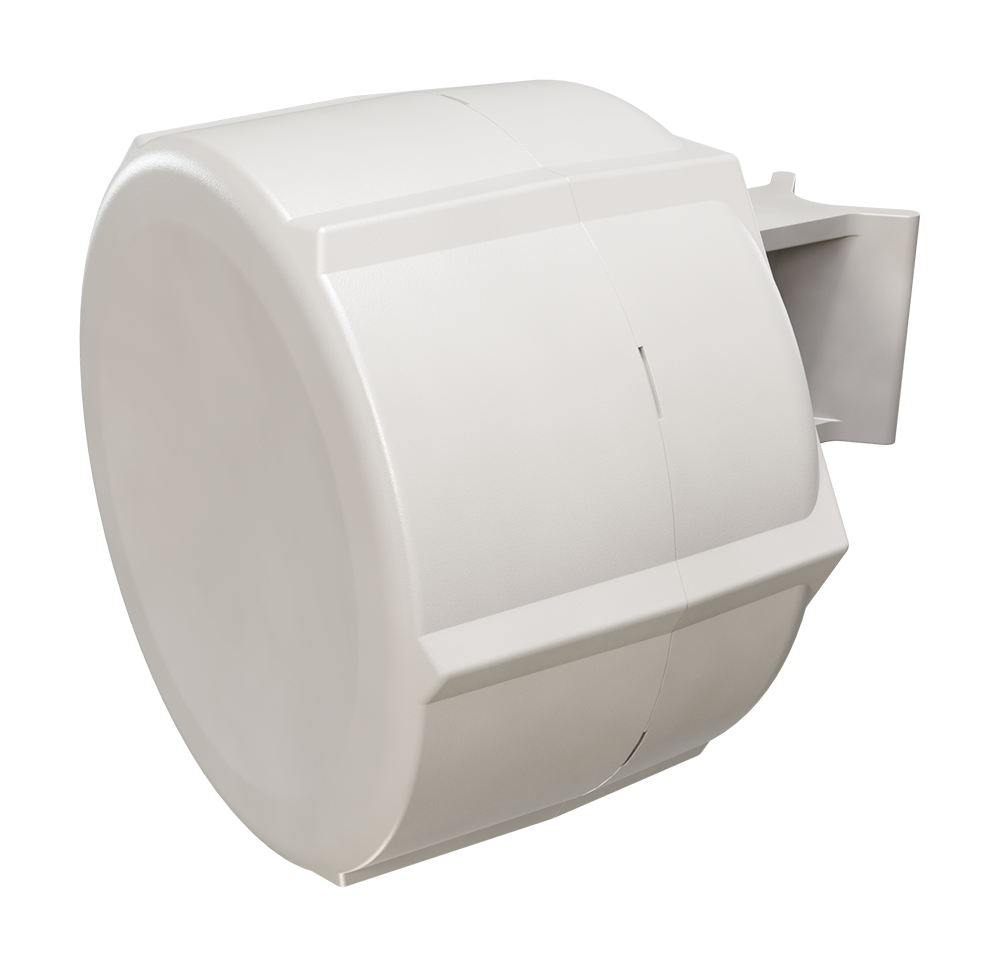

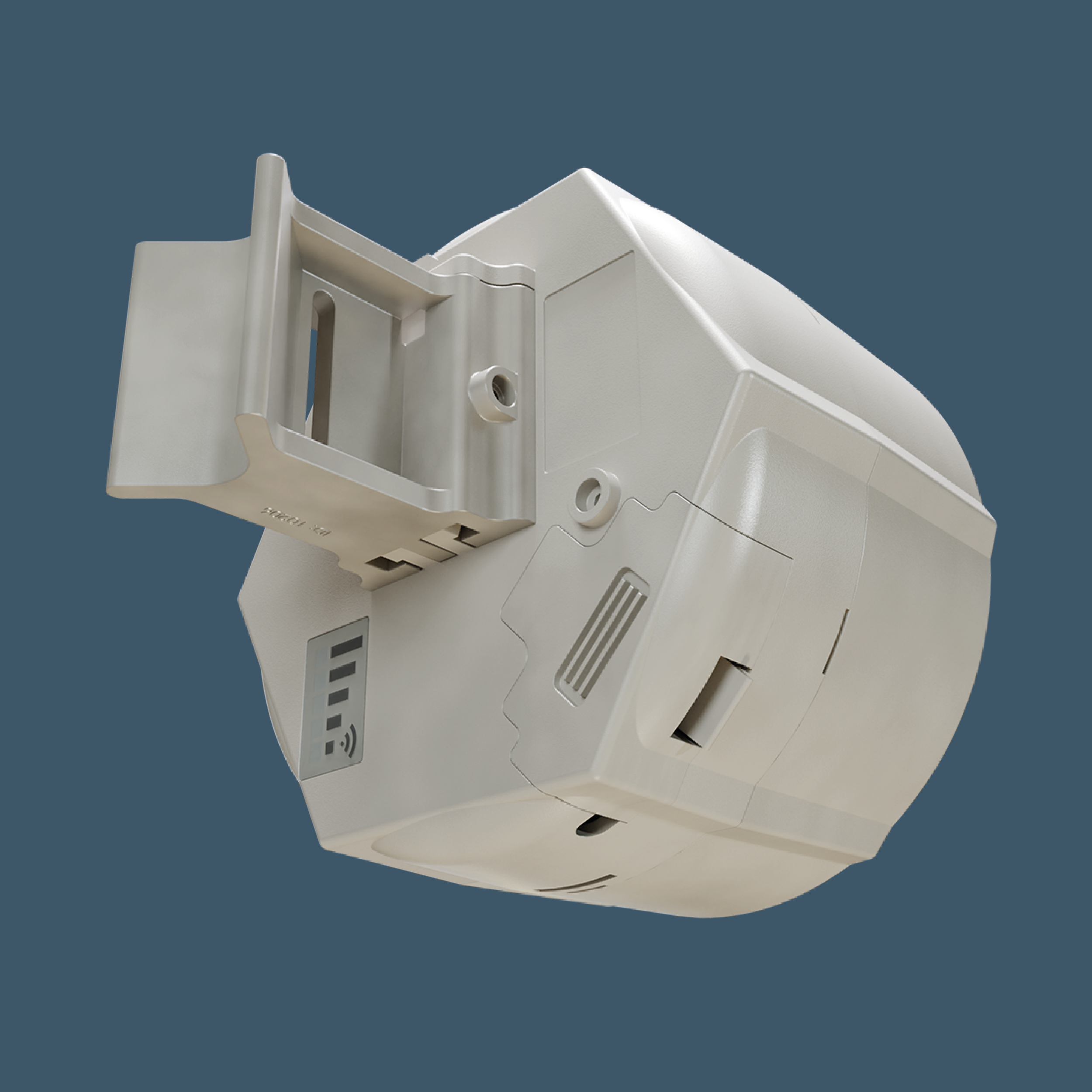

MikroTik SXT LTE7 is a complete wireless device with an integrated directional antenna, designed for outdoor installation. It features an LTE Cat 7 modem and supports aggregation of two bands. The maximum theoretical mobile transmission throughput is 300 Mb/s for downloading and 100 Mb/s for uploading. It offers better performance than its predecessor—the SXT LTE6—while maintaining a lower price. The device is equipped with two Fast Ethernet ports (10/100 Mb/s). The first port provides PoE input, and the second one serves as an output. This expands the capabilities of the SXT LTE7 and allows you to connect an additional device, such as an external access point. Power cannot be supplied in any other way than through PoE; the set includes a suitable power adapter and PoE injector. The SXT LTE7 is designed for mounting on a pole or a suitable antenna bracket. Since the device has an integrated directional antenna, it must be aimed at the transmitter station you intend to use.

A wireless device with an integrated LTE Cat 7 modem

The offered product is a complete wireless device equipped with an LTE Cat 7 modem. It is the successor to the previously available SXT LTE6, providing a higher transmission category and additional bands at a lower price than its predecessor. The maximum theoretical throughput is 300 Mb/s for downloading and 100 Mb/s for uploading (aggregation of two LTE bands). The modem is backward compatible with the 3G standard and supports most bands available in Europe. You can find the full list of supported frequencies in the specification below the description. The SXT LTE7 is an all-in-one solution—simply connect an Ethernet cable and a SIM card.

Directional antenna

Inside the enclosure there is an integrated directional antenna, which provides significantly better range than standard omnidirectional antennas. It will help you improve connection quality especially in rural and suburban areas, in locations far from transmission stations. Keep in mind that the device should be pointed toward the base station you intend to use.

2 Fast Ethernet ports, PoE input and output

The SXT LTE7 is equipped with 2 Fast Ethernet ports (10/100 Mb/s). The first port features a PoE input (passive or 802.3af/at standard), while the second provides a PoE output (with voltage matching the input). The SIM slot is located inside the enclosure. The set includes a 24 V DC / 1.2 A power adapter and a suitable PoE injector.

For outdoor use

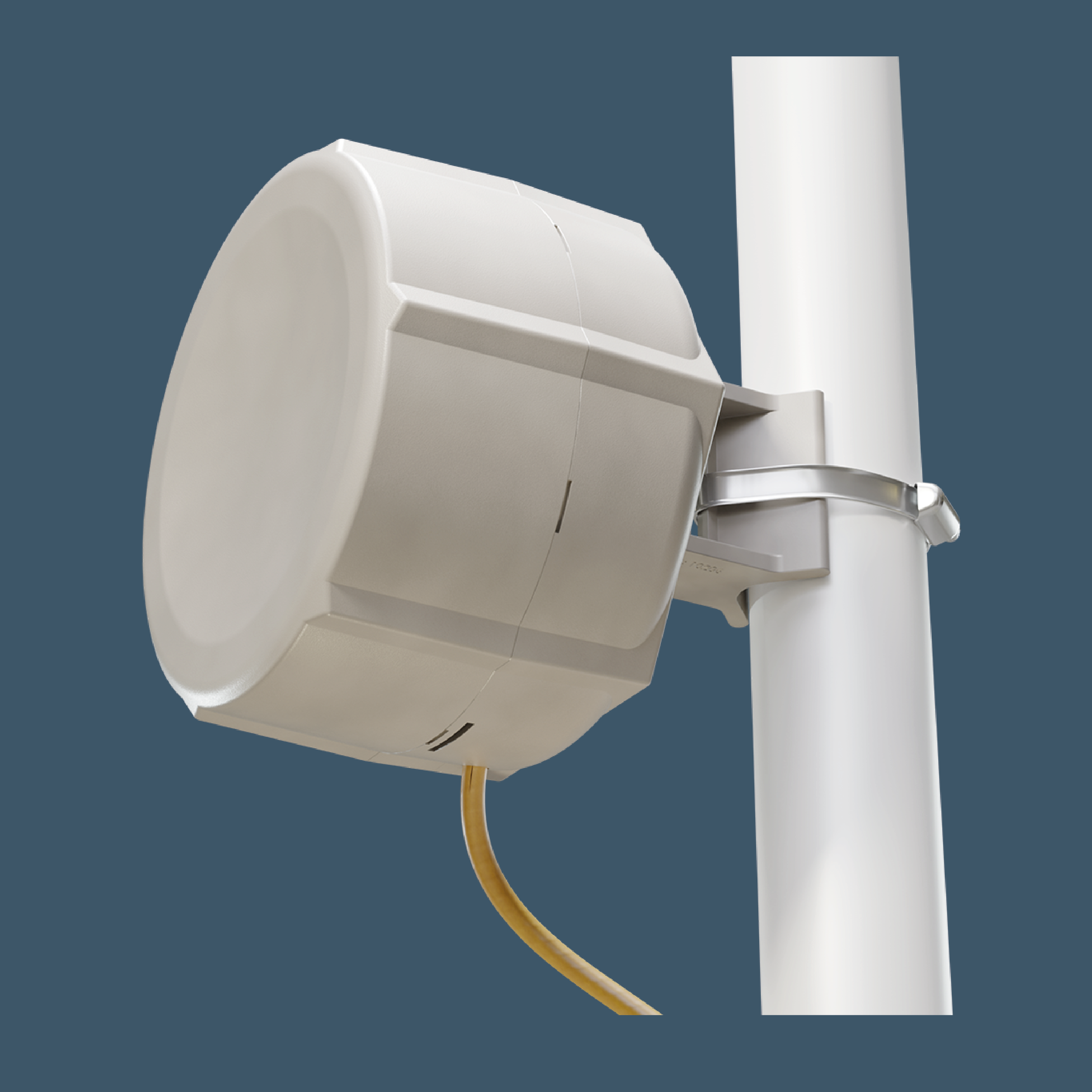

The device is fully designed for outdoor use, with a UV-resistant enclosure and components protected against water ingress. Using the accessories included in the set, the SXT LTE7 can be mounted on a pole.

A versatile device

The MikroTik SXT LTE7 is a solution suitable for a wide range of locations and applications. Thanks to its integrated design (antenna and radio module in a single enclosure), it greatly simplifies the mounting and installation process. The RouterOS software provides advanced configuration options, setting the device apart from the competition. This product is ideal for single-family homes where mobile transmission is used as the primary source of internet. Due to its low price and two Ethernet ports, the SXT LTE7 is also an excellent solution for connecting remote sensors or IP cameras, allowing you to provide an internet connection while simultaneously powering another device.
