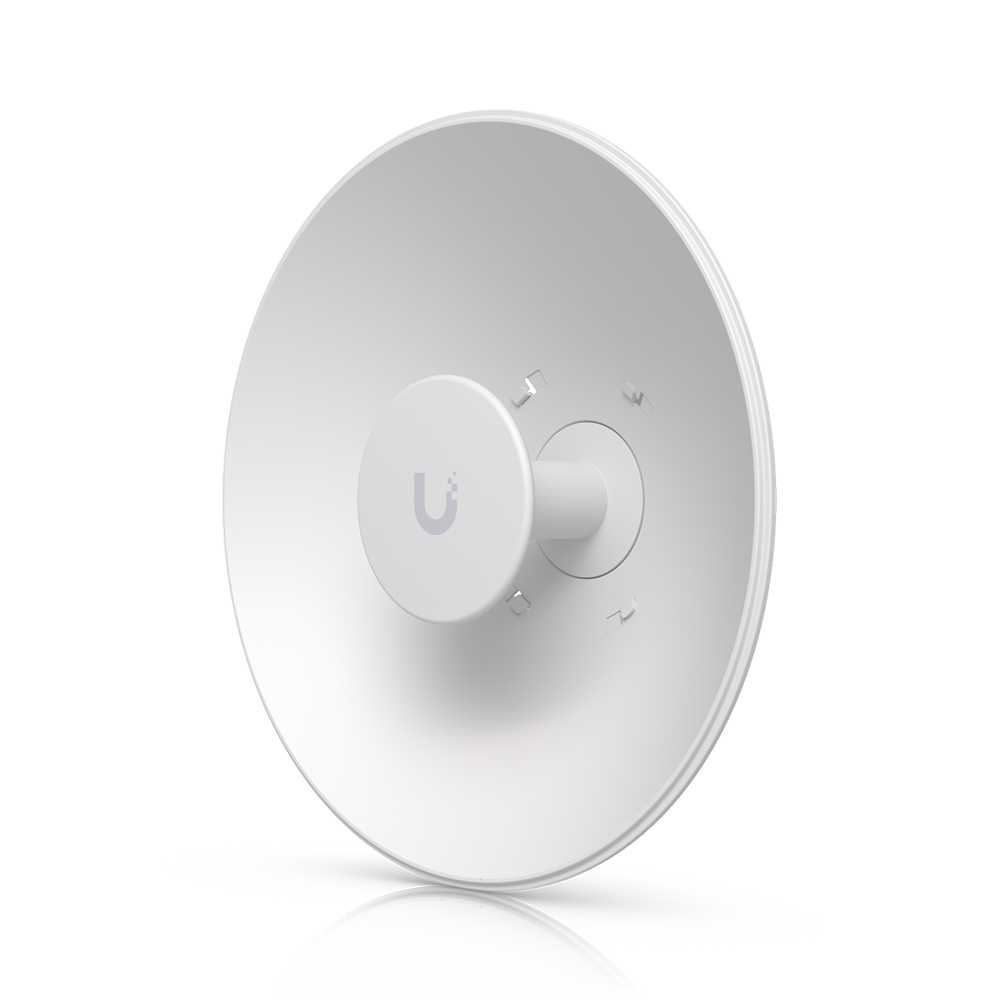

Ubiquiti UISP Dish Mini is a directional antenna designed for point-to-point connections. It operates in the 5150 MHz - 6875 MHz frequency range and uses dual polarization. The main beamwidth at 3dB ranges from 5.8° to 9° both vertically and horizontally. The gain is 26 dBi, which, according to the manufacturer, should be sufficient to establish a connection over a distance of up to 30 km. The antenna is compatible with Wave-MLO5, AF-5XHD, and RP-5AC-Gen2 radios. The outer diameter of the dish is only 42 cm, and the UISP Dish Mini is designed for outdoor installation on poles with a diameter of 32 - 76 mm.
Directional antenna 5150 - 6875 MHz for selected Ubiquiti devices
The offered product is a directional antenna designed to operate in the 5150 - 6875 MHz frequency range. The main beamwidth ranges from 5.8° to 9°, both vertically and horizontally. The directional pattern makes the UISP Dish Mini ideal for point-to-point (PTP) connections. The product is designed for direct mounting of radios such as the Wave-MLO5, AF-5XHD, or RP-5AC-Gen2.


Gain 26 dBi, diameter 42 cm, range up to 30 km
The antenna’s gain is 26 dBi, which, according to the manufacturer’s data, should be sufficient to establish a point-to-point connection over a maximum distance of 30 km. Despite its strong performance, the antenna is compact in size, with a diameter of only 42 cm.
Pole mounting, tilt adjustment
The antenna is designed for pole mounting, and the set includes a suitable mounting bracket. The bracket allows you to adjust the tilt angle in the horizontal plane within a range of +/- 20°.

Specifications
| Ubiquiti UISP-Dish-Mini | |
| Mechanical | |
|---|---|
| Dimensions | Antenna dish: Ø420 x 140 mm (Ø25.6 x 7.9") Antenna dish with Waveguide: Ø420 x 211.3 mm (Ø25.6 x 8.3") |
| Weight | Antenna dish: 1.95 kg (4.3 lb) Mount: 1 kg (2.2 lb) Waveguide: 0.45 kg (1 lb) |
| Enclosure Material | Antenna dish: Powder-coated galvanized steel, UV-stabilized polycarbonate Waveguide: Aluminum alloy, UV-stabilized polycarbonate |
| Mount Material | Powder-coated galvanized steel, aluminum alloy |
| Wind Survivability | Up to 200 km/h (124 mph) |
| Wind Loading | 348 N at 200 km/h (78 lbf at 124 mph) |
| Mounting | Pole mount Alignment mounting kit (Included) Mechanical adjustment: ±20° elevation |
| Pole Mount Diameter | Ø1.25–3" (Ø32–76 mm) |
| Weatherproofing | IPX6 |
| Hardware | |
| Frequency Range | 5.15 to 6.875 GHz |
| Beamwidth | Azimuth: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB) Elevation: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB) |
| Electrical Downtilt | 0 |
| Max. VSWR | 2:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 15 dBi |
| NDAA Compliant | Yes |
