Ubiquiti SuperLink is a gateway that enables wireless connectivity for UniFi Protect sensors. It allows the connection of up to 7 UP-Sense devices (via Bluetooth interface) and up to 96 clients compatible with SuperLink technology. The offered product operates exclusively under the UniFi Protect system; it does not support stand-alone mode and requires a controller with UniFi Protect support. The device is distinguished by its range—according to the manufacturer, it allows client connections (with SuperLink technology support) at distances of up to 2 km, provided there is a clear line of sight. You can mount the UP-SuperLink on a wall or DIN rail, and the necessary accessories are included in the package. Power is supplied via PoE (802.3af) or USB-C port; the power adapter must be purchased separately.
Gateway for UniFi Protect Sensors
The offered product is a device that enables wireless connectivity for UniFi Protect sensors. It supports both the older UP-Sense devices and the new series compatible with SuperLink technology. The device operates exclusively under the control of a UniFi Protect console, requires the use of a compatible controller, and does not support stand-alone configuration.


Up to 96 SuperLink Clients, 7 Bluetooth Clients, Long Range
You can connect up to 96 clients supporting SuperLink technology and up to 7 Bluetooth clients, including UP-Sense, to the UP-SuperLink. SuperLink is characterized by its very long transmission range—according to the manufacturer, it can reach up to 2 km with a clear line of sight.

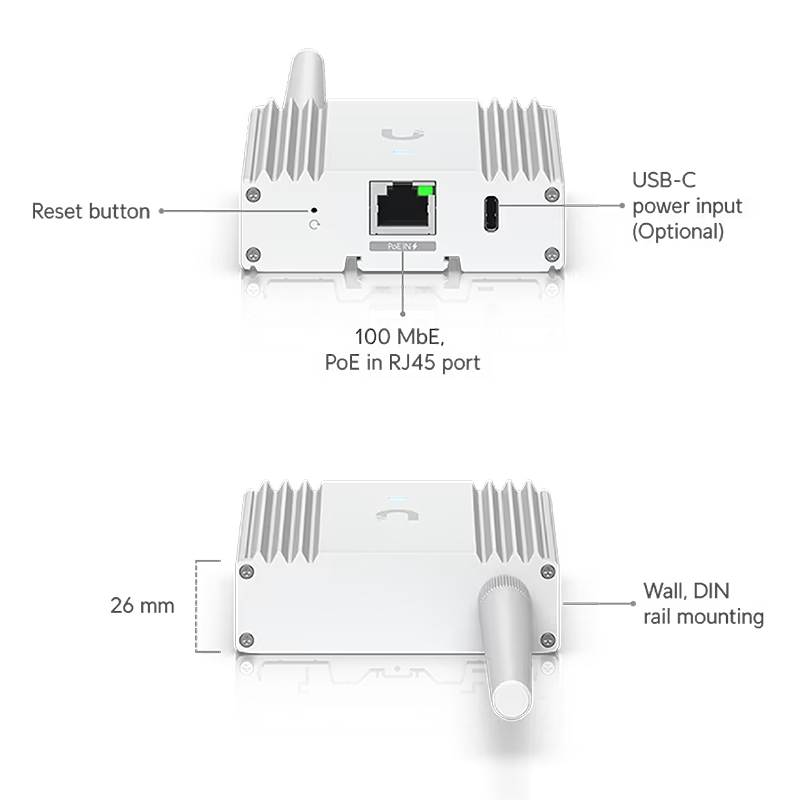

100M Ethernet Port, PoE / USB-C Power Supply
The communication device features one Fast Ethernet port (10/100 Mbps), which also serves as the PoE (802.3af) power input. Alternatively, power can be supplied via the USB-C port (5 V / 1 A). The maximum power consumption is only 3.4 W. A power adapter is not included and must be purchased separately.

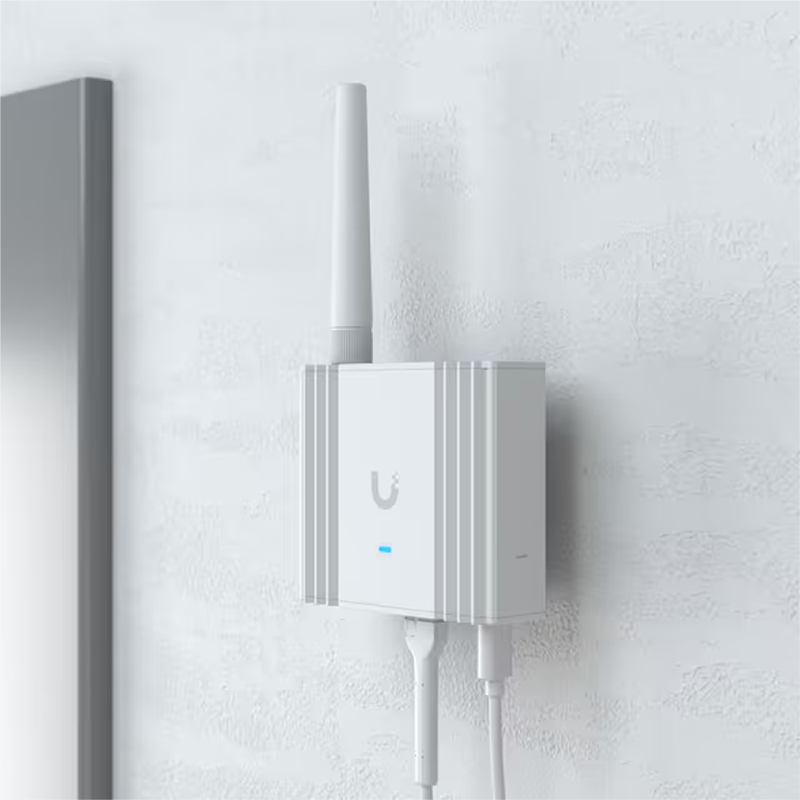

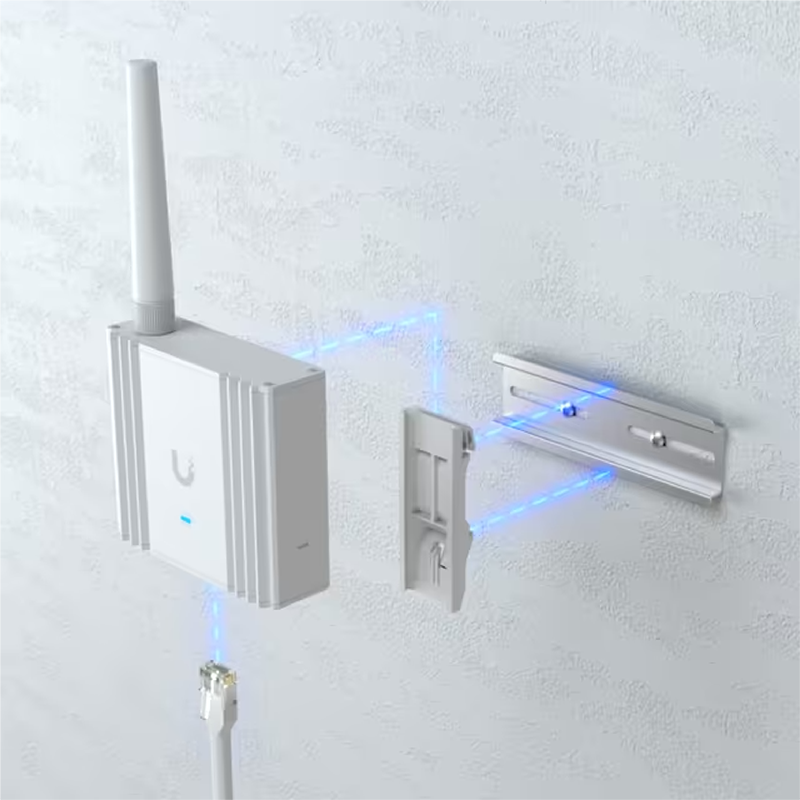

Wall / DIN Rail Mounting
Using the accessories included in the package, the UP-SuperLink can be mounted on a wall or a DIN rail. The enclosure is compact in size and made from a combination of plastic and aluminum alloy.
Specifications
Ubiquiti UP-SuperLink | |
Mechanical | |
---|---|

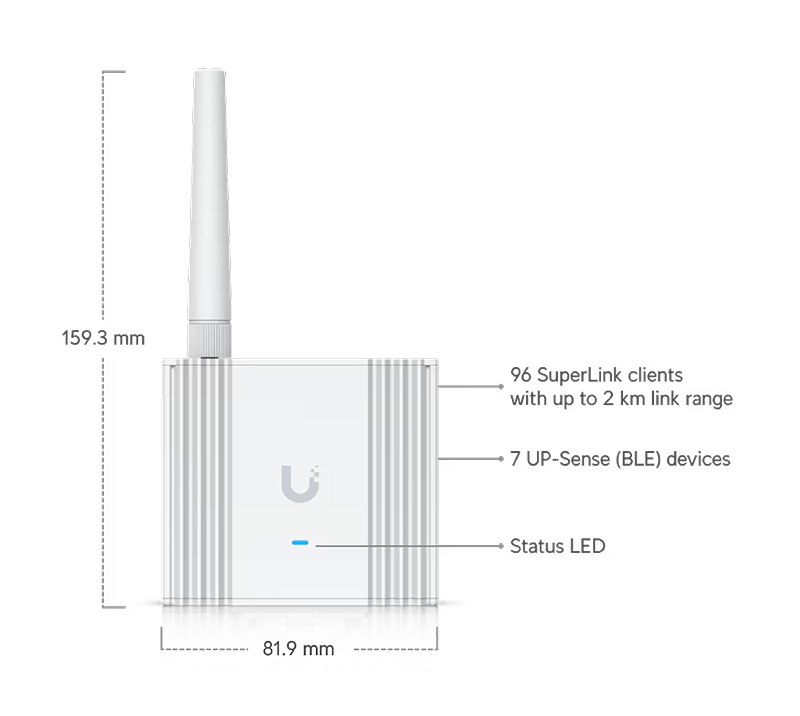

Dimensions |
With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1") With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5") With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2") |
Weight | 179 g (6.3 oz) |
Enclosure material | Polycarbonate, aluminum alloy |
Mount material | Polycarbonate |
Hardware | |
Networking interface | (1) 10/100 MbE RJ45 port |
Management interface |
Bluetooth® 5.2 SuperLink (Proprietary) |
Power method |
PoE USB Type-C, 5V, 1A (Optional) |
Max. power consumption | 3.4 W |
ESD/EMP protection |
Air: ± 8kV Contact: ± 4kV |
Antenna gain |
Bluetooth: 3 dBi SuperLink: 1 dBi |
Max. client count |
Bluetooth: 10 dBm SuperLink: 27 dBm |
Max. client count |
Bluetooth: 7 SuperLink: 96 |
LED | (1) Blue/white |
Button | (1) Factory reset |
Mounting | Wall, DIN rail |
Ambient operating temperature | 0 to 40° C (32 to 104° F) |
Ambient operating humidity | 10 to 90% noncondensing |
NDAA Compliant | Yes |
Software | |
Web application | UniFi Protect |
Mobile app | UniFi Protect iOS™ and Android™ |
