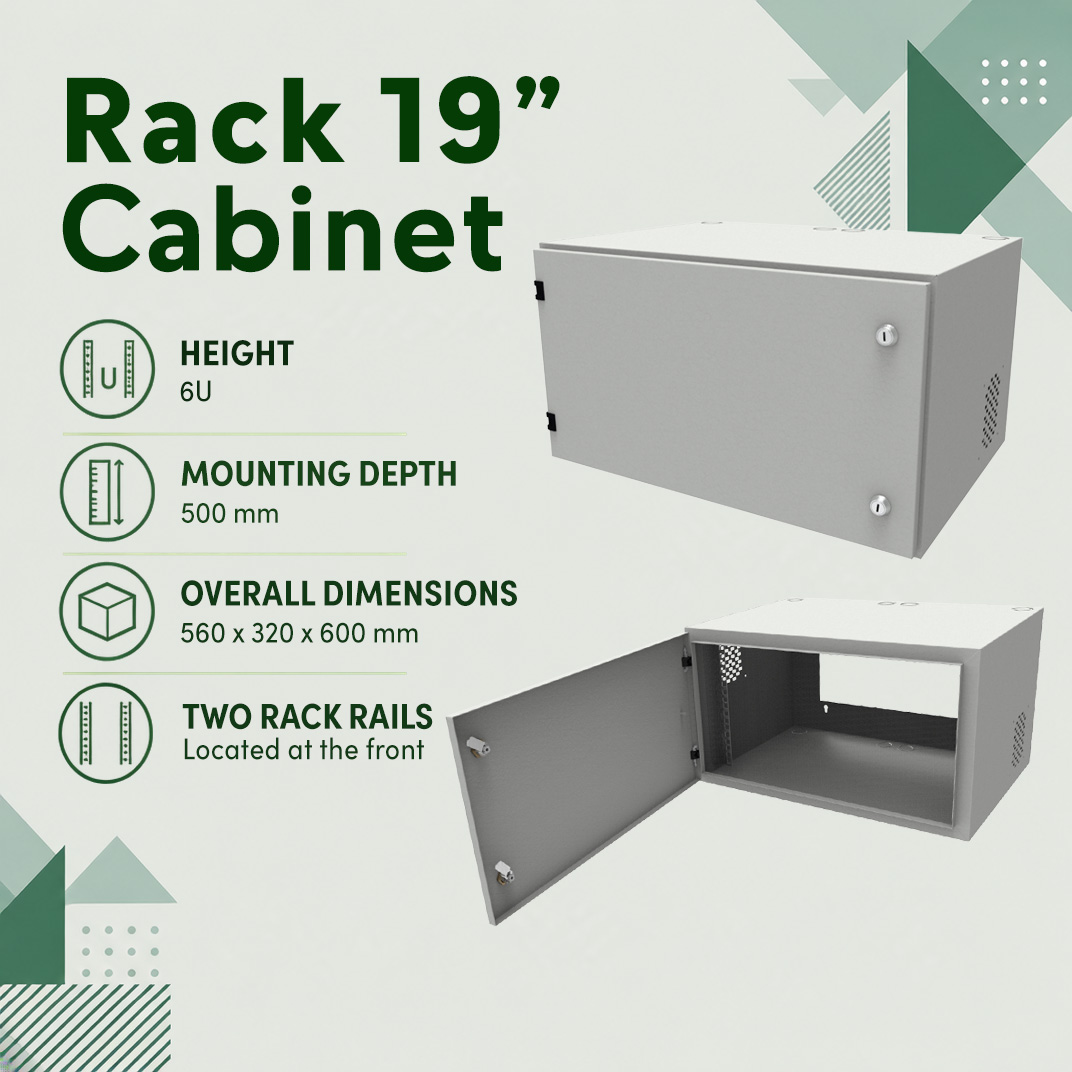

19" Rack Cabinet, 6U Height, 500 mm Deep
The offered product is a 19" Rack cabinet measuring 560 × 320 × 600 mm. It has a height of 6U and a mounting depth of 500 mm. The cabinet features two Rack rails positioned at the front, directly behind the door. Thanks to its depth, the product is suitable for installations where large devices, such as multi-port PoE switches, are used.

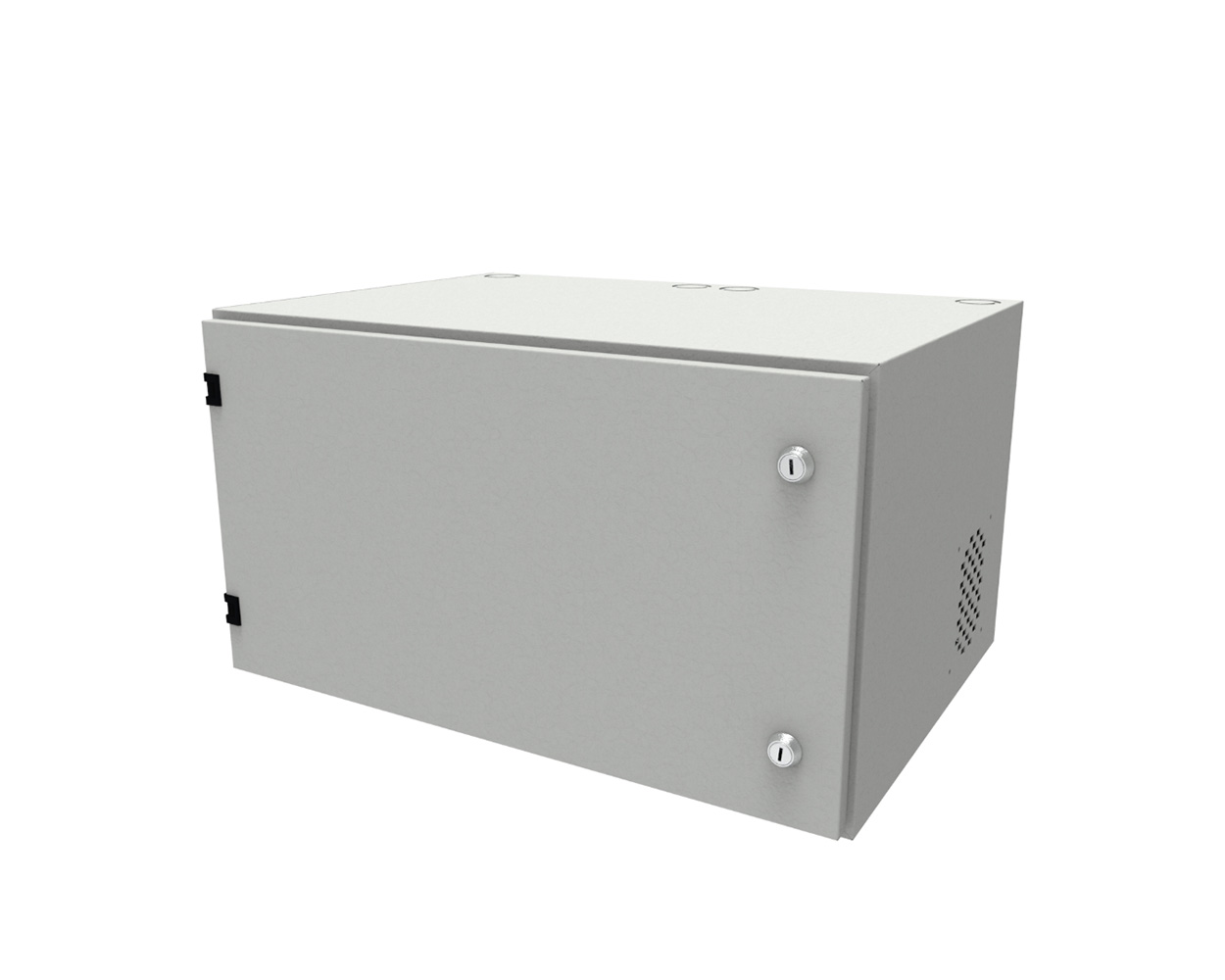

Solid Door, Wall Mounting
The front features a solid door without a window, secured with two cam locks. The cabinet is made of steel sheet coated with Magnelis and powder-coated in light grey RAL 7035. The product offers high durability and is supplied fully assembled.

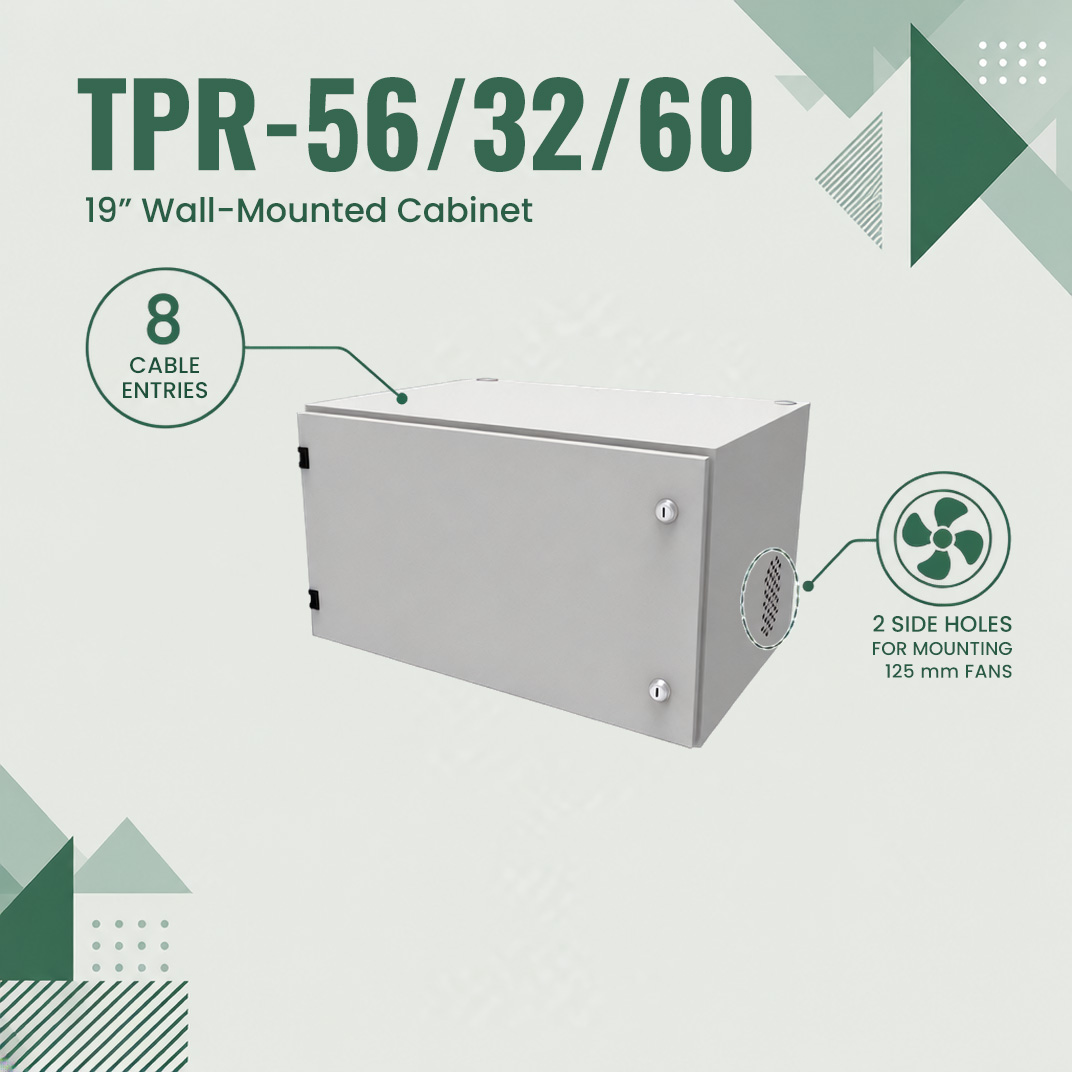

8 Cable Entries
The TPR-56/32/60 has a total of 8 round cable entry holes, 4 at the bottom and 4 at the top. There are also 2 openings on the sides of the cabinet where you can install 125 mm diameter fans. The ventilation openings ensure proper air circulation and prevent the devices from overheating.
Specyfikacja
| Opton TPR-56/32/60 | |
| Wymiary (szer. x wys. x g??b.) | 560 x 320 x 600 mm |
| Standard Rack | 19" |
| Wysoko?? | 6U |
| G??boko?? monta?owa | 500 mm |
| Liczba pionowych szyn monta?owych | 2 (z przodu) |
| Wej?cie kablowe | Za?lepka (do wybicia) |
| Wej?cia kablowe | 8 wej?? okr?g?ych (4 na dole, 4 na górze) |
| Rodzaj drzwi | Jednoskrzyd?owe |
| Typ drzwi | Pe?ne, bez szyby |
| Zdejmowane os?ony boczne | Nie |
| Wentylacja aktywna | 2 miejsca na wentylator ? 125 mm |
| Wentylacja pasywne | 2 otwory wentylacyjne po bokach, brak os?ony tylnej |
| Uziemienie | Drzwi |
| Rodzaj monta?u | Wewn?trz budynków, na ?cianie |
| Dopuszczalna temperatura eksploatacji | -40°C do 70°C |
| Stopie? ochrony | IP20 |
| Odporno?? mechaniczna | IK10 |
| Klasa palno?ci | V0 wg UL 94 |
| Waga | 8 kg |
| Wykonanie | Blacha stalowa pokryta pow?ok? Magnelis, lakierowana proszkowo |
| Kolor | Jasnoszary RAL7035 |
