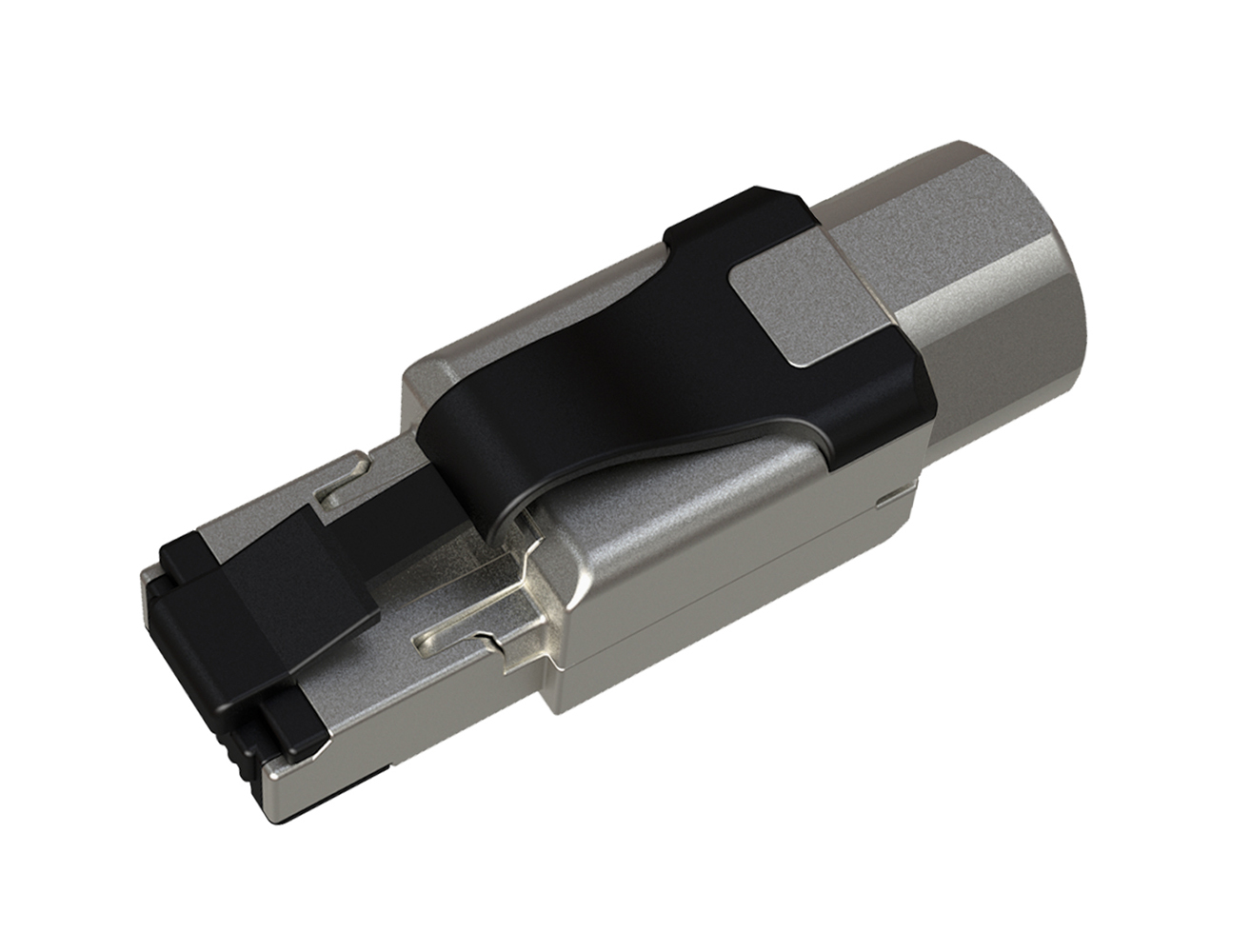

Solarix SXRJ45-6-STP-BK-SA-N CAT6 STP RJ45 MPTL toolless plug

Solarix SXRJ45-6-STP-BK-SA-N CAT6 STP RJ45 MPTL toolless plug

Marca: Solarix

Código de producto: SOL-SXRJ45-6-STPBSAN

Número de catálogo: 11144

Garantía (meses):

Precio

7,37 €

9,07 € IVA incluido

favoriteAñadir a la lista de deseos

Descripción

Self-Crimping, Shielded RJ45 Plug

The Solarix SXRJ45-6-STP-BK-SA-N is a self-crimping RJ45 plug designed for Cat.6 cables. It can be used with solid or stranded conductors with a conductor size of AWG 26–23. The recommended outer cable diameter should be between 6 and 8 mm. The product complies with the relevant standards and can be used in MPTL topology.

Specifications

Solarix SXRJ45-6-STP-BK-SA-N
Plug construction	STP, dismountable
Plug type	RJ45 8p8c
Min. contacts lifetime	1000 connections/disconnections
Contacts plating	50 μin gold
Termination	Toolless
Size and type of conductor	AWG 26 – 23, solid and stranded
Cable size	Min. Ø 6.0 mm, max. Ø 8.0 mm
Max. wire size (incl. insulation)	Ø 1.5 mm
Plug body color	Black (plastic parts) and silver (metal body)
Length	44.1 mm
Storage temperature	-25 to 70 °C
Operating temperature	-40 to 70 °C
Max. operating humidity	93%
