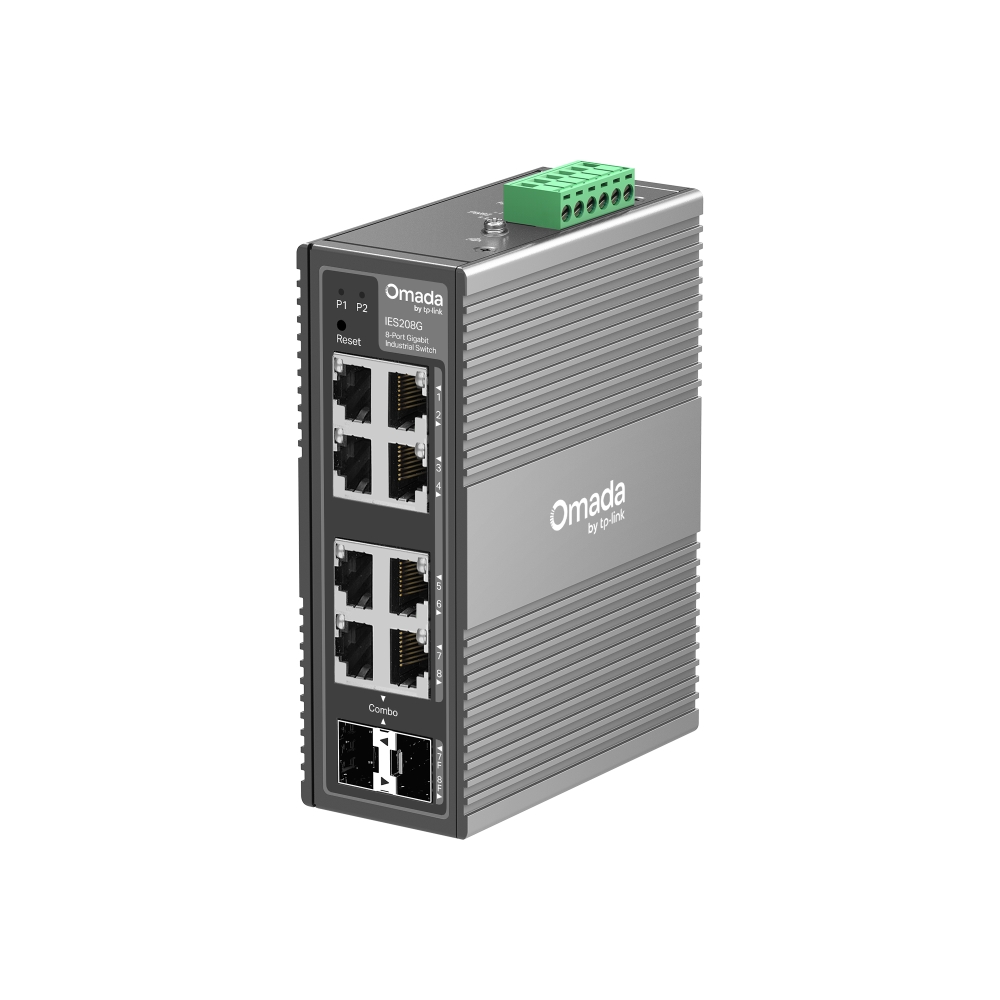

TP-Link IES208G Omada switch 8x GE, SFP

TP-Link IES208G Omada switch 8x GE, SFP

Marca: TP-Link

Código de producto: TL-IES208G

Número de catálogo: 10886

Garantía (meses):

Precio

139,35 €

171,40 € IVA incluido

favoriteAñadir a la lista de deseos

Descripción

The IES208G industrial managed switch integrates with the Omada SDN system and offers eight Gigabit RJ45 ports providing stable data transmission in local networks. The device features an IP30-rated metal housing suitable for DIN rail mounting and operates passively in a wide temperature range from -40°C to 75°C. The unit ensures high reliability through redundant DC power inputs and supports advanced Layer 2 functions, including VLAN traffic segmentation, QoS prioritization, and STP loop elimination protocols. Management is performed centrally via the Omada platform or through a local GUI interface, making the switch an ideal solution for demanding industrial environments and building automation systems.

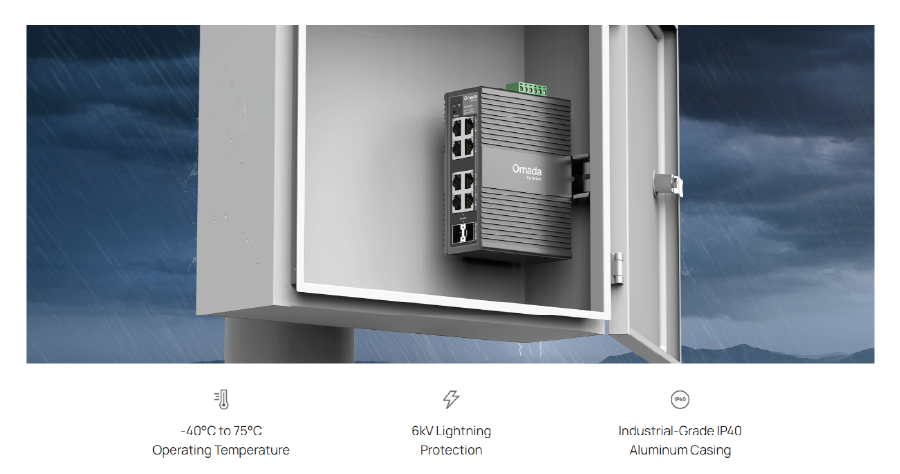

Industrial-grade Protection Built for Harsh Environments

Enhanced Network Stability and Security

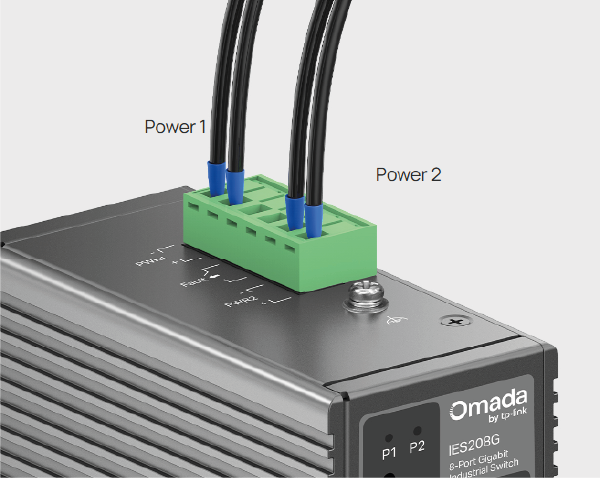

1+1 Redundant Power Input

Two power input connectors with a wide voltage range of 9.6-60V DC ensure continuous device operation even if one power supply fails.

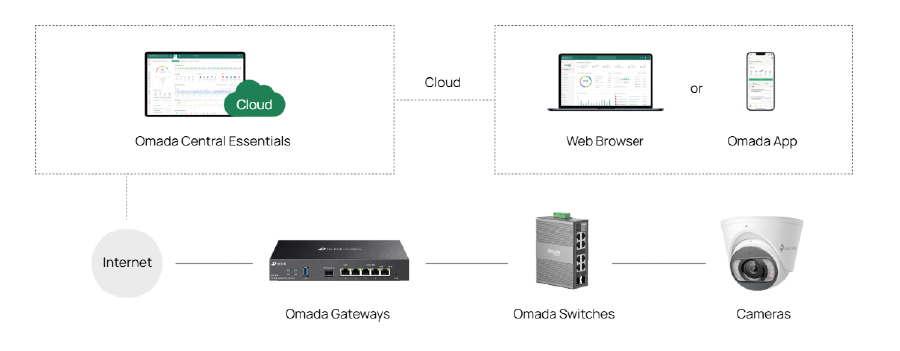

Easy Operation and Maintenance with Free Omada Cloud Management

Easy-to-use Plug-and-Play Pro, Simple setup
Free, simple, and centralized cloud management via Omada Central Essentials
Access logs and alert notifications at any time
Simple configuration of monitoring features, such as 24/7 Camera Monitoring and Auto Recovery

Flexible Deployment Options

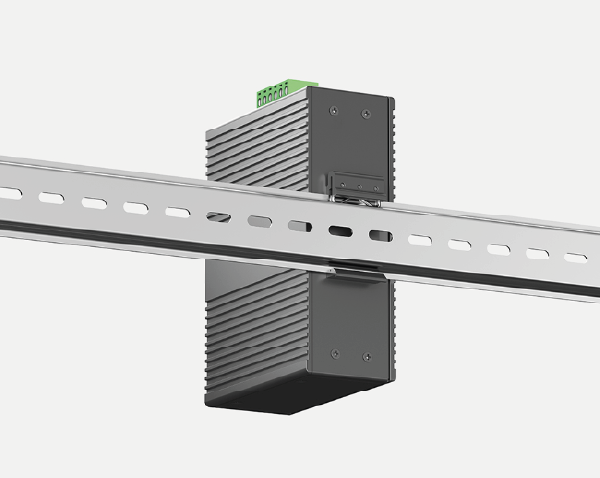

DIN Rail

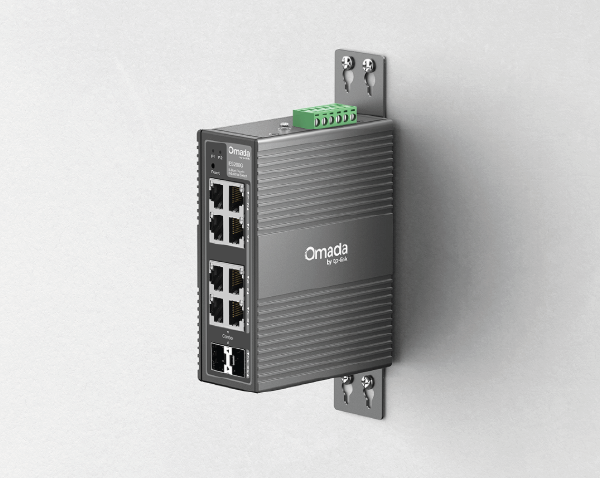

Wall

Diverse Industrial Applications

Surveillance

Automation

Energy Sector

Smart Building

Specification

Hardware Features
TP-Link IES208G
Ports	6× 10/100/1000 Mbps RJ45 Ports 2× Gigabit Combo SFP/RJ45 Ports Auto-Negotiation / Auto MDI/MDIX
Fan Quantity	Fanless
Mounting	DIN Rail Mount Wall Mount
Power Supply	1+1 Redundant DC Input, 9.6-60V
Dimensions (W x D x H)	129 × 95 × 45 mm (5.1 × 3.7 × 1.8 in)
Protection	• ±6 kV common mode for Ethernet ports • ±4 kV common mode for DC power input ports
Performance
Switching Capacity	16 Gbps
Packet Forwarding Rate	11.9 Mpps
MAC Address Table	8K
Packet Buffer	4 Mb
Jumbo Frame	15 KB
Software Features
Quality of Service	• 802.1p/DSCP priority support • 8 priority queues • Queue scheduling mode: - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port based Rate Limiting • Storm Control - Multiple control modes (kbps/p/s) - Broadcast/Multicast/Unknown-Unicast Control
L2 Features	• Link Aggregation - Static Link Aggregation - Up to 2 aggregation groups and 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirroring Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w)
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port based VLAN • 802.1Q Tag VLAN - Max 32 VLAN groups - 4K VIDs
Transmission Method	Store-And-Forward
Management
Omada App	Yes. Requires use of Omada Hardware Controller, Cloud-Based Controller, or Software Controller.
Centralized Management	Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller
Cloud Access	Yes. Requires use of Omada Hardware Controller, Cloud-Based Controller, or Software Controller.
Zero-Touch Provisioning (ZTP)	Yes. Requires use of Omada Cloud-Based Controller.
Management Features	Web-based GUI DHCP Client Cable Diagnostics Digital Diagnostic Monitoring (DDM) Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Unified Configuration
Others
Package Contents	IES208G Unit DIN Rail Mount Kit Wall Mount Plates Installation Guide
Environment	Operating Temperature: -40?~75? (-40?~167?) Storage Temperature: -40?~85? (-40?~185?) Operating Humidity: 10%~95% non-condensing Storage Humidity: 5%~95% non-condensing
