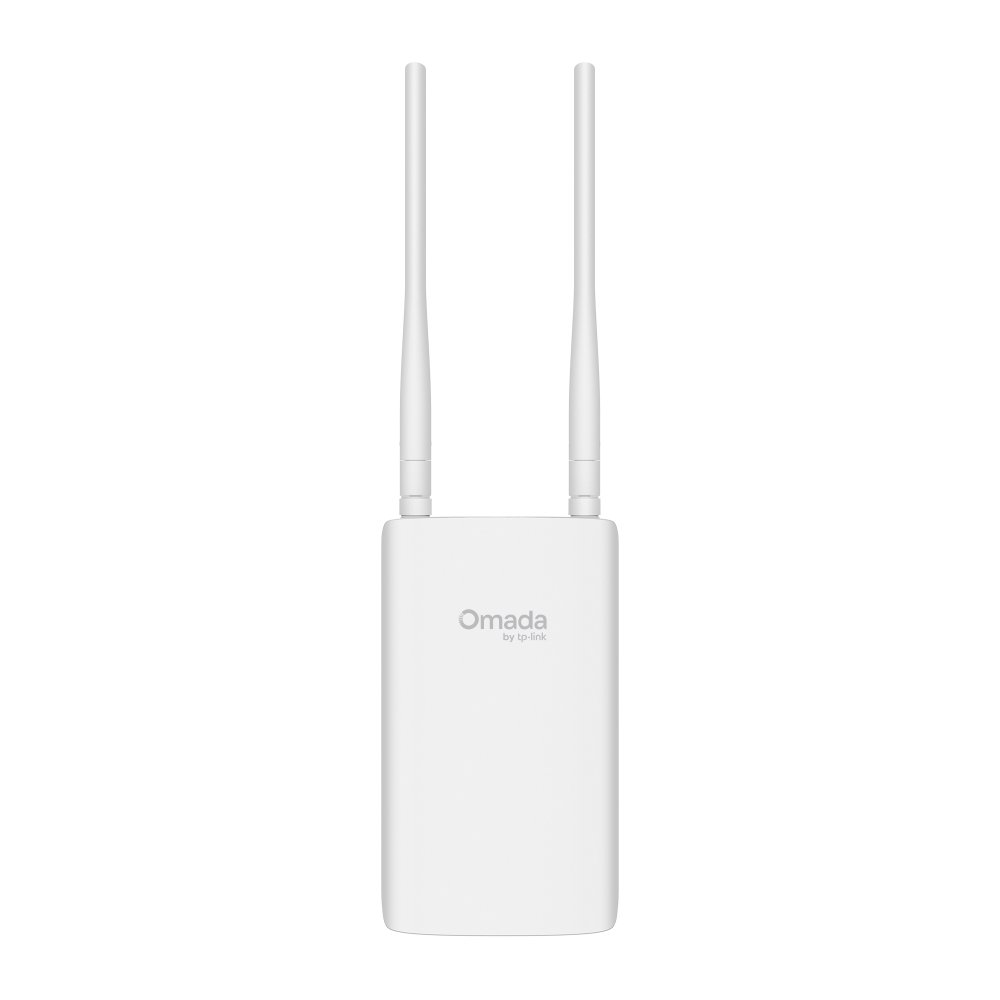

TP-Link EAP603-Outdoor Access Point Wi-Fi 6 AX1800, 1x Gigabit, PoE

TP-Link EAP603-Outdoor Access Point Wi-Fi 6 AX1800, 1x Gigabit, PoE

Marca: TP-Link

Código de producto: TL-EAP603-OUTDOOR

Número de catálogo: 10869

Garantía (meses):

Precio

96,25 €

118,39 € IVA incluido

favoriteAñadir a la lista de deseos

Descripción

TP-Link EAP603-Outdoor is a professional, dual-band access point operating in the Wi-Fi 6 (AX1800) standard, designed for stable operation both indoors and outdoors. The device offers a total throughput of up to 1800 Mbps, with 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, ensuring efficient support for modern applications and multiple users simultaneously. The robust enclosure with a high IP67 protection rating guarantees full resistance to harsh weather conditions, such as heavy rain, dust, and extreme temperatures, making it an ideal solution for open areas, parking lots, or industrial facilities. EAP603-Outdoor utilizes advanced 802.11ax technologies, including OFDMA and MU-MIMO, which optimize bandwidth usage and reduce latency in environments with high client density. Thanks to full integration with the Omada SDN ecosystem, the access point allows for centralized management of the entire infrastructure from the cloud, a hardware controller, or a software controller. Support for Omada Mesh technology enables wireless connection of units to extend coverage without the need for additional cabling, and the Seamless Roaming function ensures users a smooth transition between transmitters without interrupting data transmission. The device is equipped with a gigabit Ethernet port supporting PoE (802.3at) power supply, which significantly simplifies installation on poles or walls using the included mounting kits. Network security is enhanced by modern WPA3 encryption protocols, client isolation features, and advanced MAC address filtering.

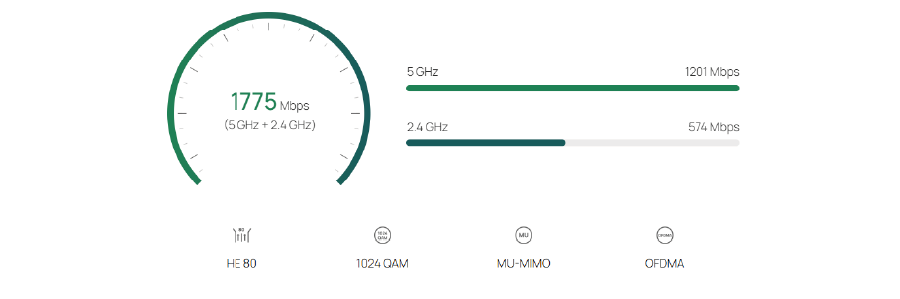

Boost Your Business with Wi-Fi 6

The Ideal Outdoor Wi-Fi Solution

Long-Range Coverage

2 external antennas, high-power amplifiers, and Wi-Fi 6 technology ensure strong and extensive wireless coverage in various outdoor environments.*

Flexible Mounting

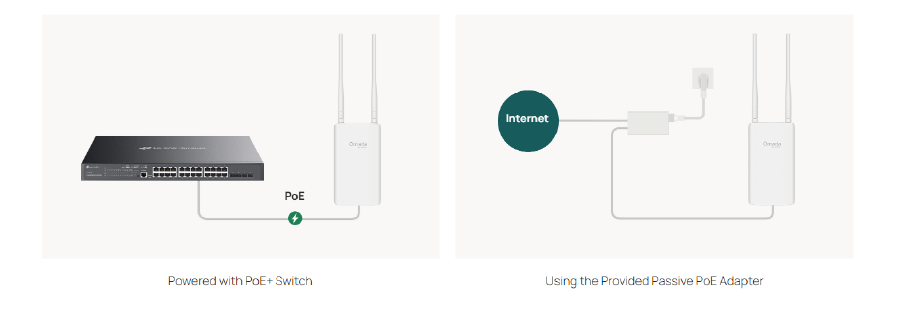

PoE Power Supply

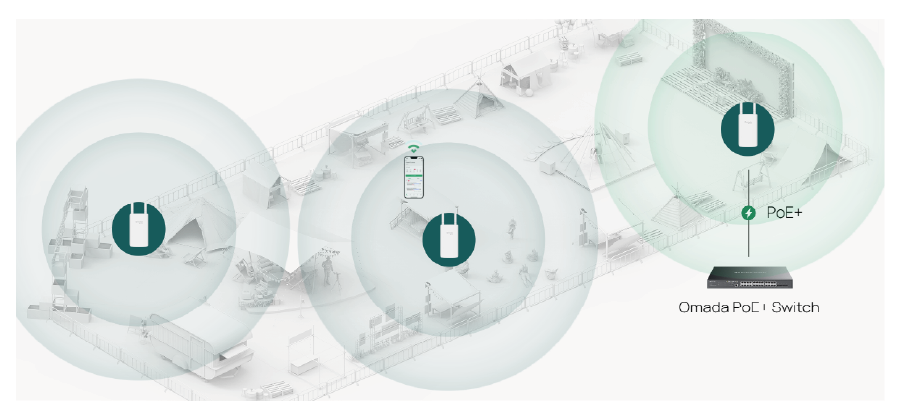

Seamless Mesh Connectivity with Roaming

Ensure your clients have uninterrupted streaming while moving around the area, thanks to the ability to automatically switch their devices to the access points offering the optimal signal.

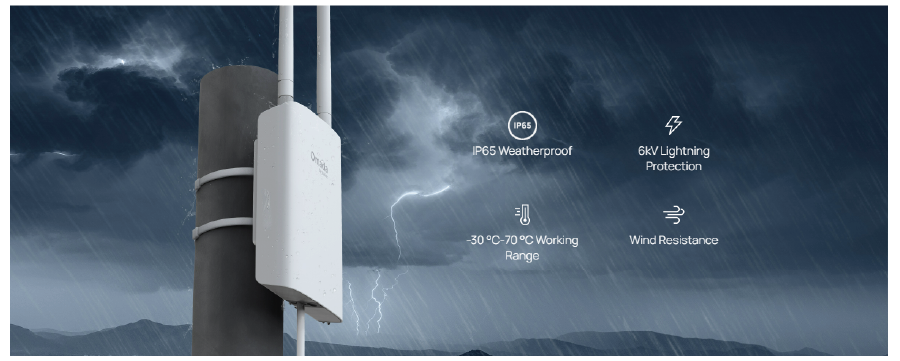

Designed for Outdoor Environments

The sealed enclosure of the EAP603-Outdoor access point provides protection against dust and water immersion. The device will easily handle the harsh conditions found outdoors.

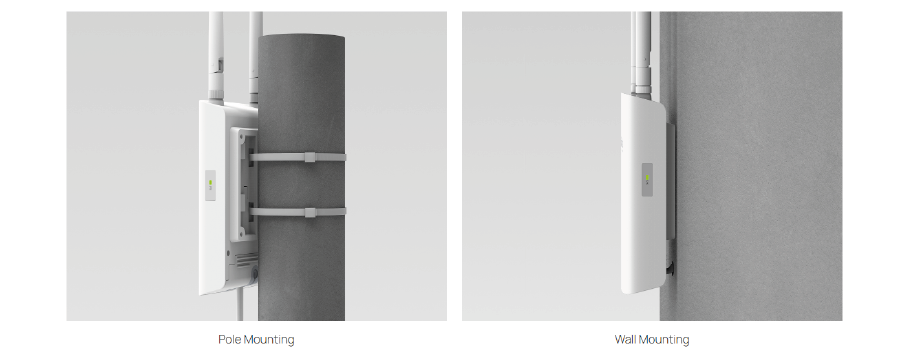

Quick and Simple Installation

The device offers the possibility of wall or pole mounting.

One-Click Configuration in Omada SDN

Omada SDN allows users to quickly configure the EAP603-Outdoor through automatic device identification and one-click adoption.

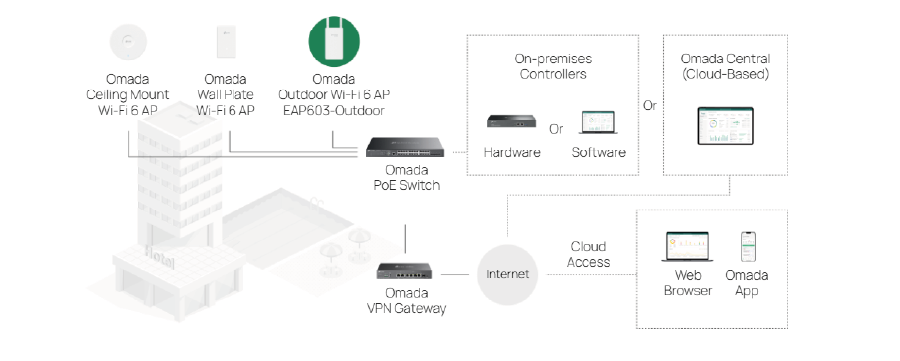

Reliable Omada SDN Solution for Business

The Omada Software-Defined Networking (SDN) solution seamlessly integrates access points, managed switches, and gateways, enabling 100% centralized cloud management and a highly scalable network.

Specification

Hardware Features
TP-Link EAP603-Outdoor
Ports	1x 10/100/1000 Mbps RJ45 Ethernet Port (PoE IN) 1x Grounding Terminal
Buttons	1x Reset Button Pressing this button for more than 5 seconds will restore the device to factory settings.
Power Supply	Input: 802.3at PoE+: 42.5 - 57 V, 0.36A
Power Consumption	802.3at (PoE+): 15.8W, 2.4GHz 2×2 transmitter, 5GHz 2×2 transmitter, wired link speed up to 1Gb/s Idle Mode: 4.8W (PoE)
Dimensions	Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in) Package: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in)
Antennas	Wi-Fi • 2.4 GHz: 2 × 4 dBi (max gain), external omnidirectional antennas • 5 GHz: 2 × 5 dBi (max gain), external omnidirectional antennas *Note: The above gains refer to individual antenna gains. IoT • Bluetooth: 1 × 4 dBi (max gain), internal omnidirectional antenna
Bluetooth	Yes
Weatherproof Enclosure	IP66 for wall mounting IP65 for pole mounting
Mounting	• Pole Mounting • Wall Mounting (Mounting accessories are included in the set)
Wireless Features
Signal Coverage	2.4 GHz: up to 200 m 5 GHz: up to 300 m
Wireless Standards	5 GHz: IEEE 802.11a/n/ac/ax 2.4 GHz: IEEE 802.11b/g/n/ax
Frequency	5 GHz 2.4 GHz
Signal Rate	2.4 GHz: up to 574 Mbps 5 GHz: up to 1201 Mbps *Note: Restrictions may apply depending on the country of use
Wireless Functions	Max BSSID: 16 (8 per band) Max Concurrent Clients: 250+ Guest Network ACS (Automatic Channel Selection) Airtime Fairness Band Steering 802.11 Rate Control Rogue AP Detection URL Filtering WLAN Optimization AP Association SSID/Client Rate Limit Load Balancing Seamless Roaming (802.11k/v/r, Non-Stick Roaming, Ping-Pong Roaming Suppression, AI Roaming)§ Multicast/Broadcast Management (Multicast to Unicast, ARP to Unicast, Multicast Filtering, Multicast/Broadcast Rate Limit) QoS (Quality of Service)
Wireless Security	ACL MAC Filtering 802.1X Authentication MAC-based Authentication WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open and None Radius Accounting PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS, Generic Radius without bound MAC) Captive Portal: No authentication, Simple password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-authentication Access and Client without Authentication EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, and PEAPv1
Transmission Power	Max Transmit Power: CE (EIRP) • 2.4 GHz: 20 dBm • 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C, Min Transmit Power: CE (EIRP) • 2.4 GHz: 7 dBm • 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3 Power Adjustment Step: 1 dBm *Note: Combined MIMO power, without antenna gain. Actual transmit power depends on local laws and regulations
Management
Omada App	Yes
Backup & Restore	Yes
Web-based Firmware Upgrade	Yes
NTP	Yes
Centralized Management	Omada Hardware Controller Omada Software Controller Omada Central (Cloud-based) Omada App
Cloud Access	Yes (Requires Omada Controller)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
SSH	Yes
Web-based Management	Yes
Others
Package Contents	EAP603-Outdoor Passive PoE Adapter Power Cord Installation Guide Mounting Kit Waterproof Kit
Operating Environment	Operating Temperature: -30?–70? (-22?–158?) Storage Temperature: -40?–70? (-40?–158?) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing
