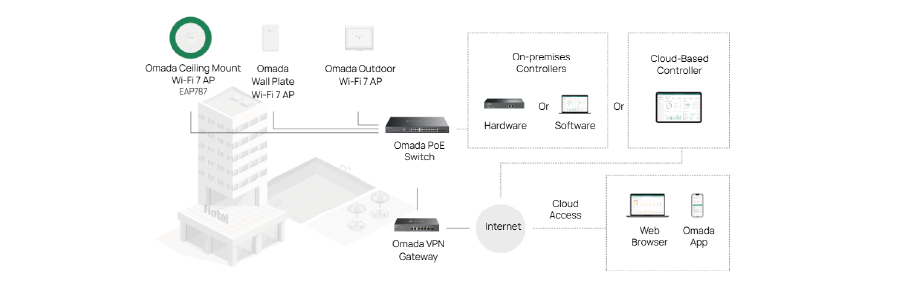

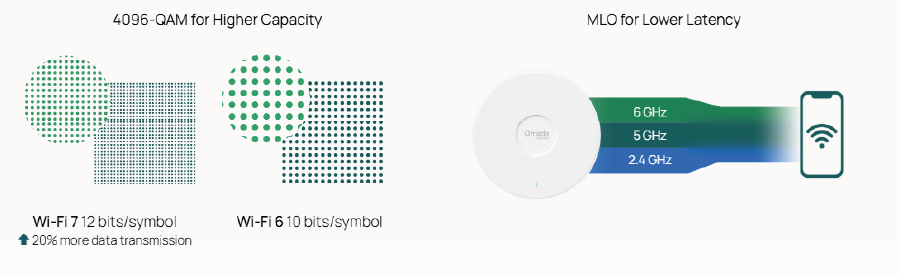

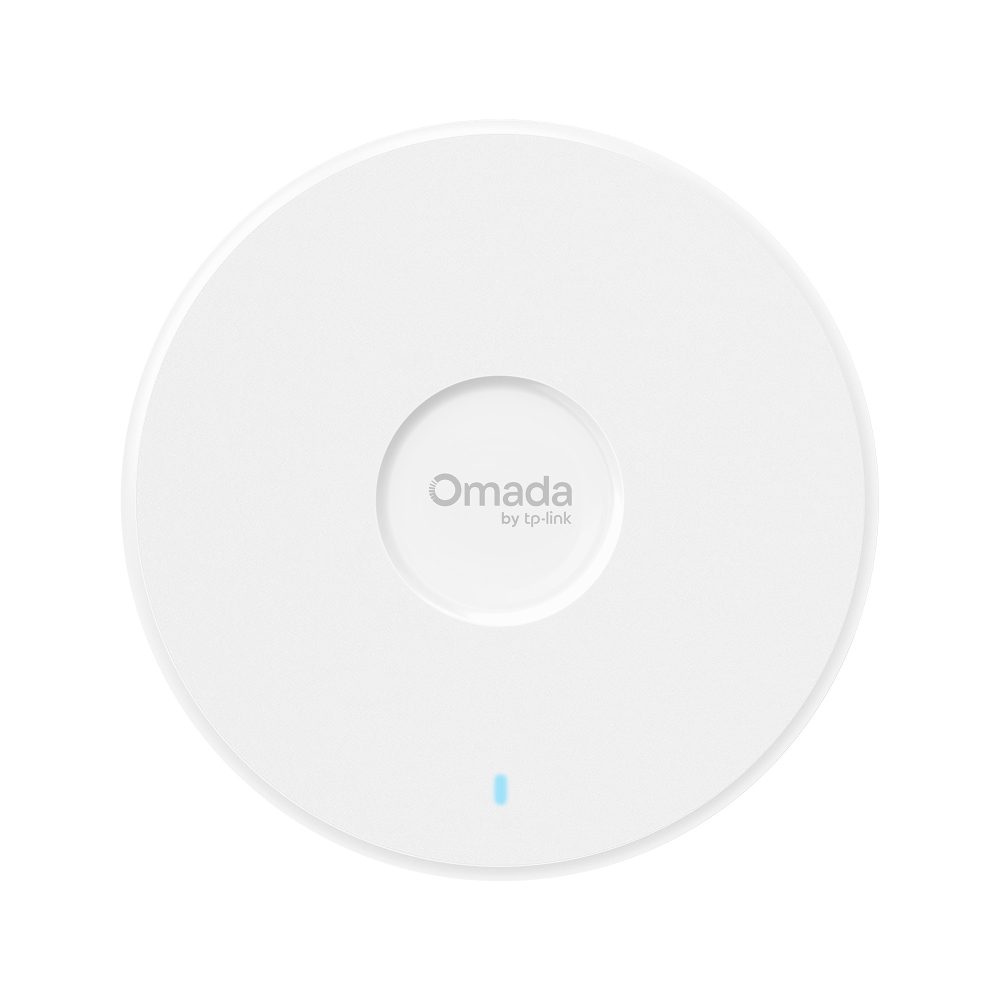

TP-Link EAP787 is a professional ceiling mount access point operating in the latest Wi-Fi 7 (802.11be) standard, offering a total theoretical throughput of up to 12000 Mbps. The device operates simultaneously in three bands: 2.4 GHz, 5 GHz, and 6 GHz, allowing for significant reduction in interference and optimization of traffic in modern network environments. Thanks to the Wi-Fi 7 standard, the access point utilizes channels with a width of up to 320 MHz in the 6 GHz band and 4K-QAM modulation, which translates into significantly higher performance and lower latency compared to previous generations. EAP787 is equipped with a 10 Gb/s Ethernet port, which eliminates bottlenecks in wired transmission and allows for full utilization of the BE12000 potential. Advanced technologies such as Multi-Link Operation (MLO) enable client devices to transmit data simultaneously across different bands, while Multi-RU and Puncturing functions optimize the use of available radio spectrum. The device fully integrates with the Omada SDN platform, enabling centralized management of the entire network infrastructure from the cloud or a hardware controller. The housing is designed for discreet ceiling mounting, and power is supplied via the PoE++ standard or a dedicated DC power adapter, facilitating installation in locations with difficult access to power outlets.

End of Wi-Fi dead zones
Deco is the simplest way to ensure a strong wireless signal throughout your home. A single Deco unit covers an area of up to 180 m2. Wireless connections and an optional Ethernet backhaul link Deco units together, providing an even faster network and the smoothest roaming. Need more Wi-Fi coverage? Simply add another Deco unit.


Configuration via App
Installing Deco M4 is quick and easy. Unpack the Deco, install the app, and then follow the on-screen instructions.
Simple Management
With the Deco app, you can manage your network from home or on the go. The app allows you to verify connected devices, assign priorities, or configure a guest network, among other things.

End of Wi-Fi dead zones
Deco is the simplest way to ensure a strong wireless signal throughout your home. A single Deco unit covers an area of up to 180 m2. Wireless connections and an optional Ethernet backhaul link Deco units together, providing an even faster network and the smoothest roaming. Need more Wi-Fi coverage? Simply add another Deco unit.

Specification
| TP-Link EAP787 | |
| Hardware Features | |
|---|---|

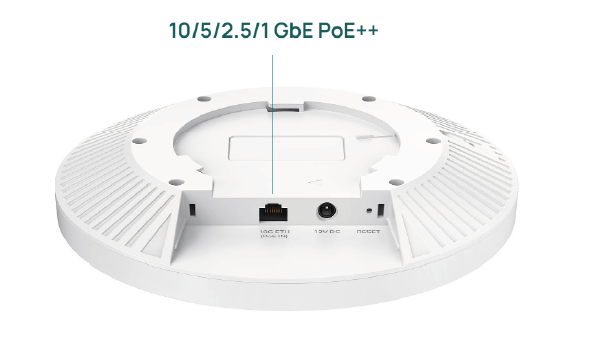

| Ports | 1x 10G/2.5G Ethernet Port |
| Buttons | Reset |
| Power Supply | 802.3bt/at PoE or 12V/2.5A DC |
| Power Consumption | 26.3 W (PoE Supply) 22.4 W (DC Supply) |
| Dimensions | 220 × 220 × 38.8 mm (8.7 × 8.7 × 1.5 in) |
| Antennas | 2.4 GHz: 2× 4.0 dBi 5 GHz: 4× 5.0 dBi 6 GHz: 2× 5.0 dBi |
| Bluetooth | 1× 5 dBi (Max gain), Internal antenna module * Software update may be required. |
| Mounting | Ceiling, wall, or junction box mount (mounting kit included) |
| Wireless Features | |
| Signal Coverage | 190 m² * |
| Concurrent Clients | 510+ ** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 5765 Mbps (5 GHz) + 5765 Mbps (6 GHz)† |
| Wireless Functions |
320 MHz Bandwidth‡ |
| Wireless Security | Portal Authentication? Access Control MAC Filtering Wireless Isolation between clients VLAN Rogue AP Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | 6-20 dBm (2.4 GHz, EIRP) 9-23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP) 9-30 dBm (5 GHz, U-NII-2C, EIRP) 6-23 dBm (6 GHz, EIRP) |
| Management | |
| Omada App | Yes |
| Centralized Management | Omada Central (Cloud-based) Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes (Requires Omada Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Log | Yes |
| Web-based Management | Yes |
| Others | |
| Package Contents | EAP787 Installation Guide Mounting Kit Note: Power adapter is NOT included |
| Operating Environment | Operating Temperature: 0?–40? (32?–104?) Storage Temperature: -40?–70? (-40?–158?) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing |
