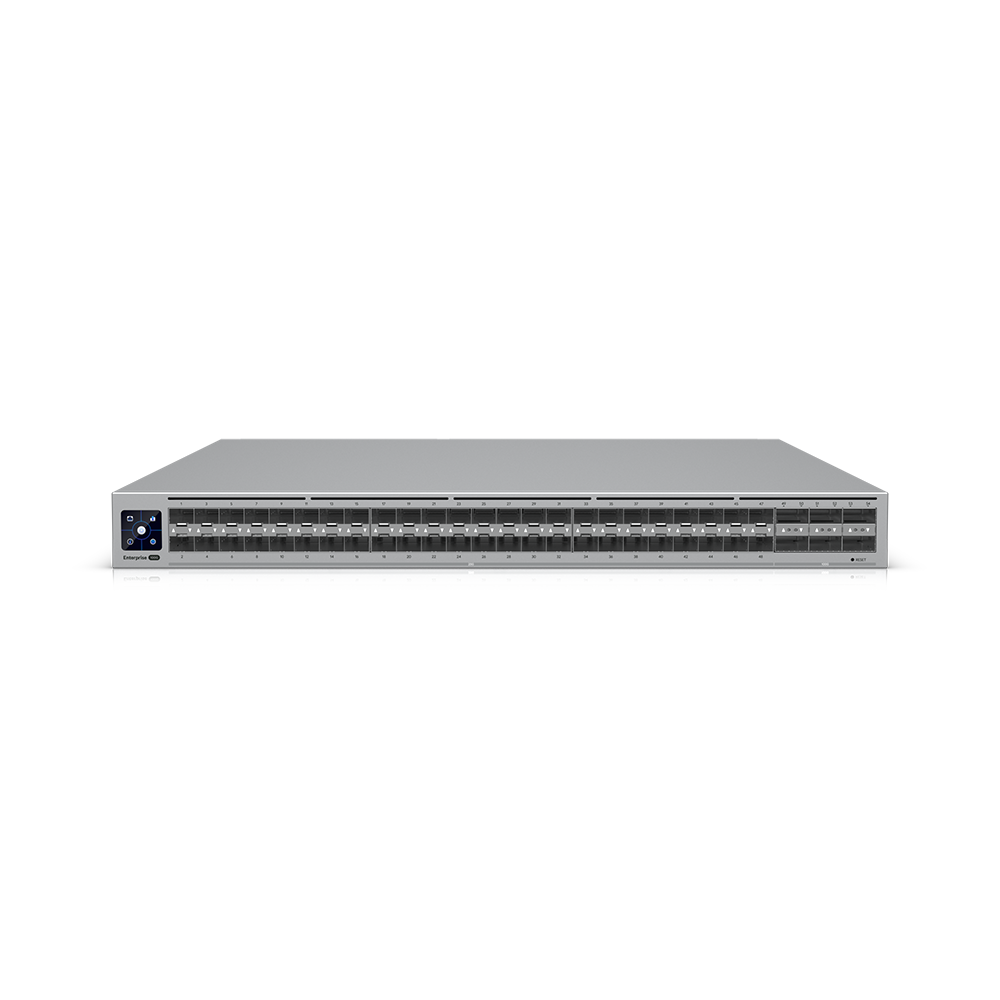

Ubiquiti Enterprise Campus Aggregation is a managed switch designed to operate within the UniFi system. It is equipped with 48 × SFP28 slots (25 Gb/s) and 6 × QSFP28 slots (100 Gb/s), offering a non-blocking switching capacity of 1.8 Tb/s and a packet forwarding rate of 2.4 Bp/s. It provides advanced Layer 3 management features, including DHCP server, DHCP relay, Inter-VLAN routing, and static routing. The ECS-Aggregation is ideal for large, complex networks, serving as either an aggregation or core switch depending on the network size and requirements. The device features a 19" rack-mountable enclosure and comes with two AC hot-swap power modules (550 W each) and five hot-swap ventilation modules. Due to its weight, the manufacturer recommends installation using 4 rails.

UniFi Enterprise L3 Switch

The offered product is a managed switch designed to operate under the UniFi system. It is part of the Enterprise series, intended for use in large, advanced networks. It supports Layer 3 features such as DHCP server, DHCP relay, Inter-VLAN routing, and static routing. In addition, it supports numerous standard Layer 2 functions, with the full list available in the specification below the description. An important advantage is support for MC-LAG (Multi-Chassis Link Aggregation), which allows for redundancy of connected devices or load balancing.

48 × SFP28 slots (25G), 6 × QSFP28 slots (100G)

The switch is equipped with 48 × SFP28 slots with a maximum throughput of 25 Gb/s and 6 × QSFP28 slots with a maximum throughput of 100 Gb/s. The total switching capacity of the device reaches 1.8 Tb/s, making it suitable for most networks, even large-scale ones with many users. The SFP28 slots can operate at 10G or 25G, and the QSFP28 slots at 40G or 100G. This allows the ECS-Aggregation to be used even when upgrading an older network that does not yet fully support new standards.

Redundancy

The device is designed for uninterrupted operation, featuring hot-swap power and ventilation modules. Additionally, it supports MC-LAG, allowing you to pair the device with other ECS Aggregation units. With proper configuration, the entire UniFi network can be protected against the failure of individual devices.

Application

The ECS-Aggregation is designed for use in large, complex UniFi networks where high throughput and advanced management are required. It is an Enterprise-series solution, built for the most demanding locations with a large number of users. It provides essential reliability and redundancy on multiple levels and stands out for its high performance. It can be used as either a core switch or an aggregation switch, depending on the network topology and requirements.
