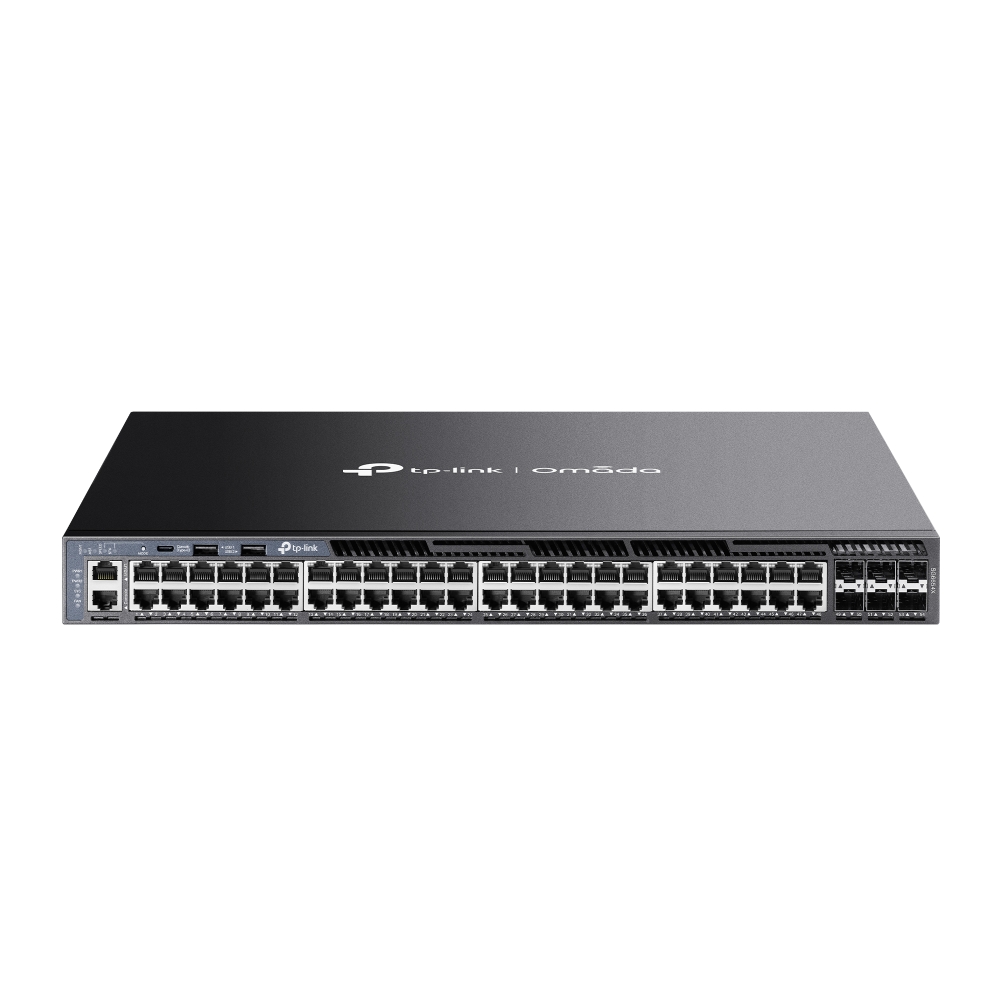

The SG6654X is a professional, managed aggregation switch operating at Layer 3 (L3), fully compatible with the Omada SDN system. Designed as a stackable device, it is ideally suited as a distribution element in extensive infrastructures. The switch is equipped with 48 Gigabit Ethernet (GE) ports and 6 SFP+ 10G slots for ultra-fast backbone connections. It should be noted that this model does not support Power over Ethernet (PoE).
The SG6654X provides full support for L2 management functions and advanced L3 routing protocols, including static routing, OSPF, RIP, and VRRP. The physical stacking capability allows multiple units to be combined into a single logical switch, which simplifies management and increases network reliability. The switch is adapted for mounting in a 19" Rack cabinet (1U), has a built-in AC power supply, and the option to connect a redundant power supply (RPS) to ensure continuity of operation. Management is performed via the Web interface or the centralized Omada SDN platform.

Product Application

The Omada SG6654X is a managed Layer 3 switch that offers L3 Routing, high 10 Gbps wired speed, stacking, and redundant power supplies, meeting the needs of the convergence layer. It is equipped with 48 Gigabit RJ45 ports, 6 SFP+ 10 Gbps slots, and physical stacking capability. High-level security and advanced management features ensure this switch provides reliable performance in SMB, Enterprise, and ISP network applications.

High-Speed Connectivity and Efficient Stacking

The 48 Gigabit RJ45 ports and 6 10 Gbps SFP+ slots provide up to 216 Gbps of switching capacity per unit. Physically stacking a maximum of 8 units strengthens the network structure thanks to its performance and built-in redundancy.

Extensive Layer 3 Capabilities

The switch is equipped with multiple Layer 3 routing protocols supporting network scaling. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM and PIM-SM multicast routing protocols ensure efficient routing for multicast groups.

High Availability

Internal, integrated, redundant power supplies and VRRP are the ideal choice for a reliable network architecture. ERPS supports fast protection and recovery in ring topology.

Advanced Security Features

Network protection against multiple threats is provided by ACL (IPv4 and IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell (SSH).

Omada SDN

The Omada system offers centralized cloud management and multiple management features, such as Zero-Touch Provisioning (ZTP)*. The Software-Defined Networking (SDN) Omada platform integrates the operation of network devices, including access points, switches, and gateways, providing completely centralized cloud management from a single interface.

In addition to centralized management via the Omada application, the SG6654X switch can also be easily managed via the web configuration page or the Command Line Interface (CLI). In both cases, traffic is protected by SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON allow the switch to be queried for valuable information and for trap messages to be sent in case of unexpected events.
