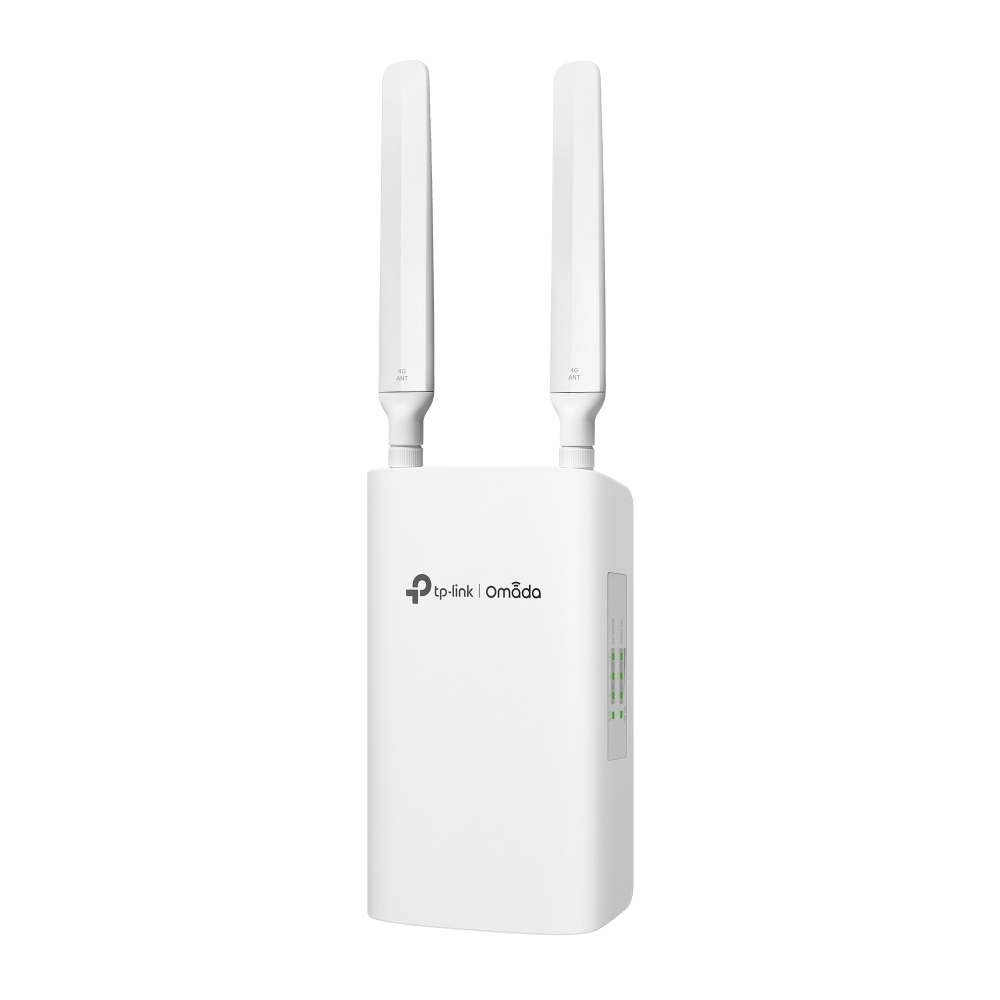

TP-Link ER703WP-4G-O ggigabit outdoor Omada router4G+, Wi-Fi 6, AX3000, 3x GE, nanoSIM
Precio
239,66 €
294,78 € IVA incluido
favoriteAñadir a la lista de deseos
The TP-Link ER703WP-4G-Outdoor is an outdoor/indoor Gigabit VPN Omada Gateway with enhanced durability, combining the functions of a router, 4G/LTE modem, and Wi-Fi 6 access point. The AX3000 class device offers dual-band Wi-Fi 6 with speeds up to 2976 Mbps. WAN connectivity is provided by an integrated 4G+ Cat6 modem (up to 300 Mbps) with two SIM slots, supporting redundancy, and two Gigabit RJ45 ports, one of which is a dedicated WAN port, and the other a WAN/LAN port. The device can operate in Multi-WAN mode and is additionally powered by PoE (802.3af/at). The gateway enables secure connections through IPsec, SSL, WireGuard, and OpenVPN protocols and is fully managed within the Omada SDN ecosystem.
Ideal for Outdoor Use

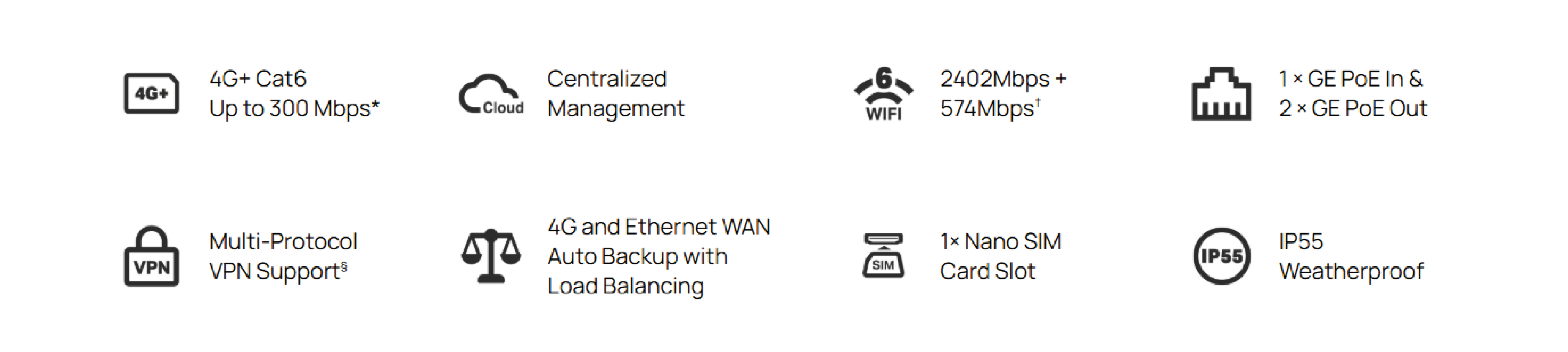

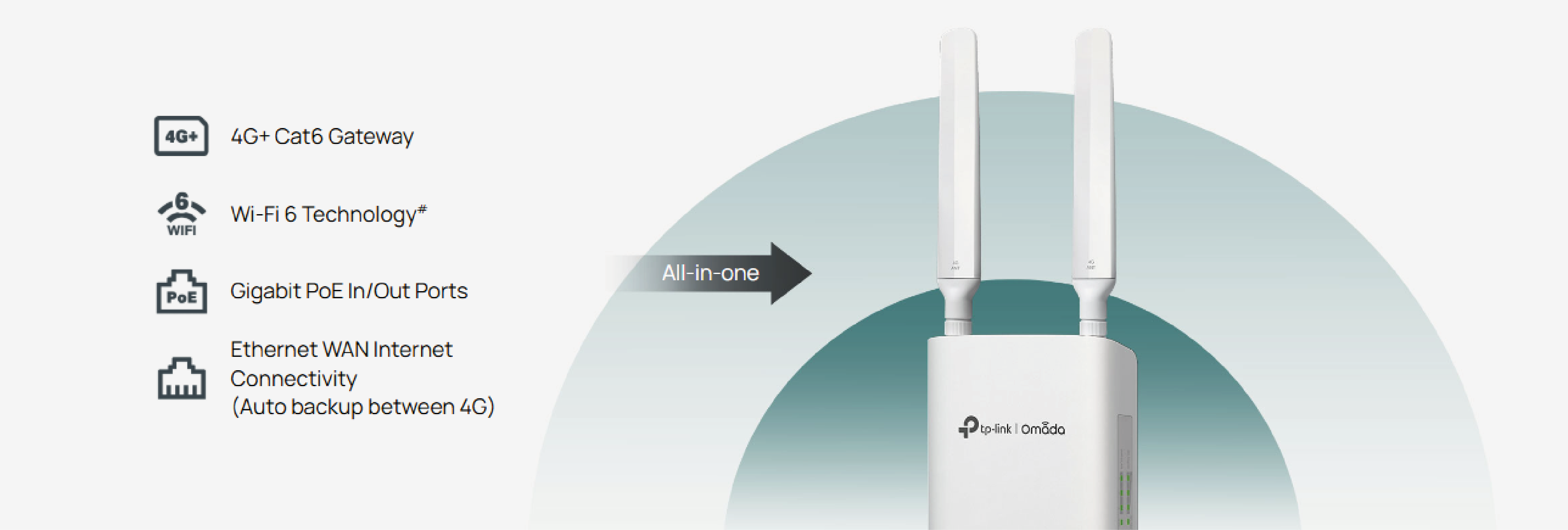

All-in-One Device
The ER703WP-4G-Outdoor combines 4G internet access, Wi-Fi 6 technology, and 3 Gigabit PoE ports (1 input, 2 output). It also offers automatic failover and load balancing between 4G and wired WAN. Benefit from a versatile and efficient network gateway that you can deploy without any issues.

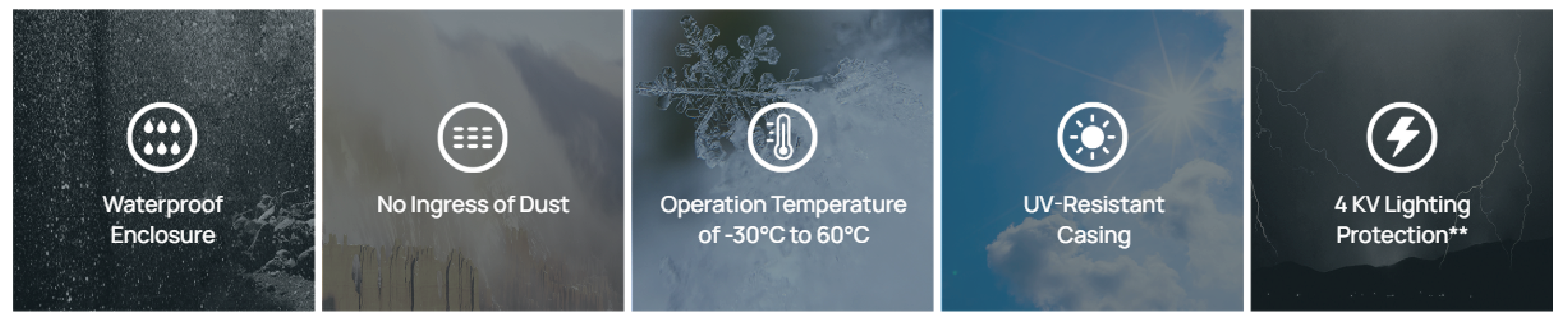

Weatherproof Enclosure, Designed for Outdoor Use
The device enclosure has received an IP55 ingress protection rating. The gateway can handle challenging outdoor conditions.

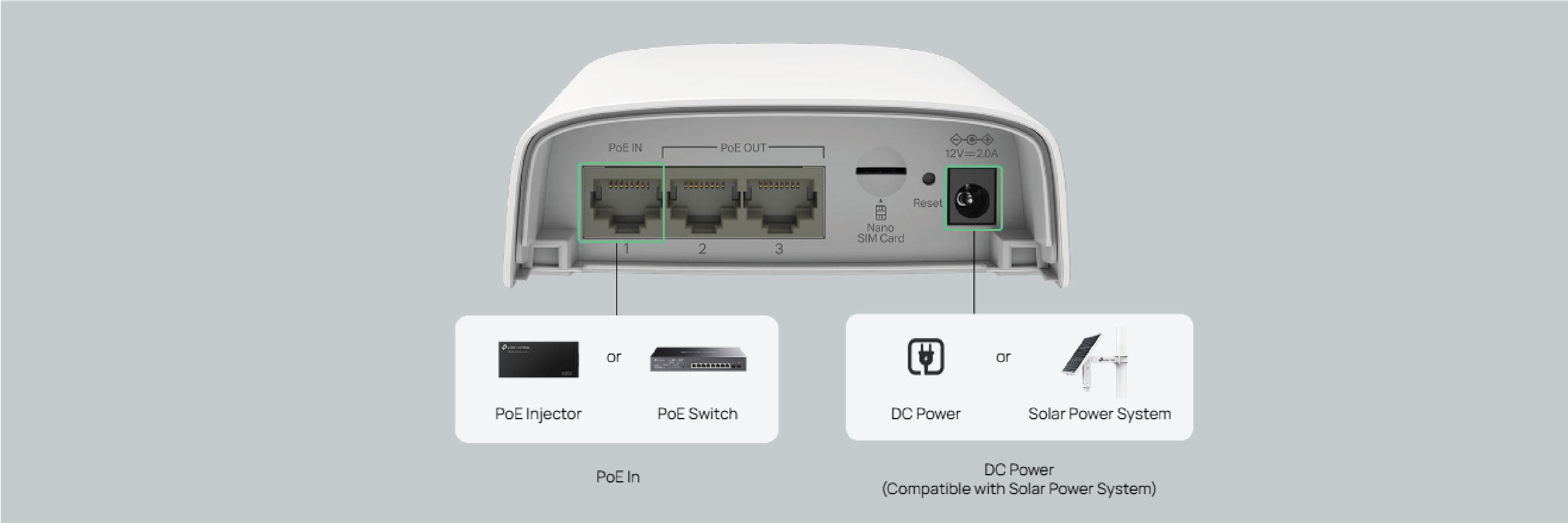

Multiple Power Options
The ability to be powered by PoE (Power over Ethernet) or DC (compatible with solar panels) overcomes limitations of network access.
Easy Installation and Deployment in Standalone and Controller Mode

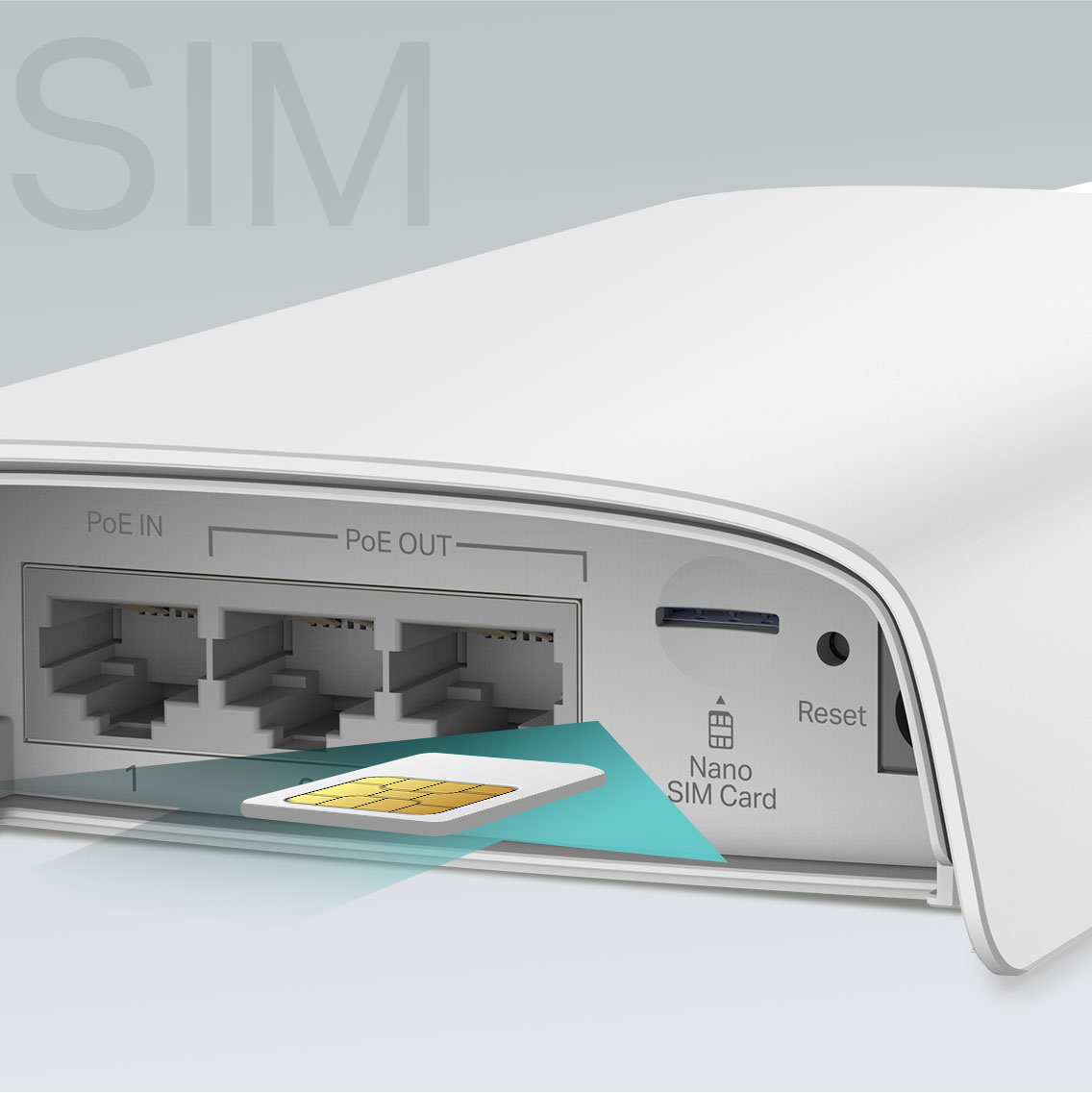

Plug and Play
Insert a Nano SIM card or connect to the Ethernet WAN port for a Gigabit Wi-Fi network. Enjoy seamless connection of surveillance cameras via cable or wireless network.

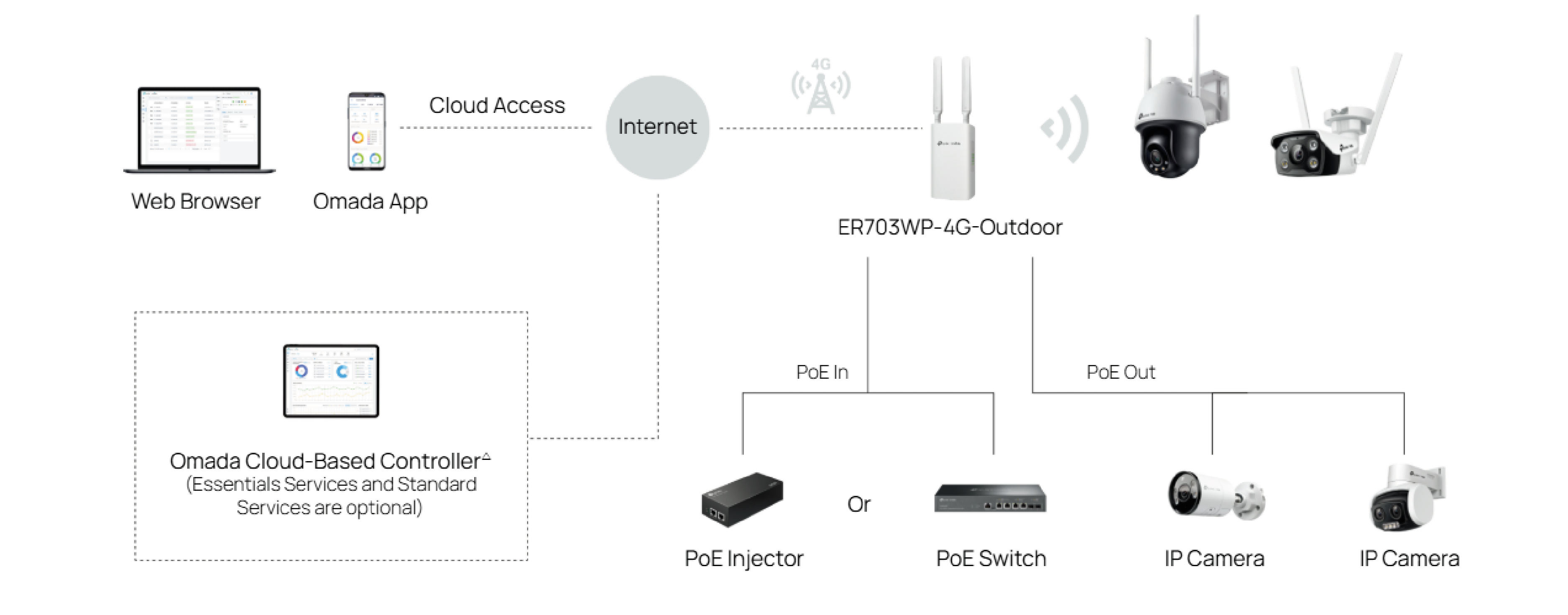

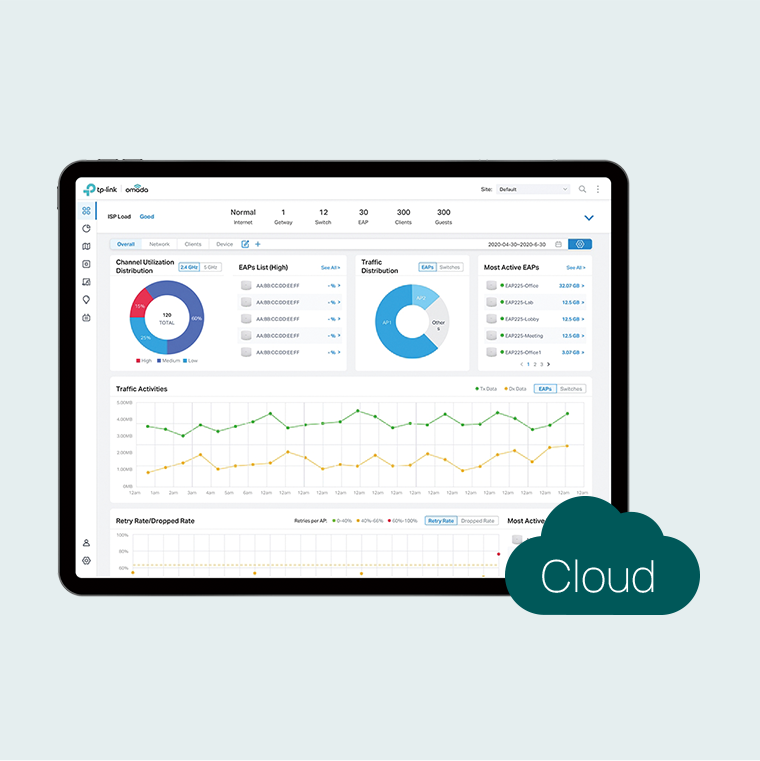

Centralized Management
Easy configuration of multi-site networks without the need to dispatch a technician for on-site setup. Manage remotely using the Omada App or web interface, which offer a free Essentials version of cloud services, lowering maintenance costs for MSP/SI.

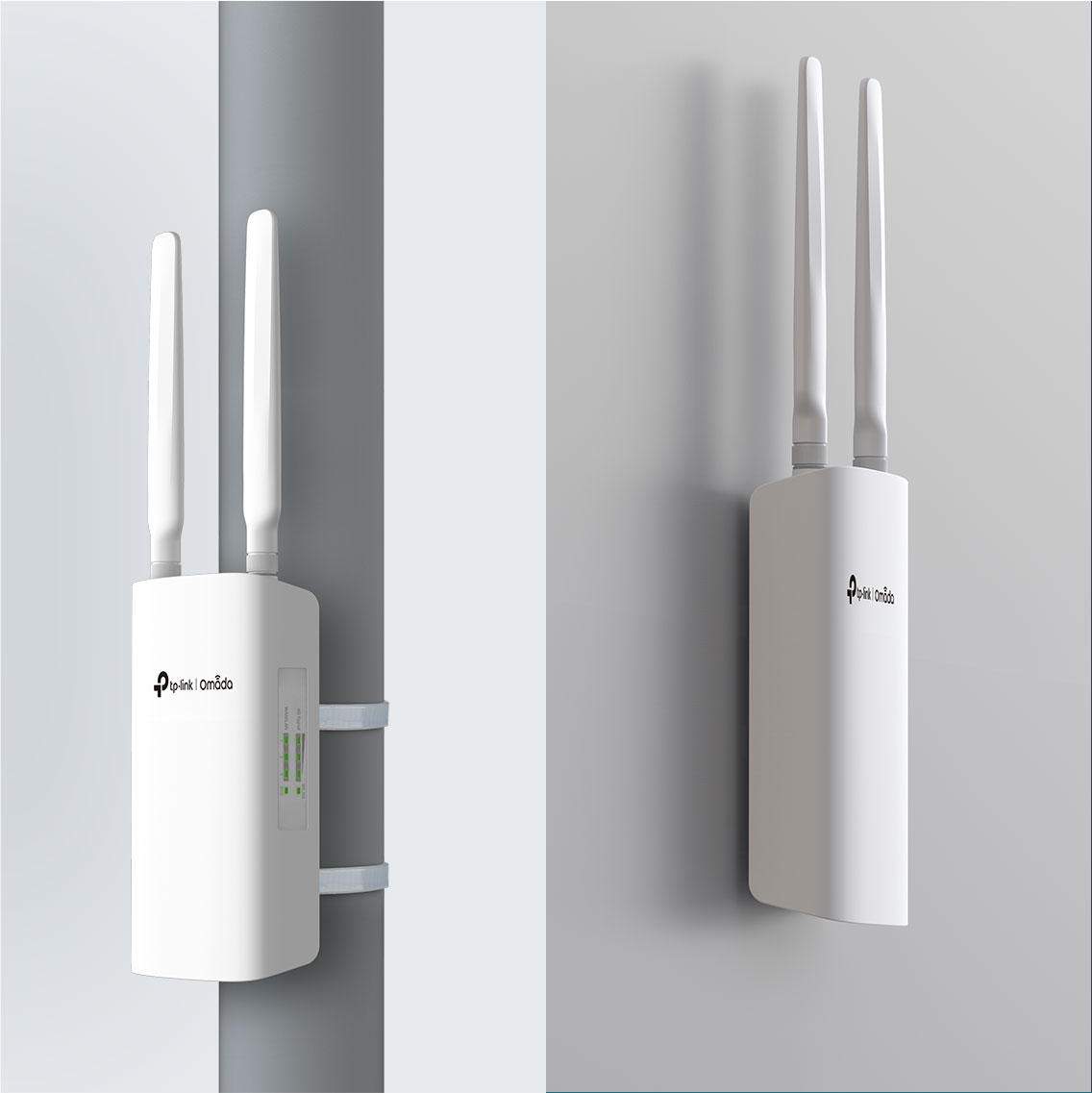

Simple Installation
Mount the device on a wall or pole using the included mounting kit. The compact design allows for flexible gateway placement.

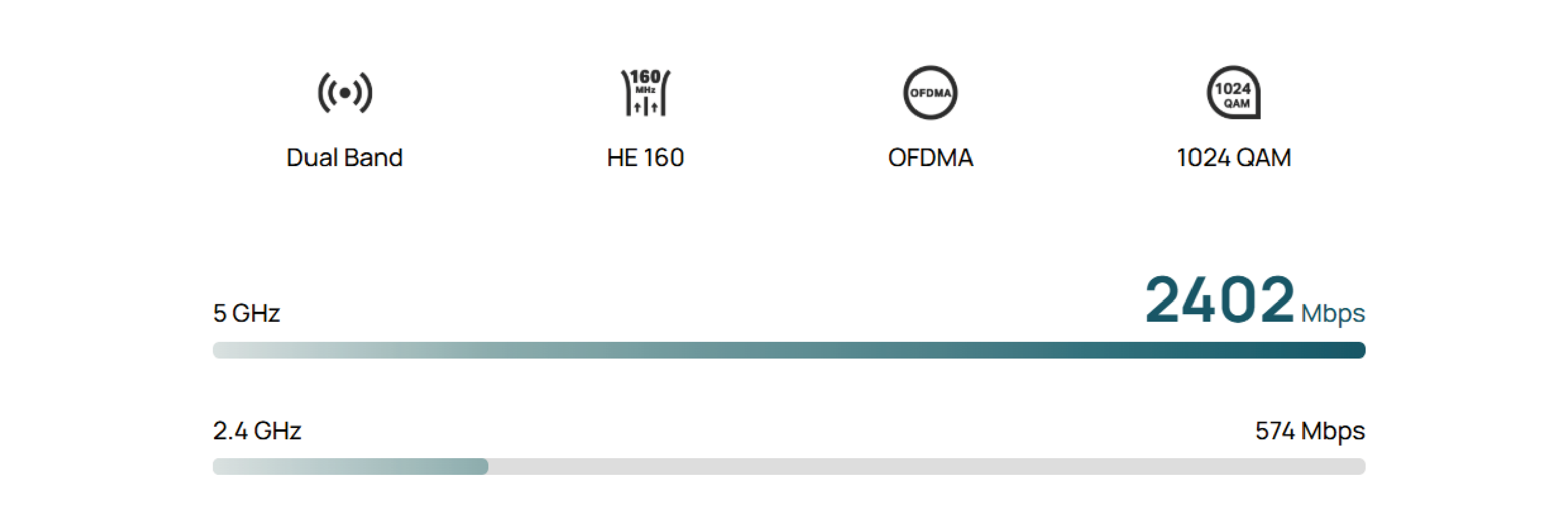

Always Online with Wi-Fi 6 AX3000

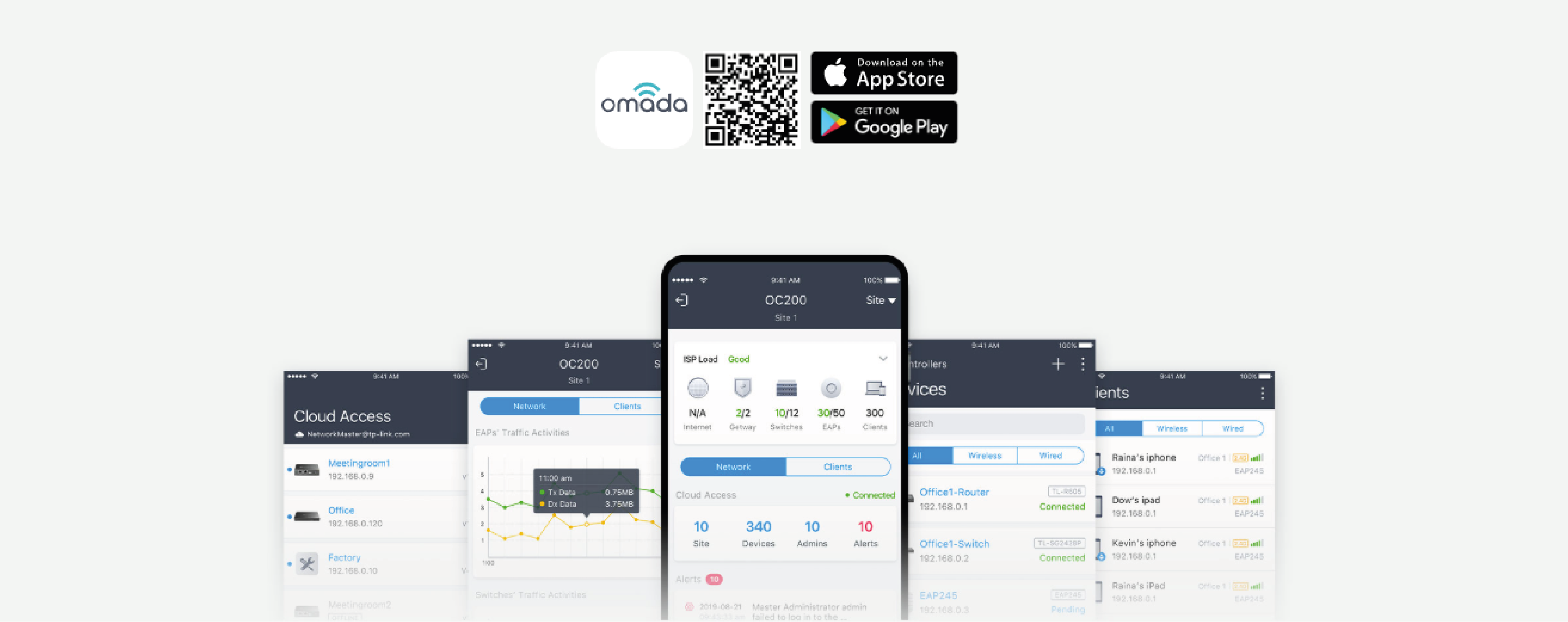

Easy Management via Omada App
Remotely manage your access points, switches, and gateways across multiple locations.
All possible from a single interface..
Specification
| TP-Link ER703WP-4G-Outdoor | |
| 4G | |
|---|---|
| Network Type |
Bands: Band Aggregation: |
| SIM Card Size | 2 nano SIM card slots (4G+ Cat6) |
| Frequency/Speed | Downlink: 300 Mb/s Uplink: 50 Mb/s |
| Transmission Security | |
| DPI | Application Control via DPI / updated Application Library |
| IDS/IPS | IPS/IDS threat detection based on signatures |
| Access Control | Access Control based on Source/Destination IP Address |
| Filtering | WEB Group Filtering URL Filtering Network Security |
| ARP Attack Protection | Sending GARP Packets ARP Scanning† IP and MAC Address Binding |
| Network Attack Protection | TCP/UDP/ICMP Flood Defense Blocking of TCP Scanning (Stealth FIN/Xmas/Null) Blocking of ping packets from the WAN |
| Hardware Features | |
| Ports | 1 Gigabit RJ45 WAN Port (**PoE In** 802.3at/af) 1 Gigabit RJ45 WAN/LAN Port (**PoE Out** 802.3af) 1 Gigabit RJ45 LAN Port (**PoE Out** 802.3af) |
| Network Cabling | 10BASE-T: UTP cable Category 3, 4, 5 (Max. 100 m) EIA/TIA-568 100Ω STP (Max. 100 m) 100BASE-TX: UTP cable Category 5, 5e (Max. 100 m) EIA/TIA-568 100Ω STP (Max. 100 m) 1000BASE-T: UTP cable Category 5, 5e, 6 (Max. 100 m) |
| Buttons | Reset |
| Power Supply | **PoE In** (802.3at/af) or DC **2 ports with PoE output** (802.3af) Total PoE Power Budget **20W** |
| Wi-Fi Frequency & Transfer Rate | 2.4 GHz: 574 Mb/s 5 GHz: 2402 Mb/s (HE160) |
| Flash Memory | 256 MB NAND |
| DRAM Memory | 512 MB DDR4 |
| LED Indicators | SYS, WLAN, LTE1, LTE2, PoE, LTE Signal Strength, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act, PoE) |
| Dimensions (W x D x H) | (Please check specific dimensions - typically smaller/different for outdoor unit) (Antenna dimensions are not included) |
| Antennas | Wi-Fi: 3 detachable, dual-band (5GHz gain 5.5dBi, 2.4GHz gain 4.5dBi) LTE: 2 detachable (4.0dBi gain) |
| Ingress Protection Rating | **IP55** |
| Mounting | Wall-mountable Pole-mountable |
| Max. Power Consumption | Maximum **30.8W** with PoE Out (Typical value) Maximum **10.8W** without PoE Out (Typical value) |
| Performance | |
| IPS Throughput | TCP: 229 Mb/s UDP: 188 Mb/s |
| DPI Throughput | TCP: 933 Mb/s UDP: 927 Mb/s |
| GRE | Unencrypted: 545.3 Mb/s Encrypted: 282.6 Mb/s |
| WireGuard VPN | 387.7 Mb/s |
| Concurrent Sessions | 150,000 |
| New Sessions per Second | 5,100 |
| NAT (Static IP) | 947.1 Mb/s / 940.1 Mb/s |
| NAT(DHCP) | 949.2 Mb/s / 941.1 Mb/s |
| NAT(PPPoE) | 942.6 Mb/s / 941.1 Mb/s |
| NAT (L2TP) | 875.4 Mb/s / 892.0 Mb/s |
| NAT (PPTP) | 881.2 Mb/s / 895.8 Mb/s |
| IPsec VPN Throughput | ESP-SHA1-AES256: 652.2 Mb/s ESP-SHA256-AES256: 654.4 Mb/s ESP-SHA384-AES256: 646.5 Mb/s ESP-SHA512-AES256: 670.5 Mb/s |
| OpenVPN | 115.5 Mb/s |
| L2TP VPN Throughput | Unencrypted: 990.0 Mb/s Encrypted: 475.0 Mb/s |
| PPTP VPN Throughput | Unencrypted: 1177.9 Mb/s Encrypted: 177.4 Mb/s |
| SSL VPN Throughput | 122.5 Mb/s |
| 66 Byte Packet Forwarding Rate | 1,453,489 p/s / 1,453,488 p/s |
| 1,518 Byte Packet Forwarding Rate | 81,274 p/s / 91,275 p/s |
| Wireless Transmission Properties | |
| Advanced Features | Seamless Roaming Mesh (with Mesh-supporting EAPs) OFDMA Beamforming MU-MIMO Rate Limit: SSID/Client-based Airtime Fairness Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise Multi SSID: 16 total (8 per band) |
| Guest Network Function | Yes |
| Basic Functions | |
| WAN Connection Type | Static IP Assignment Dynamic IP Assignment PPPoE (MRU configuration support) PPTP L2TP |
| MAC Address Cloning | WAN Address Modification |
| DHCP | DHCP Server DHCPv6 PD Server (Standalone Mode Only) DHCP Option Customization DHCP Address Reservation Multi-IP Interfaces* Multi-Net DHCP* |
| SMS | SMS Receiving / Sending |
| IPv6 | Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode |
| VLAN | 802.1Q VLAN |
| IPTV | IPTV |
| Advanced Functions | |
| Access Control Lists (ACL) | Filtering by IP/Port/Protocol/Domain Name |
| Advanced Routing | Static Routing Policy Routing RIP OSPF |
| Bandwidth Control | IP-based Bandwidth Control |
| Load Balancing | Intelligent Load Balancing Application Optimized Routing Backup Link (Time, Failover) Online Detection |
| NAT | One-to-One NAT Multi-Net NAT Virtual Servers Port Triggering† NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Session Limit | IP-based Session Limit |
| VPN Networks | |
| GRE | Standalone Mode Only |
| SSL VPN | 50 Tunnels |
| IPsec VPN | 100 IPsec VPN Tunnels LAN-to-LAN, Client-to-LAN 2 Negotiation Modes - Main/Aggressive Encryption DES, 3DES, AES128, AES192, AES256 IPsec Failover IKE v1/v2 Authentication MD5, SHA1, SHA2-384 and SHA2-512 NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| PPTP VPN | PPTP VPN Server 10 PPTP VPN Clients 50 Tunnels PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server 10 L2TP VPN Clients 50 Tunnels L2TP over IPSec |
| OpenVPN | OpenVPN Server 5 OpenVPN Clients 55 OpenVPN Tunnels "Certificate + Account" Mode Full Mode |
| WireGuard VPN | 20 Tunnels |
| Authentication | |
| Network Authentication | No Authentication Simple Password§ Hotspot (Local User§ / Voucher§ / SMS§ / Radius§) External Radius Server External Portal Server§ LDAP |
| Management | |
| Omada App | Yes |
| Centralized Management | Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller Omada Cloud-Based Controller |
| Cloud Access | Yes |
| Services | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, Custom DDNS) |
| Support | Web-based Management Remote Management Configuration Export and Import SNMP v1/v2c/v3 Diagnostics (Ping and Traceroute)† NTP Synchronization† Port Mirroring CLI (Standalone Mode Only) System Log Support |
| Zero-Touch Provisioning (ZTP) | Yes. Requires Omada Cloud-Based Controller. |
| Management Panel Features | Automatic Device Discovery Intelligent Network Status Monitoring Unusual Event Alerts Unified Configuration Process Restart Schedule Personalized Network Login Page |
| Other | |
| Package Contents | ER703WP-4G-Outdoor Power Adapter Quick Installation Guide **Mounting Kit** |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™, 7, 8, 8.1, 10, 11 MAC OS NetWare UNIX Linux |
| Environment | Operating Temperature: 0–40 ? (32–104 ?) Storage Temperature: -40–70 ? (-40–158 ?) Operating Humidity: 10–90%, non-condensing Storage Humidity: 5–90% non-condensing |
