Ubiquiti PoE Over 2-Wire Retrofit Extender

Ubiquiti PoE Over 2-Wire Retrofit Extender

Marca: Ubiquiti Networks

Código de producto: UQ-UACC-RETRO-POE-2W

Número de catálogo: 10571

Garantía (meses):

Precio

90,54 $

111,36 $ IVA incluido

favoriteAñadir a la lista de deseos

Descripción

Ethernet to Coaxial / Two-Wire Converter with PoE Support

The offered product is a device for converting Ethernet transmission to a coaxial or two-wire cable. Additionally, it supports PoE, allowing you to transfer not only data but also power. On the input side, it supports PoE++ (802.3 af/at/bt), while on the output side it provides PoE+ (802.3 af/at). The maximum output power is 25 W, and the device’s own power consumption is 3 W. The transmission distance, bandwidth, and output power largely depend on the quality of the cables used; approximate values can be found in the specification below.

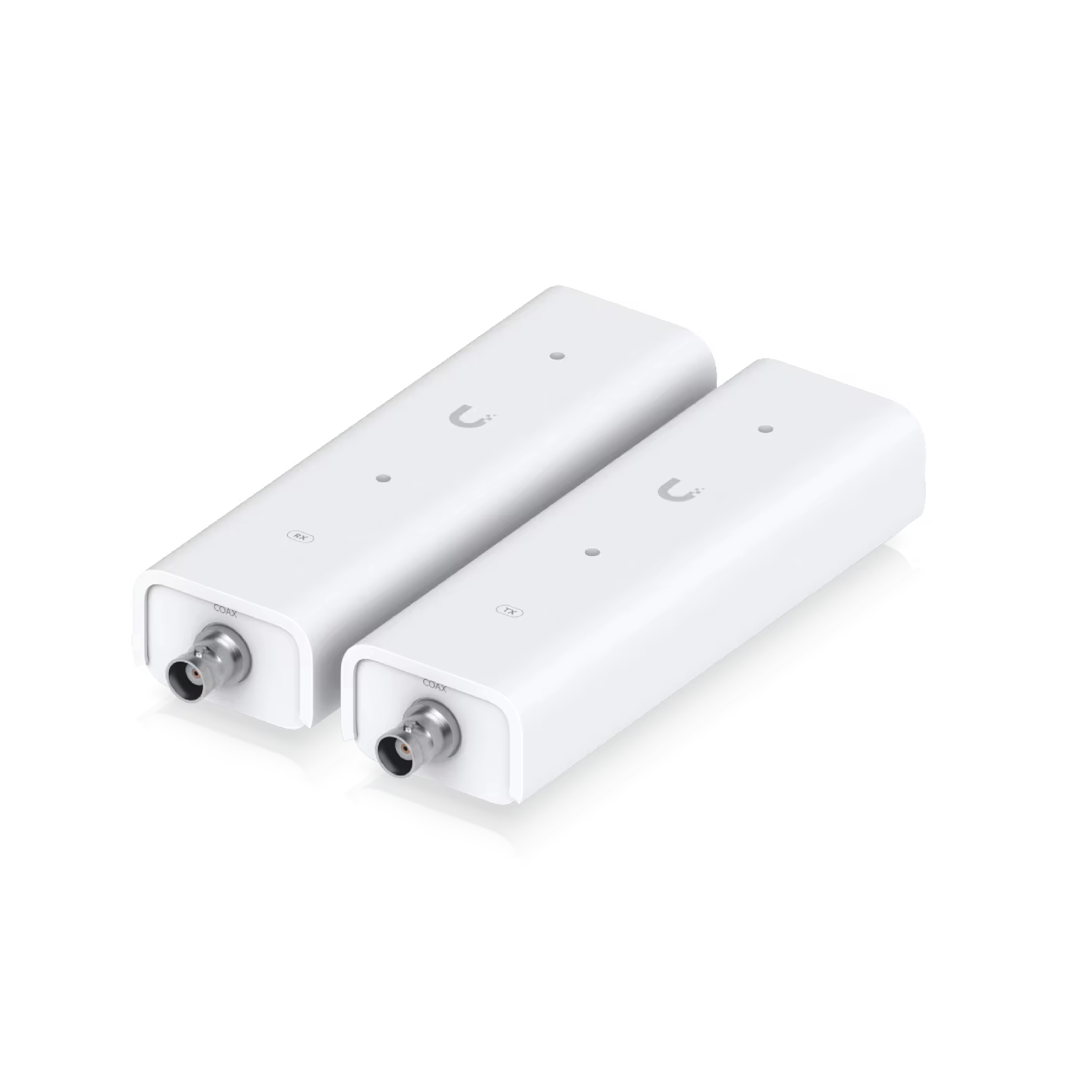

The converters feature connectors at the bottom designed for two-wire cable connections, and the set includes appropriate BNC adapters for connecting coaxial cables.

Specyfications

Mechanical Properties
Ubiquiti UACC-Retrofit-PoE-2Wire
Dimensions	PoE input/output: 40 × 105 × 25 mm (1.6 × 4.1 × 1") Adapter: 43.5 × 138 × 30 mm (1.7 × 5.4 × 1.2")
Weight	PoE input: 77 g (2.7 oz) PoE output: 79 g (2.8 oz) Adapter: 140 g (4.9 oz)
Enclosure material	Polycarbonate
Bracket material	Polycarbonate
Coaxial connector	Female BNC
Hardware Properties
Network interface	1 × Fast Ethernet port (10/100 Mbps) 1 × HomePlug AV connector
Power supply:	PoE++ (802.3 af/at/bt)
PoE input	PoE++ (802.3 af/at/bt), 50 V DC, 1.2 A
PoE output	PoE+ (802.3 af/at), 48 V DC, 0,6 A
Maximum power consumption	3 W (device only – without PoE output)
ESD/EMP protection (electrostatic discharge / electromagnetic pulse)	Air discharge: ± 8 kV Contact discharge: ± 4 kV
Recommended Cable Lengths	UTP 24AWG (0.18 Ω/m) 50 m: 85 Mbps, 25 W 100 m: 85 Mbps, 13 W 150 m: 85 Mbps, 9 W 200 m: 85 Mbps, 6 W 250 m: 80 Mbps, 4 W 300 m: 75 Mbps, 3 W 350 m: 70 Mbps, 0 W 400 m: 65 Mbps, 0 W 450 m: 60 Mbps, 0 W 500 m: 55 Mbps, 0 W 550 m: 50 Mbps, 0 W 600–750 m: — RG-6 coaxial cable (0.15 Ω/m) 50 m: 85 Mbps, 25 W 100 m: 85 Mbps, 20 W 150 m: 85 Mbps, 13 W 200 m: 85 Mbps, 9 W 250 m: 85 Mbps, 7 W 300 m: 85 Mbps, 6 W 350 m: 85 Mbps, 4 W 400 m: 82 Mbps, 3 W 450 m: 80 Mbps, 0 W 500 m: 75 Mbps, 0 W 550 m: 70 Mbps, 0 W 600 m: 65 Mbps, 0 W 650 m: 60 Mbps, 0 W 700 m: 55 Mbps, 0 W 750 m: 50 Mbps, 0 W
LED indicators	White
Operating temperature	-10°C do 40°C
Operating humidity	5%–90% non-condensing
