ATTE ETH-ETH500-SET PoE Extender (800m), fast Ethernet

ATTE ETH-ETH500-SET PoE Extender (800m), fast Ethernet

Marca: ATTE

Código de producto: ATTE-ETH-ETH500-SET

Número de catálogo: 10512

Garantía (meses):

Precio

58,77 €

72,29 € IVA incluido

favoriteAñadir a la lista de deseos

Descripción

ATTE ETH-ETH500-SET is a PoE extender that allows increasing the range of Ethernet connection and power supply. It has fast Ethernet ports and supports a maximum throughput of 100 Mbps. The offered product will allow you to extend the range to: 250 m while maintaining 50 W power and 100 Mbps throughput, 500 m while maintaining 25 W power and 100 Mbps throughput, or 800 m while maintaining 15 W power and 10 Mbps throughput. The product does not have a housing and is mainly designed for installation in a box. When mounting outside buildings, make sure the box has a protection rating of at least IP44, and in case of direct exposure to water or dust, an even higher rating.

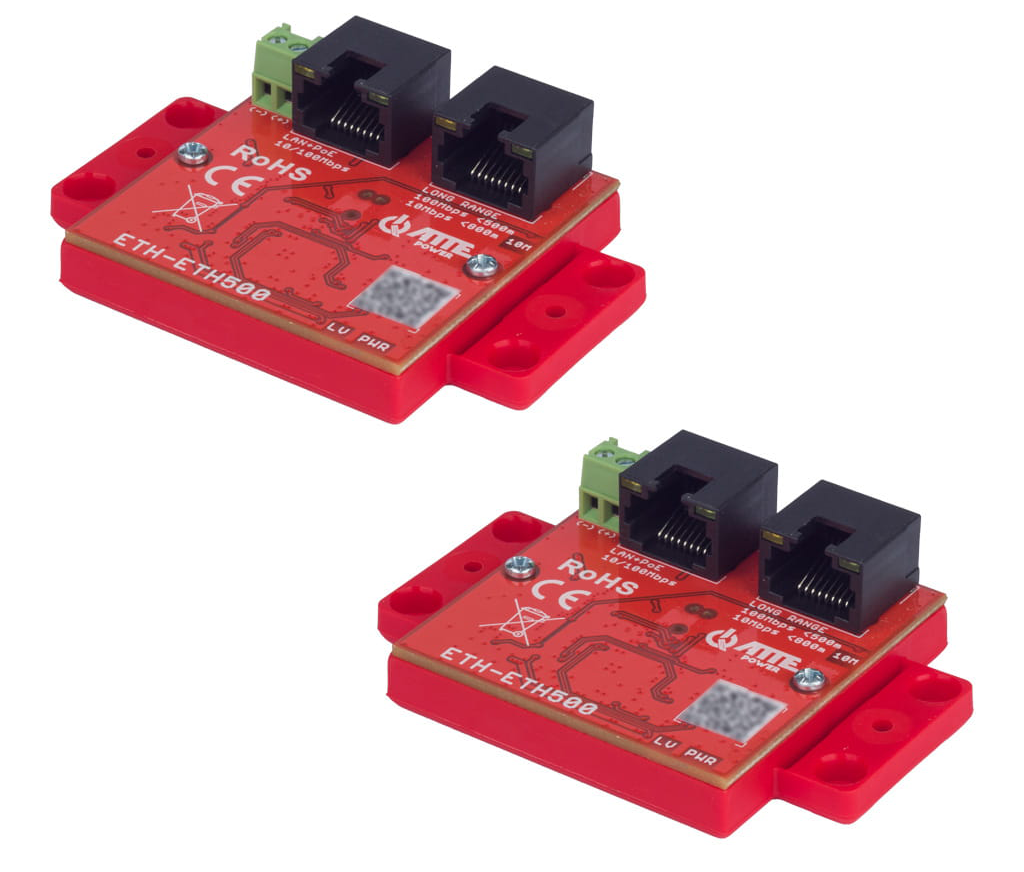

PoE Extender Set

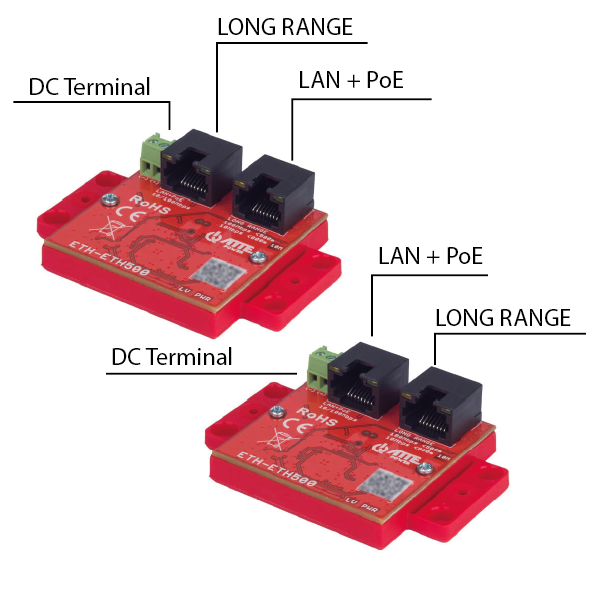

The offered product is a set consisting of two devices that extend the range of PoE transmission. Fast Ethernet ports are used, with a maximum connection throughput of 100 Mbps. The two devices should be connected to each other using the ports labeled "Long Range." The devices are universal, with no distinction between transmitter and receiver.

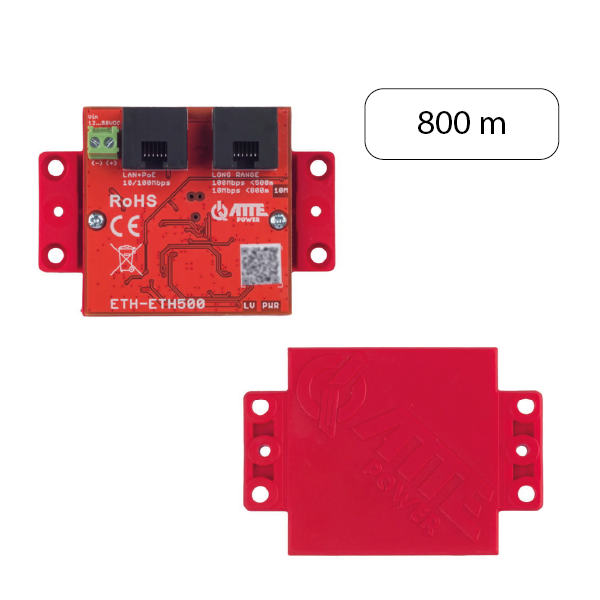

Range up to 800 m

Thanks to the use of two devices, the extender range (from one device to the other) can be up to 800 m! Depending on the connection length, the transmission varies in maximum power and throughput:

250 m: max. 50 W power and 100 Mbps
500 m: max. 25 W power and 100 Mbps
800 m: max. 15 W power and 10 Mbps

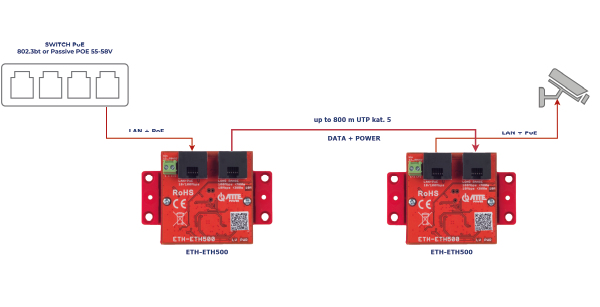

Application

The ETH-ETH500-SET is ideal wherever you need to extend the range of PoE transmission. Due to its high capabilities, the device is perfect for surveillance networks. At distances up to 250 m, it allows you to deliver 50 W of power — sufficient to connect a switch with a PoE input and power several IP cameras. This product enables significant cost reduction for the entire installation in locations where individual network elements are far apart.

Specifications

ATTE ETH-ETH500-SET
Ports quantity	4x PoE 2x screw terminal
PoE IN/OUT	LAN + PoE
Port type	Fast Ethernet 10/100 Mb/s
LAN Long Range ports	LAN + PoE LONG RANGE
Input voltage	PoE+ 802.3af/at: 44 - 58 V DC DC: 12 - 58 V DC
PoE output voltage	Same as input voltage
Power consumption	1,35 W (entire link)
Long Range cable length	<250 m - UTP 100 Mbps, max. 50 W PoE <500 m - UTP 100 Mbps, max. 25 W PoE <800 m - UTP 10 Mbps, max. 15 W PoE
LAN throughput indication	LED 10 Mb - LAN transmission on LONG RANGE path at 10 Mbps
Power indication	White LED - power presence
PoE indication	Yellow LED on port - PoE power presence
Transmission indication	Green LED on port - connection and data transmission on LAN path
Permissible operating temperature	-25° to 65°C
Dimensions	51(73) x 51 x 21 mm
Weight	0.026 kg
Protection rating	IP20
Housing design	Universal mouting base
