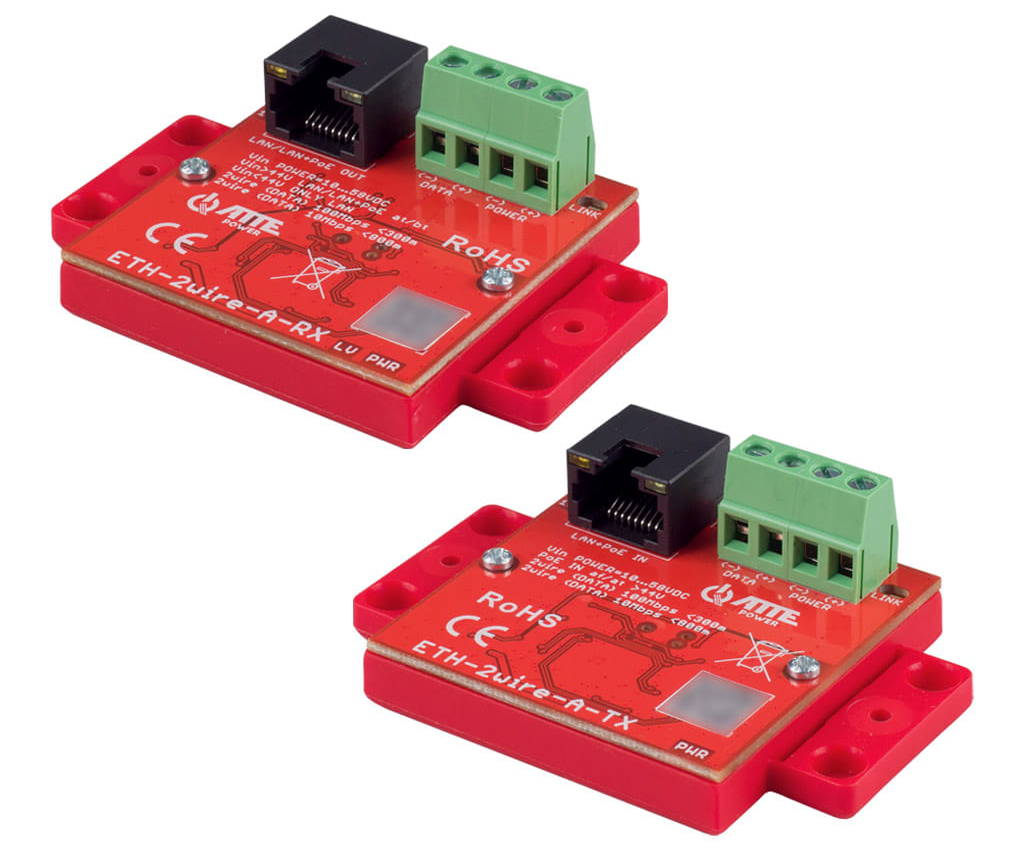

ATTE ETH-2wire-A-SET is a set designed for Ethernet + PoE transmission using 2-wire cabling. Both devices are active and require power at the input; they are equipped with fast Ethernet ports (10/100 Mb/s). The maximum transmission range is approximately 300 meters for 100 Mb/s throughput and up to 800 meters for 10 Mb/s. It's important to note that range and throughput largely depend on the quality of the cable used. This product is well-suited for many applications, allowing you to transmit data using a 2-wire cable, a single pair in a damaged Ethernet cable section, or even a telephone cable. The device supports PoE+ or passive PoE at the input. You can also power it using a standard power supply via a DC terminal (input voltage: 12–56 V DC).

PoE transmission kit over 2 wires

The offered product is a kit that enables Ethernet transmission using any two conductors of a cable. You can use any 2-wire cable, a single twisted pair from an Ethernet cable (e.g., in case of damage), or a telephone cable. Both data and power are transmitted via the two wires. The ETH-2wire-A-SET features fast Ethernet ports, so the maximum throughput is 100 Mb/s.

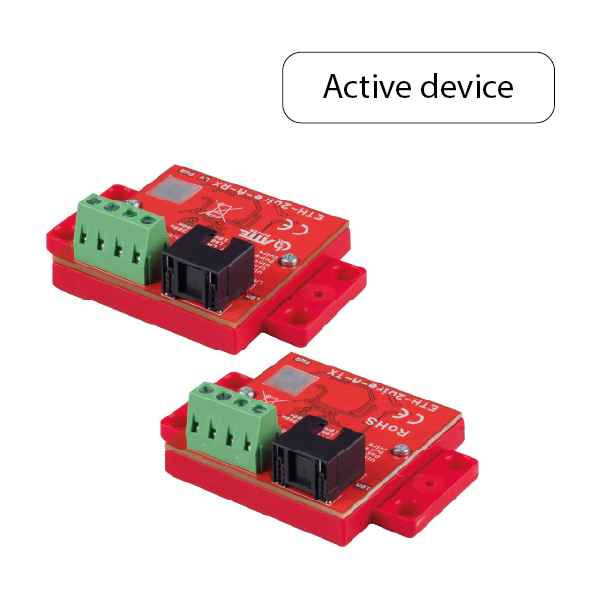

Active device

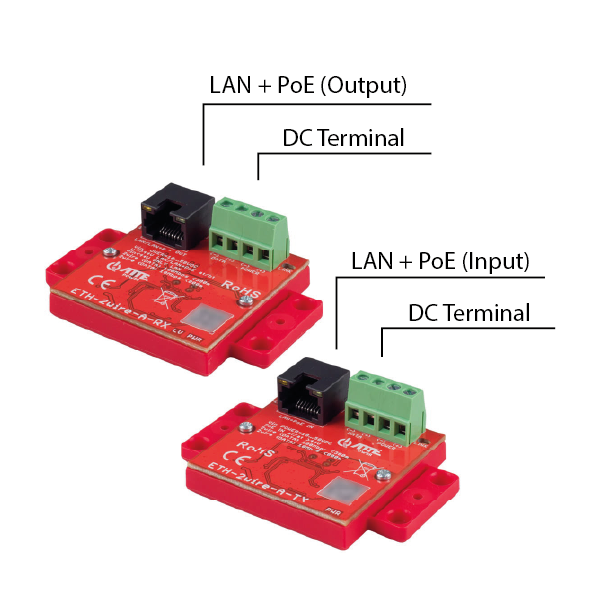

The device requires a power supply to operate. By default, it should be connected to a PoE port with available power, but this is not mandatory. Power can also be supplied via the DC terminal, with an input voltage range of 12–56 V DC. If you want to use PoE output, the input voltage must be above 44 V DC.

Range up to 800 m

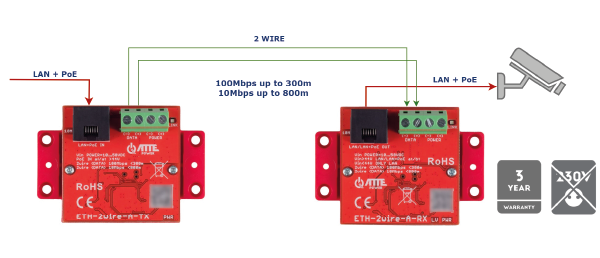

The maximum transmission range is 300 m at 100 Mb/s throughput or 800 m at 10 Mb/s throughput. The distances are specified for a single pair of UTP cable conductors and may vary depending on the type of cable used. Transmission speed is selected automatically based on connection stability.

Applications

The converter set is ideal for situations where you need to run Ethernet transmission using old cabling, especially in locations where laying new cables is difficult or even impossible. It facilitates replacing analog cameras with IP cameras, allows you to use a pair of wires from a damaged Ethernet cable, enables upgrading an intercom to an IP video intercom without having to lay new wiring, and supports data transmission over telephone cable.
