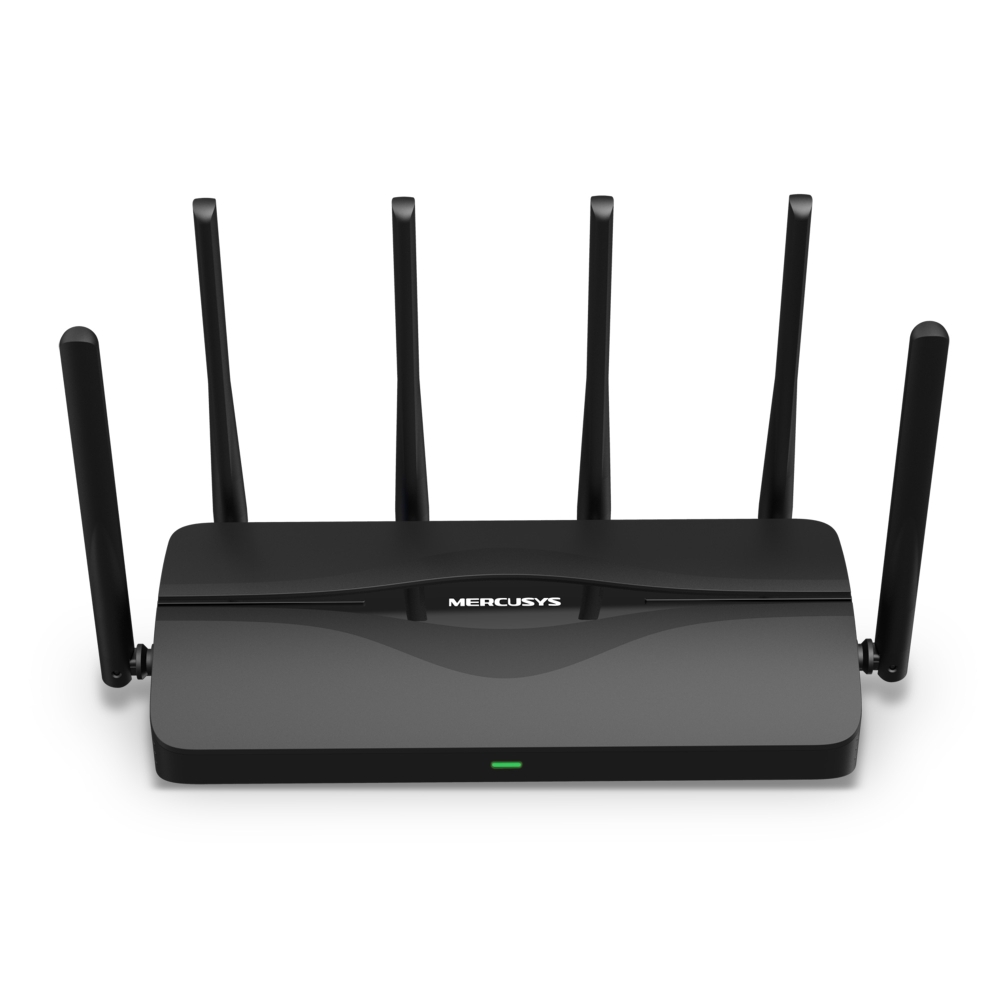

The Mercusys MR47BE is a wireless router that supports Wi-Fi 7 transmission. It utilizes the IEEE 802.11 b/g/n/ax protocols in the 2.4 GHz band, IEEE 802.11 a/n/ac/ax/be in the 5 GHz band, and IEEE 802.11 ax/be in the 6 GHz band. The maximum theoretical throughput is 574 Mbps in the 2.4 GHz band, 2880 Mbps in the 5 GHz band, and 5760 Mbps in the 6 GHz band. Wi-Fi 7 not only offers higher speeds but also introduces other important features, including MLO (Multi-Link Operation), which enables simultaneous transmission over more than one band, significantly improving network quality. In previous Wi-Fi generations, the user could only connect to the router on a single band, regardless of the number of bands the router supported. The device has four 2.5G Ethernet ports, including one WAN port and three LAN ports. The use of interfaces with bandwidth greater than 1 Gbps allows users to take full advantage of the capabilities offered by 7th generation Wi-Fi. An additional benefit is support for EasyMesh – by using this feature, you can create an extensive network consisting of multiple wireless devices. The EasyMesh standard is universal and supported by solutions from various manufacturers.
Wi-Fi 7 BE9300
The offered product is a wireless router designed for Wi-Fi 7 transmission. It uses IEEE 802.11 b/g/n/ax protocols in the 2.4 GHz band, IEEE 802.11 a/n/ac/ax/be in the 5 GHz band, and IEEE 802.11 ax/be in the 6 GHz band. The maximum theoretical throughput is 574 Mbps in the 2.4 GHz band, 2880 Mbps in the 5 GHz band, and 5760 Mbps in the 6 GHz band. The use of three bands allows for high connection speeds that will meet the expectations of even the most demanding users.

Upgrade Your Home Network
Seventh-generation Wi-Fi not only offers higher connection throughput but also introduces many other useful features. The 6 GHz band is much less congested compared to the 2.4 GHz and 5 GHz frequencies, allowing you to transmit using the full channel width without worrying about interference. The most important feature is MLO (Multi-Link Operation), which enables connections across multiple frequency bands simultaneously. In previous Wi-Fi generations, regardless of the number of supported bands, a client could only connect to the router on a single frequency. MLO significantly improves connection quality and makes it possible to achieve truly high speeds

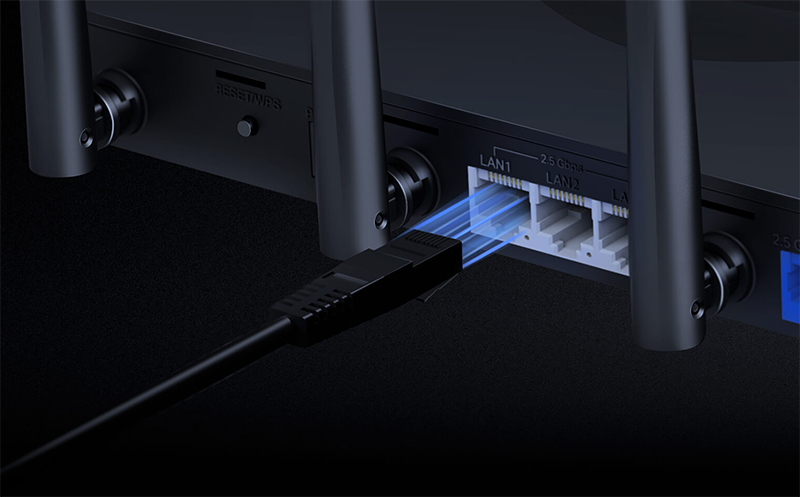

2.5G Ethernet Ports
The MR47BE is equipped with four 2.5G Ethernet ports, including one WAN port and three LAN ports. This allows you to take advantage of data plans exceeding 1 Gbps and ensures high-speed performance for your local network. The 2.5G ports also enable you to fully utilize the capabilities offered by Wi-Fi 7.

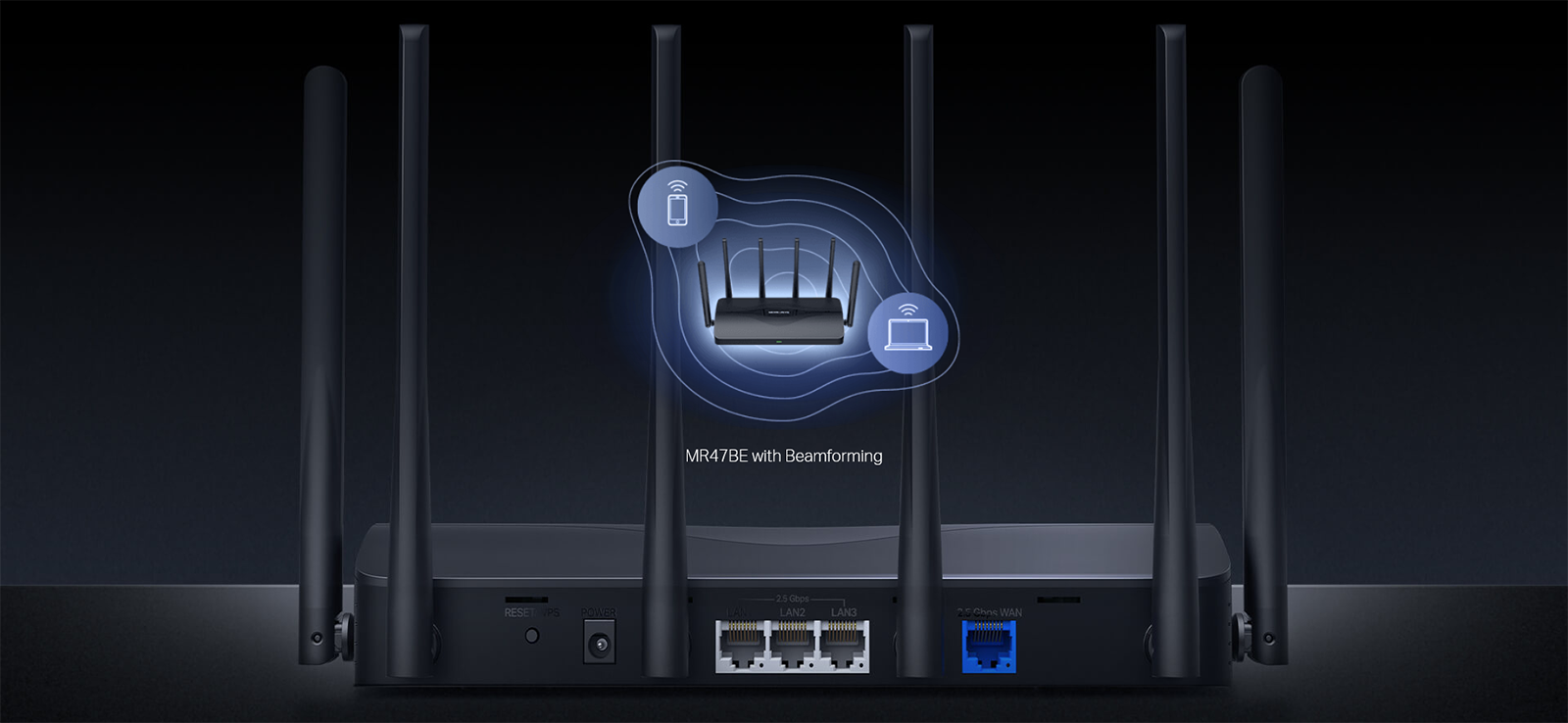

Wide Coverage
Six external omnidirectional antennas and integrated amplifiers ensure a wide coverage area for your wireless network. The Beamforming feature detects devices with weak signals and then focuses the connection toward them to provide stable and reliable connectivity.

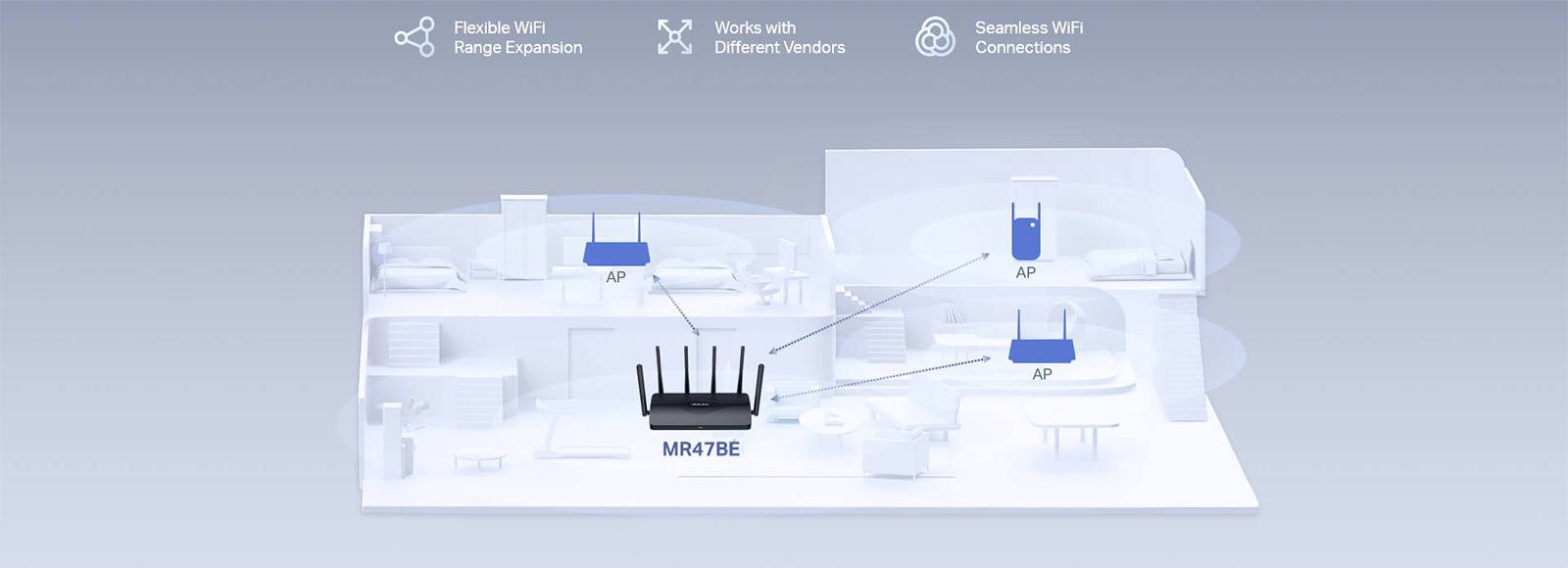

EasyMesh Support
The offered product supports the EasyMesh feature, allowing you to create an extensive wireless network in which routers and access points communicate with each other. Such a network appears under a single name to the user, regardless of the number of routers or access points used. The system automatically selects the best device for the client to connect to and seamlessly switches between access points as the user moves around. The EasyMesh standard is universal and supported by various manufacturers. This means you're not limited to using only Mercusys-branded devices.

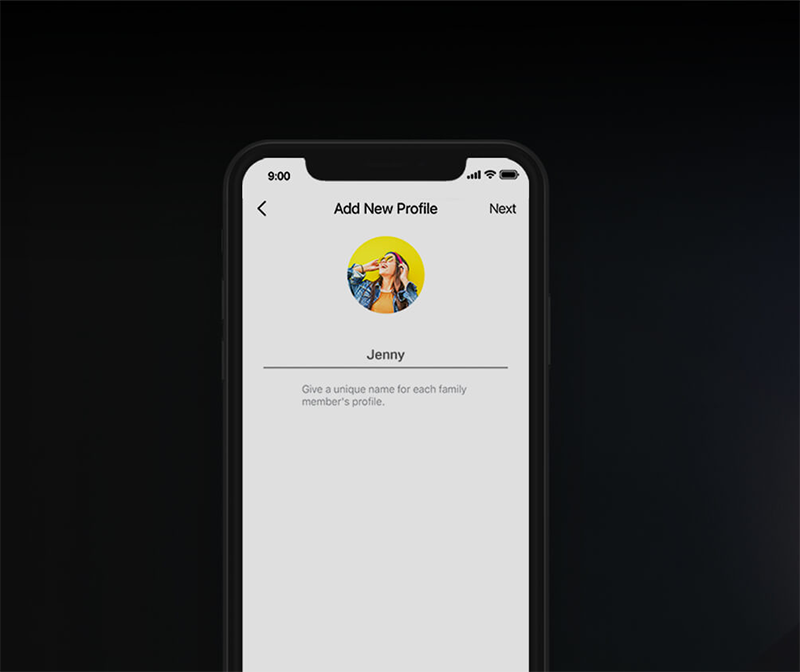

Parental Controls
The parental control feature allows you to create user profiles and assign specific devices to them. You can set daily or weekly online time limits and pause internet access when needed. Additionally, you can use a blacklist to block inappropriate websites.

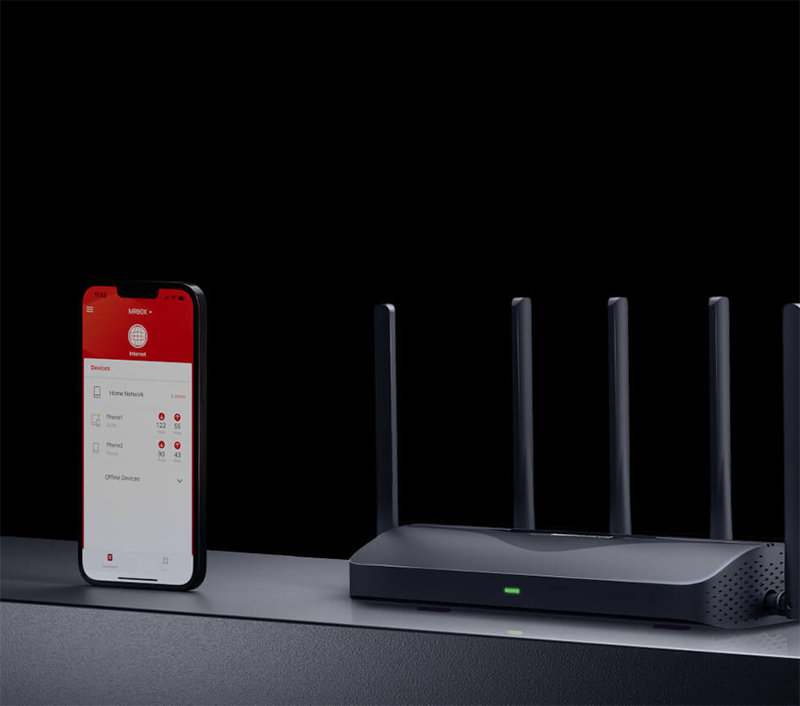

MERCUSYS App
The MERCUSYS app is available for mobile devices running Android and iOS. With it, you can fully configure your network—no computer needed. A smartphone is all it takes for the initial setup. The app greatly simplifies Wi-Fi management and allows you to monitor the router’s performance with ease. The software is user-friendly, making it easy even for inexperienced users to set up and manage their Wi-Fi network.

Specifications
Mercusys MR47BE | |
Wireless | |
---|---|
Wireless Standards |
2,4 GHz: IEEE 802.11 b/g/n/ax 5 GHz: IEEE 802.11 a/n/ac/ax/be 6 GHz: IEEE 802.11 ax/be |
Wi-Fi Speeds |
BE9300 2,4 GHz: 574 Mb/s (802.11ax) 5 GHz: 2880 Mb/s (802.11be) 6 GHz: 5760 Mb/s (802.11be) |
Wireless Security |
WPA-PSK/WPA2-PSK/WPA3-SAE |
Wireless Functions |
Multi-Link Operation (MLO) 320 MHz Channel 4K-QAM Multi-RUs |
Software | |
WAN Type |
Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
Management |
Access Control Local Management Remote Management |
DHCP | Server, DHCP Client List |
NAT Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
Firewall Security |
SPI Firewall, IP and MAC Address Binding |
Guest Network |
2.4 GHz Guest Network 5 GHz Guest Network 6 GHz Guest Network |
VPN Server |
OpenVPN/PPTP/L2TP/ WireGuard VPN Server and Clients |
Hardware | |
Dimensions |
(258 × 119 × 43,3 mm) (10,1 × 4,7 × 1,7 cali) |
Interfaces |
1× 2.5 Gbps WAN Port + 3× 2.5 Gbps LAN Ports |
Button |
Reset WPS |
Antenna Type |
6× Fixed Omni-Directional Antennas |
Others | |
Package Contents |
BE9300 Tri-Band Wi-Fi 7 Router MR47BE Power Adapter Quick Installation Guide RJ45 Ethernet Cable |
Operating Temperature | 0°C to 40°C |
Operating Humidity | 10%~90% Non-Condensing |
Storage Humidity | 5%~90% Non-Condensing |
