Uplink GP544RVX is a client terminal designed for GPON or EPON networks. By default, it works in both technologies, without the need to win additional software. There are 4 gigabit Ethernet ports (10/100/1000 Mbps), 1 telephone port (RJ11) and 1 USB port. The terminal enables wireless network transmission, supports the Wi-Fi 6 standard. It can operate in the 2.4 and 5 GHz bands simultaneously, in accordance with the IEEE 802.11 b/g/n/ax (2.4 GHz) and IEEE 802.11 a/n/ac/ax (5GHz). The maximum theoretical throughput of the connection is 1800 Mb/s - 574 Mb/s in 2.4 GHz and 1201 Mb/s in 5 GHz.
The device can work in the GPON or EPON network, the integrated laser power corresponds to the PX20+ (EPON) and B+ (GPON) standards. You don't need to win any additional software or make any special configuration - both modes are available right away! By default, ONT works in auto mode - it selects the type of WAN connection itself. You can manually set the GPON or EPON mode, you can find the switch in "Management" -> "More Manage" -> "Uplink Mode".
The terminal supports the modern Wi-Fi 6 standard, uses the IEEE 802.11 b/g/n/ax protocols in the 2.4 GHz band and IEEE 802.11 a/n/ac/ax in the 5 GHz band. The maximum theoretical Wi-Fi throughput is 574 Mb/s on the 2.4 GHz band and 1201 Mb/s on the 5 GHz band. Along with the new protocols, the GP544RVX also introduces support for MU-MIMO (transmit and receive data from multiple devices simultaneously), Beamforming (beamforming) and WPA3 encryption. Both Wi-Fi networks (2.4 and 5 GHz) are visible under one name, and the client device is connected to the band that will provide the best bandwidth at the moment.
The device has 4 external omnidirectional antennas with a gain of 5 dBi each. They provide a large transmission range and eliminate transmission dead zones. GP544RVX is a much better solution than terminals with built-in antennas.

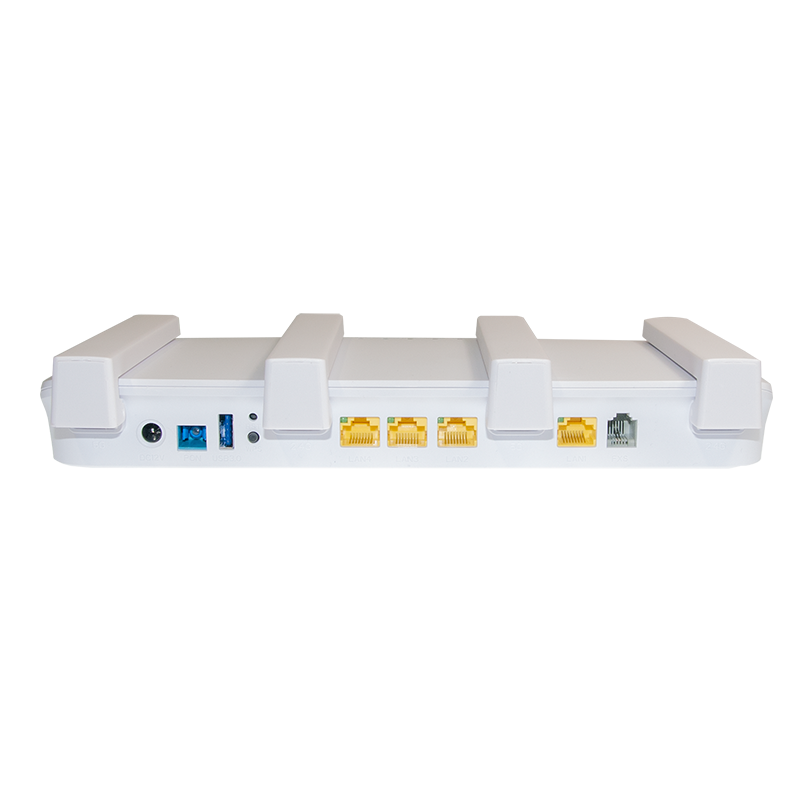

GP544RVX has 4 gigabit Ethernet ports (10/100/1000 Mbps), to which you can connect the most demanding devices, such as a computer, TV or console. No need to use an additional switch, 4 ports should be enough for home use. The phone port will allow you to use VoIP calls, and the USB port allows you to create a network drive or connect a printer. The device is powered via a DC socket with a voltage of 12 V. The maximum power consumption is 18 W, the set includes a 12 V / 1.5 A power adapter.
The offered product supports multicast transmission, including IGMP and MLD Snooping, and can be successfully used with IPTV. An additional advantage is the use of the TR-069 protocol, which facilitates automatic provisioning and makes GP544RVX easy to introduce into your network and unify with other solutions. The device will allow you to run triple play services, with Internet, IPTV and VoIP.
|Net weight||0,34 kg|
|Operating temperature||0 ~ +55°C|
|Operating humidity||5 ~ 90% (non-condensed)|
|Storage temperature||-30 ~ +60°C|
|Power adapter||DC 12V, 1.5A, external AC-DC power adaptor|
|Power consumption||18 W|
1x USB 3.0
1 PON port (EPON PX20+ and GPON Class B+)
4×GE, Auto-negotiation,RJ45 ports
4x 5dBi external antennas
|USB||1x USB 3.0 for Shared Storage/Printer|
|Internet connection||Support Routing Mode|
IGMP v1/v2/v3 Snooping
MLD v1/v2 Snooping
SIP and IMS SIP
Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz
802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN
DHCP Client / Server
Anti-DDOS, Filtering Based on ACL/MAC, /URL
