Converter DC/DC 48V/48V- 4.2A SD-200C-48

Converter DC/DC 48V/48V- 4.2A SD-200C-48

Marca: Mean Well

Código de producto: MW-SD-200C-48

Número de catálogo: 4158

Garantía (meses):

Converter DC/DC 48V/48V- 4.2A SD-200C-48.

Precio

64,27 €

79,05 € IVA incluido

favoriteAñadir a la lista de deseos

Descripción

DDC converter with 48V output voltage and wide input voltage range. Another feature of this converter is the complete separation of the input and output circuits. There is no galvanic connection between the ground of the input and output as is the case with typical converters.

Specification:

SD-200C-48
Output	Constant voltage	48 V
	Rated current	4,2 A
	Rated power	201,6 W
	Range	43 - 53 VDC
Input	Voltage range	36 - 72 VDC
	Efficiency	86%
	DC current	5A / 48V
	Inrush current	45A / 48 VDC
Working environment	Working temperature	From -20 to 60 °C
	Permissible humidity	20%-90% non-condensing
	Storage temperature	From -40 to 85 °C
	Permissible storage humidity	10%-90% non-condensing
	Vibes	10 - 500 Hz, 2G 10 min. / 1 cycle, 60 min.

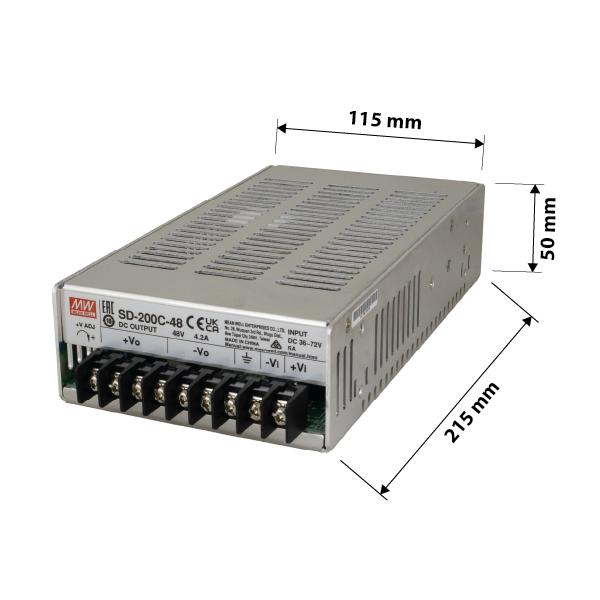

Others	Dimensions	215x115x50 mm
Others	Weight	1,1 kg
