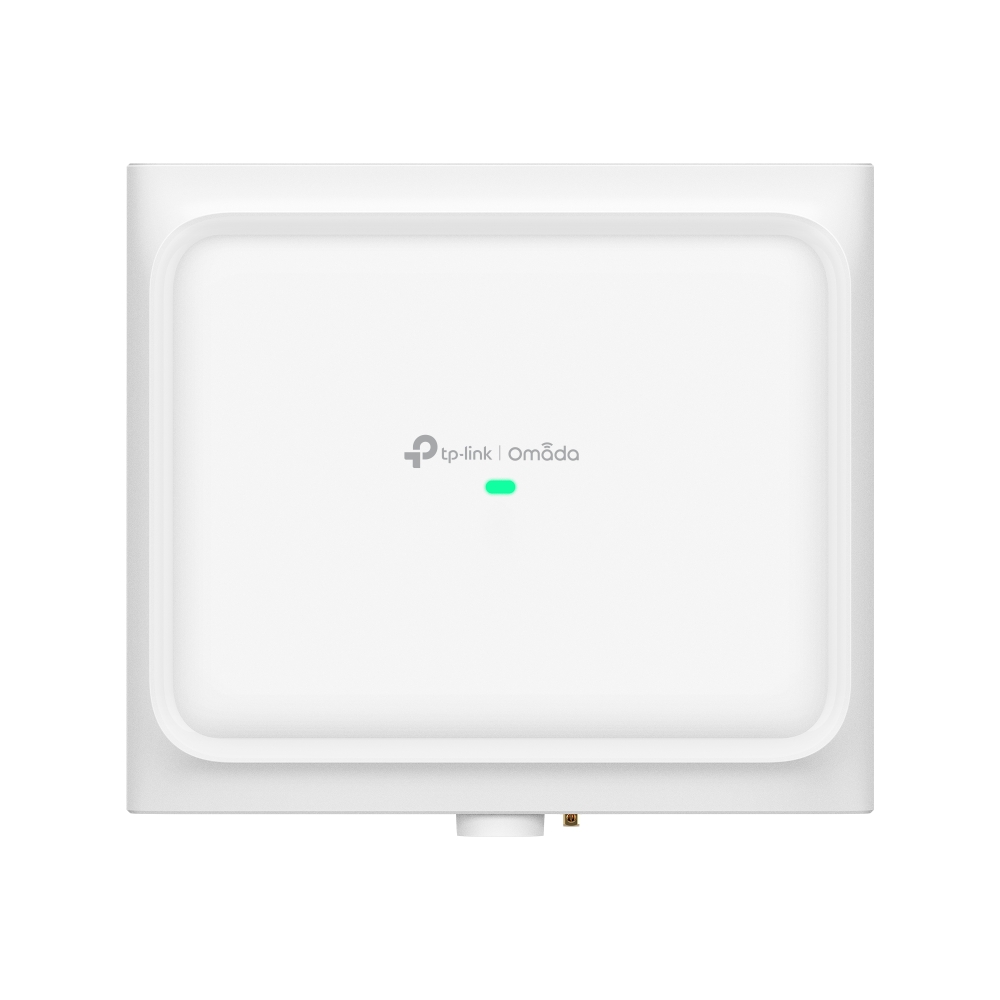

TP-Link EAP772-Outdoor is a tri-band Omada access point supporting the Wi-Fi 7 standard (IEEE 802.11be). It delivers a total throughput of up to 9300 Mbps – 1376 Mbps on 2.4 GHz, 4324 Mbps on 5 GHz, and 4324 Mbps on 6 GHz. Thanks to Wi-Fi 7 technology, it ensures high performance, low latency, and stable operation even with many users connected.
Equipped with omnidirectional antennas and a weatherproof enclosure (IP67), it is suitable for both indoor and outdoor environments. It can be mounted on walls, poles, or masts.
The access point features a 2.5G Ethernet port with PoE++ (802.3bt), with a maximum power consumption of 21.5 W. Integration with the Omada SDN platform enables centralized management, intelligent roaming, load balancing, and advanced security.
EAP772-Outdoor is a reliable and scalable solution for building modern Wi-Fi networks in demanding environments.

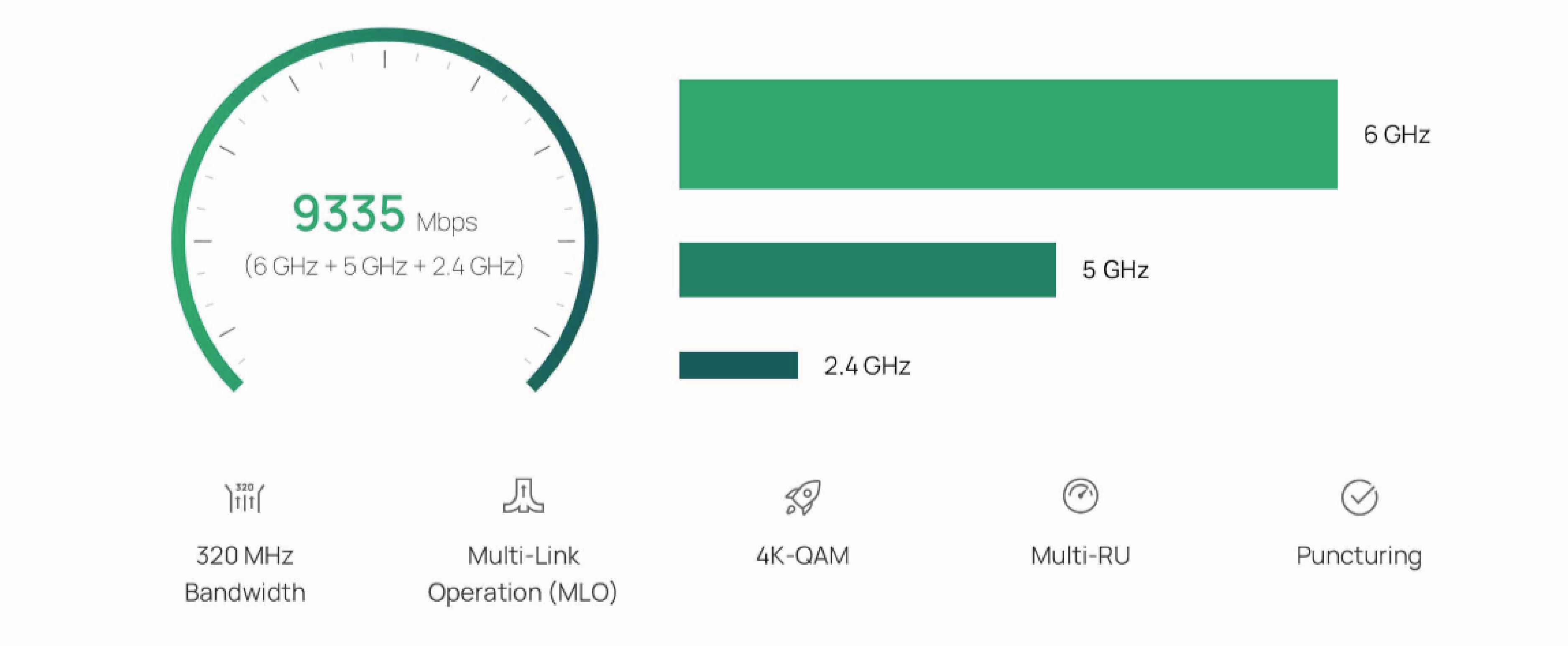

Next-Generation Tri-Band Wi-Fi 7 – Unprecedented Speed
The EAP772-Outdoor leverages the latest Wi-Fi 7 standard (IEEE 802.11be), delivering an impressive total throughput of up to 9300 Mbps: 1376 Mbps on 2.4 GHz, 4324 Mbps on 5 GHz, and 4324 Mbps on 6 GHz. With advanced technologies such as 320 MHz channels, 4096-QAM, and Multi-Link Operation (MLO), the device provides ultra-fast data transmission, minimal latency, and exceptional stability even with high user density. This ensures maximum performance in environments requiring fast and reliable connectivity.

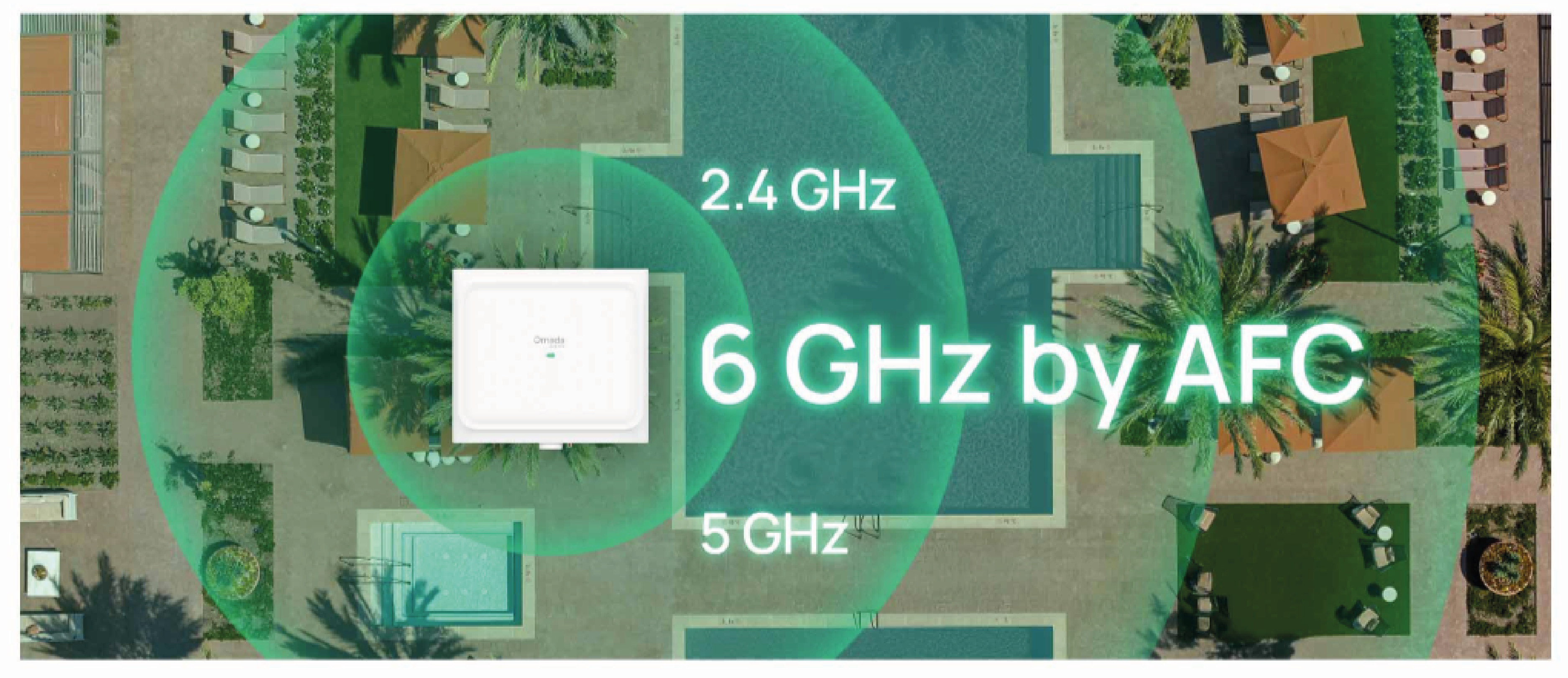

Tri-Band Omnidirectional 6 GHz Coverage Enabled by AFC
Unlock clean, outdoor 6 GHz spectrum — supported by AFC. The EAP772-Outdoor eliminates congestion and delivers tri-band omnidirectional coverage across 2.4 GHz, 5 GHz, and 6 GHz. Coverage of up to 300 m² ensures smooth network performance outdoors.

Ideal Wi-Fi Solution for Outdoor Environments

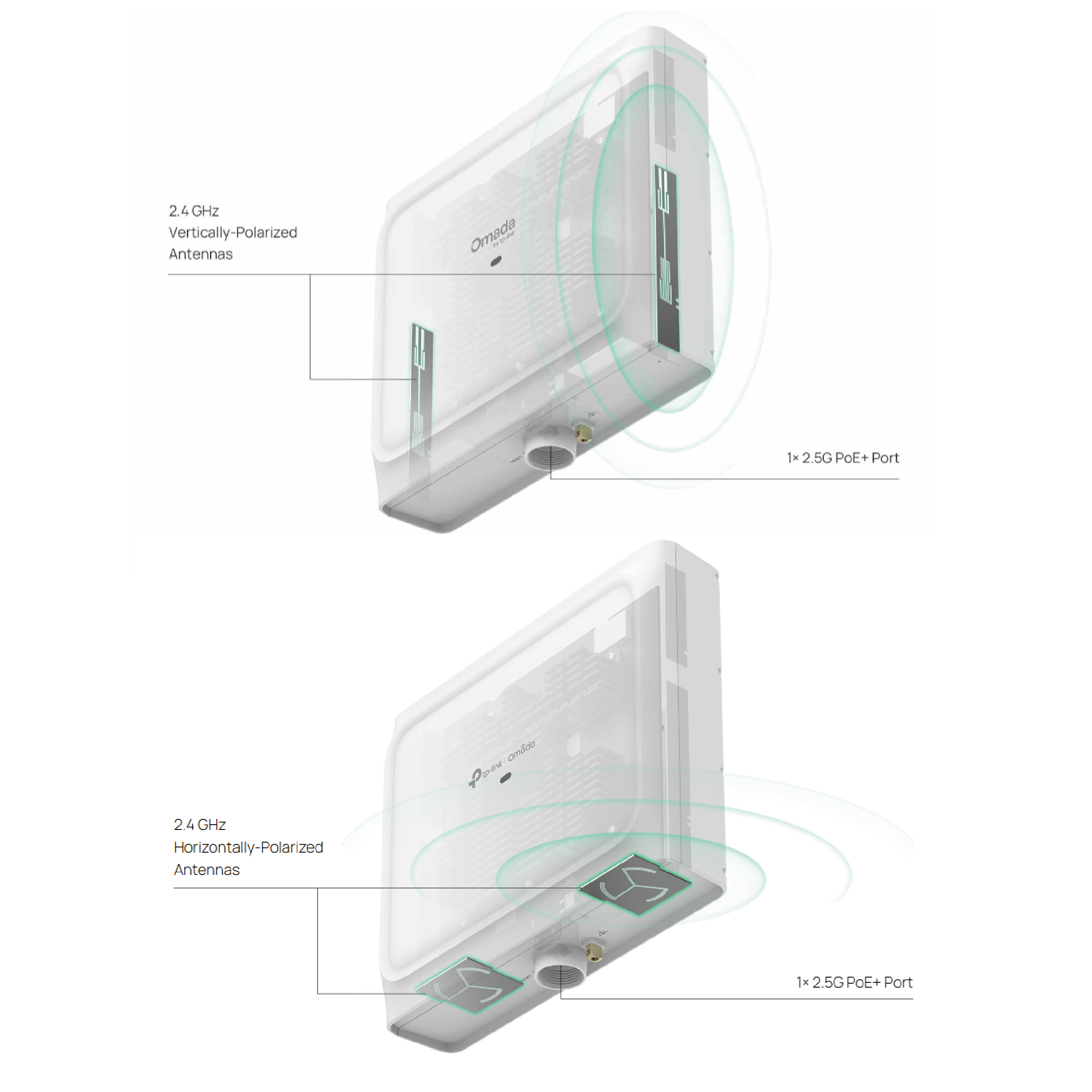

Professional Hardware Design
The EAP772-Outdoor is equipped with a 2.5G RJ45 port with PoE+ support, providing high data throughput for applications such as smooth live streaming and 4K video. Additionally, its dual-polarized 2.4 GHz antennas improve resistance to interference.
Industry-Leading IP68 Enclosure
The EAP772-Outdoor is completely dustproof and can be submerged in water up to 1.5 meters deep for 1 hour, exceeding IP67 standards. It is designed to withstand the harshest outdoor environmental conditions.

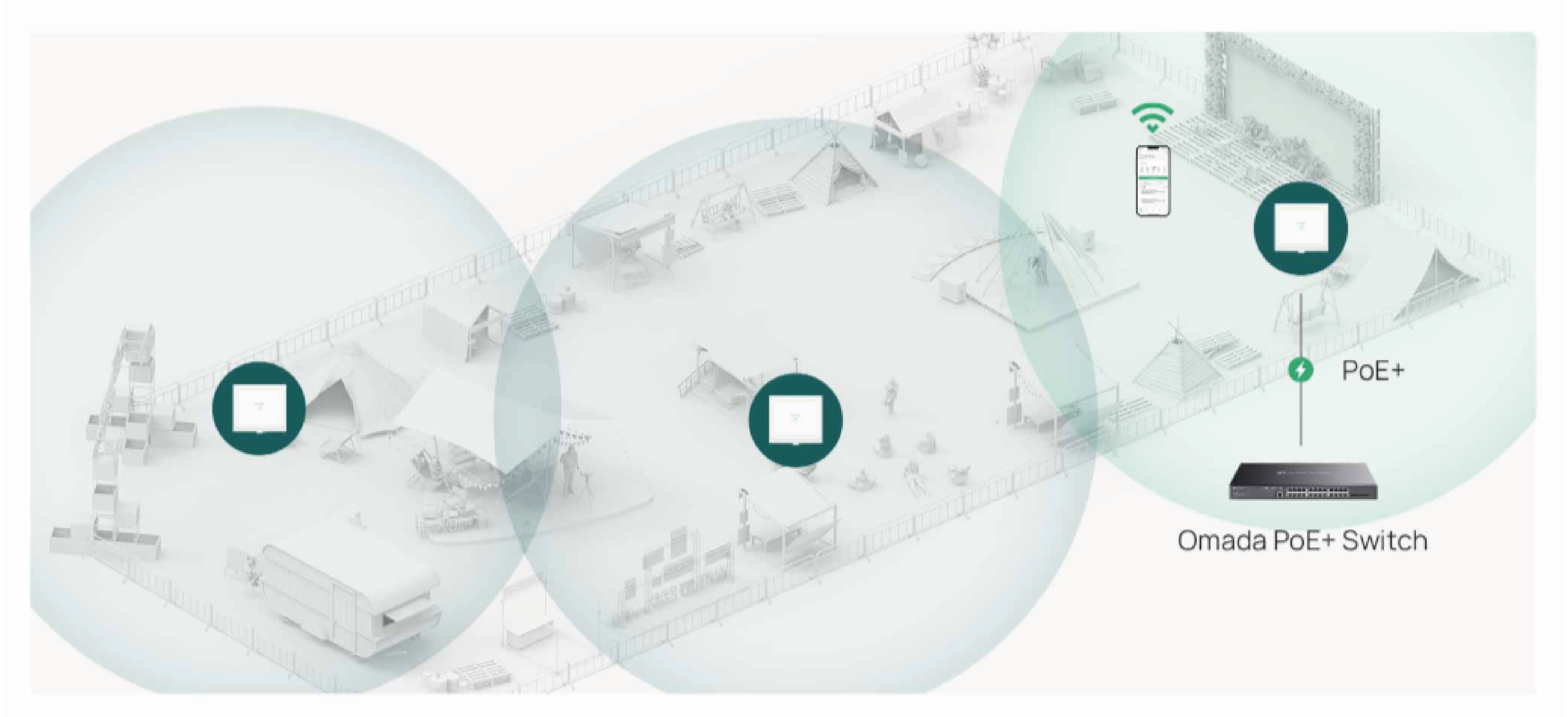

Seamless Mesh Connectivity with Roaming
Users can enjoy uninterrupted streaming while moving, thanks to automatic switching between access points providing the strongest signal.

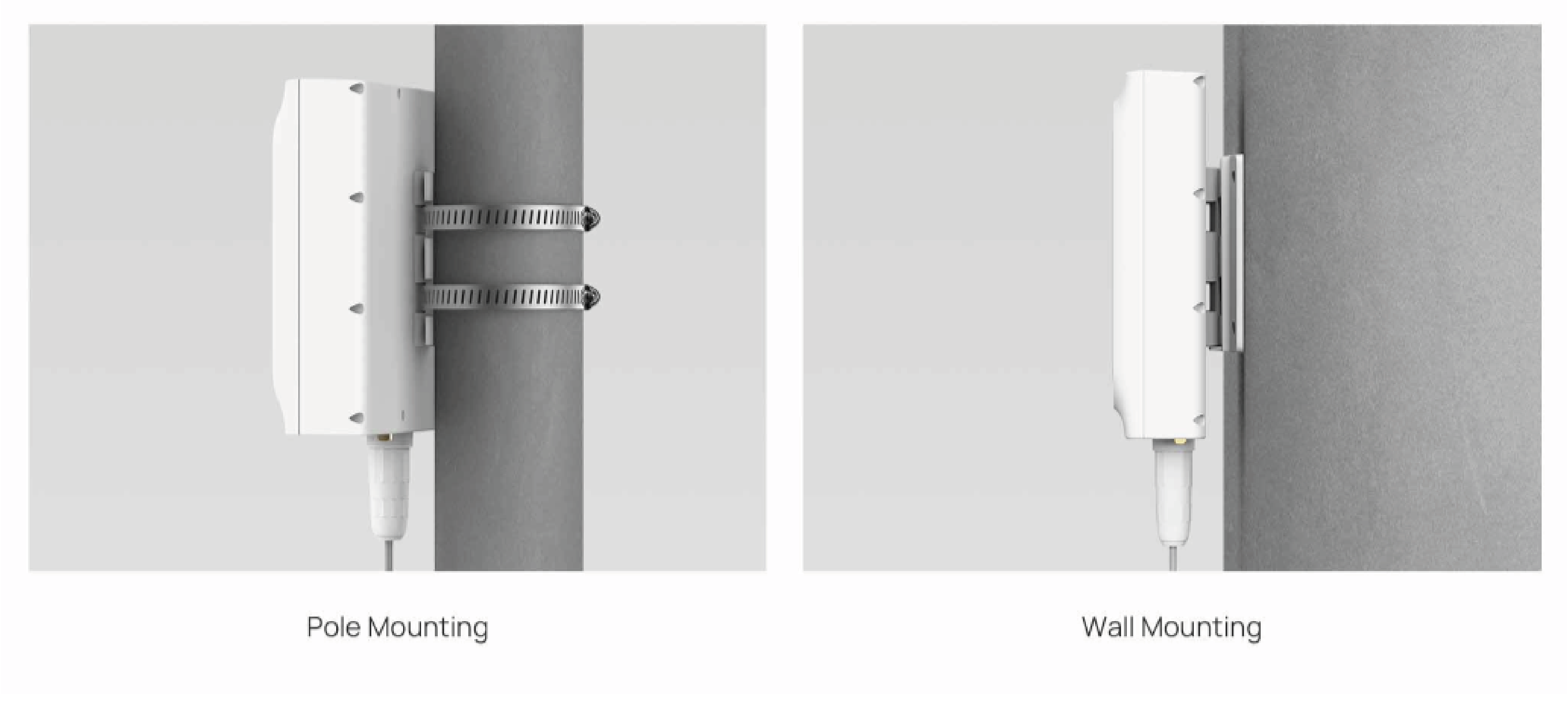

Easy and Quick Installation
The device can be mounted on a wall or pole.

One-Click Configuration in Omada SDN
Omada SDN allows users to quickly configure the EAP772-Outdoor with automatic device detection and one-click adoption.

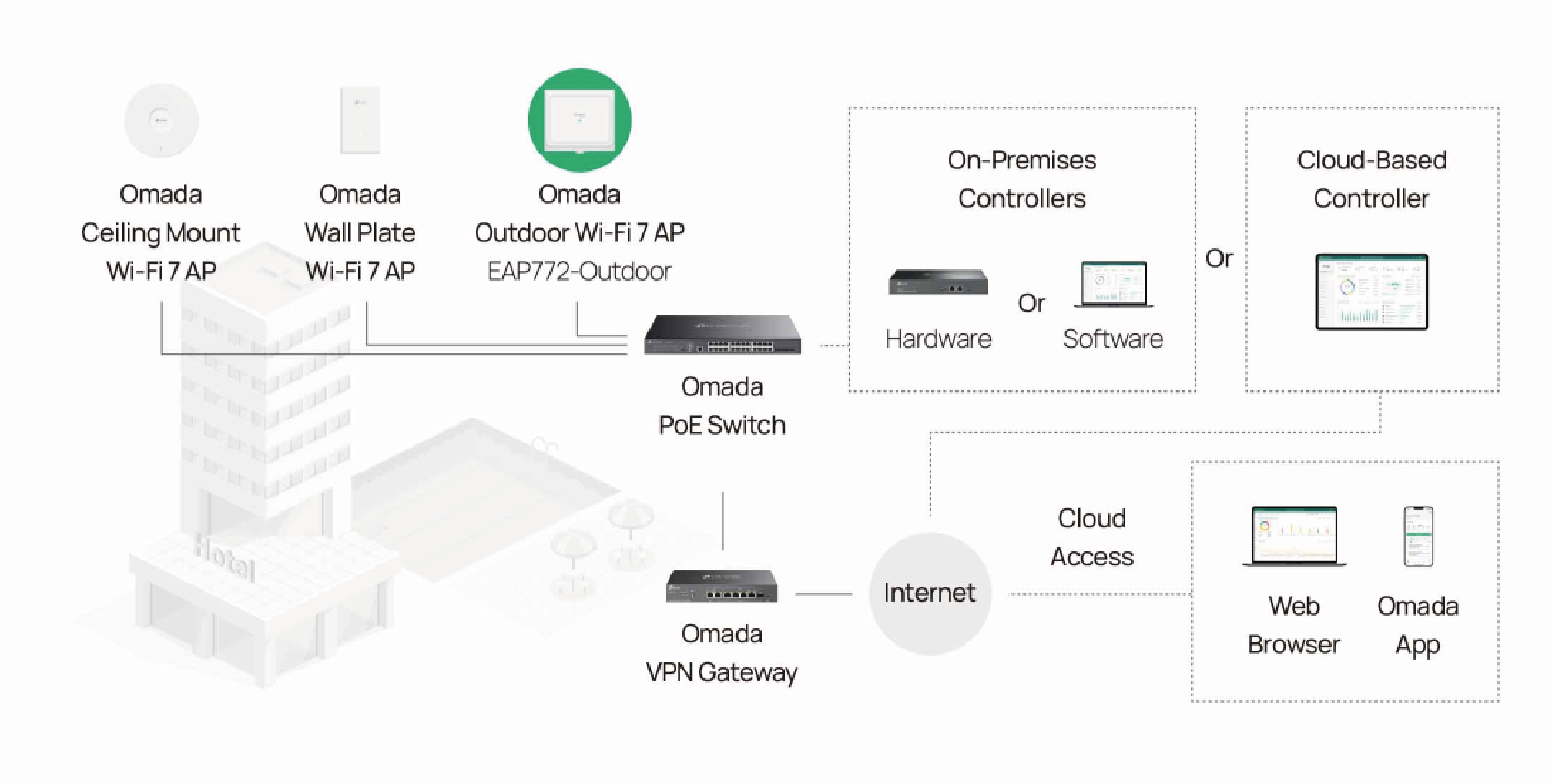

Reliable Omada SDN Solution for Business
The Omada Software-Defined Networking (SDN) solution seamlessly integrates access points, managed switches, and gateways, enabling 100% centralized cloud management and highly scalable networks.
Specifications
TP-Link EAP772-Outdoor | |
HARDWARE FEATURES | |
---|---|
Ports | 1 x 2.5G RJ45 Ethernet port (PoE 802.3at input supported) |
Buttons | Reset |
Power Supply | 802.3at PoE |
Power Consumption | 21.5W (via PoE) |
Dimensions (W x D x H) | 230 × 207.5 × 69.7 mm (9.1 × 8.2 × 2.8 in.) |
Antennas | 2.4 GHz: 2 × 4 dBi 5 GHz: 2 × 6 dBi 6 GHz: 2 × 6 dBi |
GNSS | L1 receiver (1575.42 MHz) supporting GPS, Galileo, GLONASS, and BeiDou Receiver sensitivity: -164dBm (tracking) GPS Antennas: Integrated omnidirectional 3dBi antennas |
Bluetooth | BLE 5.2 |
Weatherproof Enclosure | IP68 |
Mounting | Wall/pole mounting (kit included) |
WIRELESS TRANSMISSION FEATURES | |
Coverage | 300m2 (3,200ft2) Recommended Omnidirectional Coverage |
Concurrent Clients | 380+** |
Wireless Standards | IEEE 802.11be/ax/ac/n/g/b/a |
Frequency | 2.4 GHz, 5 GHz, and 6 GHz |
Signal Rate | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz)† |
Wireless Functions | 4K-QAM OFDMA Multi SSID: 24 (8 per band) Wireless radio on/off Auto channel selection Transmit power control (based on dBm) QoS (WMM) MU-MIMO MLO 320 MHz Omada Mesh§ Seamless Roaming (802.11k/v/r)§ Band steering Load balancing Airtime fairness Beamforming Rate limiting Reboot schedule Wireless schedule Wireless statistics by SSID/AP/Client Static/Dynamic IP |
Wireless Security | Captive portal authentication§ Access control Wireless MAC address filtering Wireless client isolation SSID to VLAN mapping Rogue AP detection 802.1X support Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE |
Transmit Power | CE: Indoor mode: < 20 dBm (2.4 GHz, EIRP), < 23 dBm (5 GHz band 1 and 2, EIRP), < 28 dBm (5 GHz band 3, EIRP), < 23 dBm (6 GHz, EIRP) Outdoor mode: < 20 dBm (2.4 GHz, EIRP), < 28 dBm (5 GHz band 3, EIRP) |
MANAGEMENT | |
Omada App | Yes |
Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
Cloud Access | Yes. Requires Omada Controller. |
Email Notifications | Yes |
Access Control via MAC | Yes |
SNMP | v1, v2c |
System Log | Yes |
SSH | Yes |
Web Management | Yes |
L3 Management | Yes |
Multi-site Management | Yes |
VLAN Management | Yes |
Zero-Touch Provisioning (ZTP) | Yes. Requires Omada Cloud-Based Controller. |
OTHERS | |
Package Contents | EAP772-Outdoor Sealing kit Mounting kit Installation guide |
System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
Operating Environment | Operating temperature: -30–70 ? (-22–158 ?) Storage temperature: -40–70 ? (-40–158 ?) Operating humidity: 10–90%, non-condensing Storage humidity: 5–90%, non-condensing |
